How to remove and replace the Starter for the 1.6 kW type on Toyota Yaris?

The first step to replace the 1.6 kW type Starter requires disconnecting the negative battery terminal cable. Start by removing the flywheel housing side cover through the claw disconnection method followed by upward pushing of the clamp. The starter assembly disassembly starts by removing the terminal cap followed by detach N30 terminal connection through its nut then disconnecting the connector before unscrewing the 2 bolts. You must install the starter assembly while tightening its two bolts to 37 N.m (377 kgf.cm, 27 ft.lbf). Secure terminal 30 using the nut by applying 9.8 N.m (100 kgf.cm, 87 in.lbf) torque and replace the terminal cap. Fit the side cover of the flywheel housing by inserting its protruding section into the cylinder block end before securing the 2 claws into position on the cylinder block until they create a clicking sound; replace deformed or misfitting claws with new ones for proper placement. Obtain the cable then fasten it to the negative battery terminal by applying 5.4 N.m (55 kgf.cm, 48 in.lbf) of torque.

How to Properly Install a Starter on Toyota Yaris?

Begin the starter assembly installation process of the 1NZ-FE engine with the 0.8 kW Type starter by using two bolts with torque set to 37 Nm (377 kgf-cm, 27 ft-lbf). After connecting the connector and nutting terminal 30 you should torque the nut to 9.8 Nm (87 in-lbf). Close the terminal cap afterward. The installation of the flywheel housing side cover requires using the protruding portion to enter the cylinder block end while pushing it forward until two claws lock into position with a distinct click sound; if the claws show loose fit or deformities, install new components. The cable needs to be attached to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) of torque.

OEM Toyota Yaris Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Starters found

View related parts
Toyota Yaris Starter Part Number: 28100-21022
$210.27 MSRP: $300.22
You Save: $89.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 0.8KW
- Replaces: 28100-21021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota Yaris | Base | 4 Cyl 1.5 L GAS
View related parts

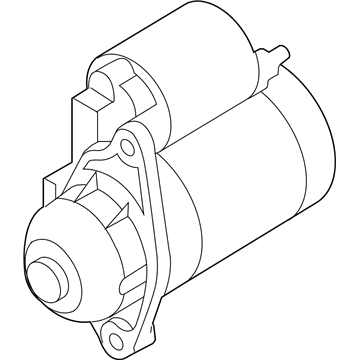

Toyota Yaris Starter Part Number: 28100-21140
$155.91 MSRP: $220.71
You Save: $64.80 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 1.0KW
- Replaces: 28100-21070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2018 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter Part Number: 28100-21063
$244.41 MSRP: $348.96
You Save: $104.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor; Alternators
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2018 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter Part Number: 28100-21020-84
$198.28 MSRP: $281.87
You Save: $83.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-21020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS
View related parts

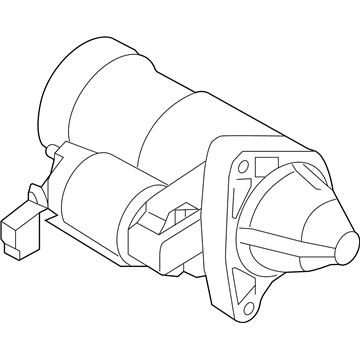

Toyota Yaris Starter Part Number: 28100-WB004
$298.90 MSRP: $426.76
You Save: $127.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-WB003, 28100-WB002, 28100-WB001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | L, LE, XLE | 4 Cyl 1.5 L GAS
View related parts

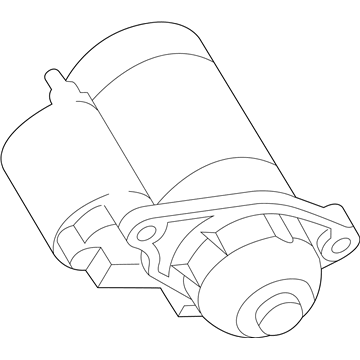

Toyota Yaris Starter Part Number: 28100-21062-84
$158.26 MSRP: $222.70
You Save: $64.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Replaces: 28100-21061, 28100-21062
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS

Toyota Yaris Starter

Choose genuine Starter that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Starter for your Toyota Yaris? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Yaris parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Yaris Starter transforms battery power into a moving force that cranks the engine to allow combustion to take place. It draws high current through heavy gauge wiring and has an external solenoid attached to the battery. A rotating armature is contained within a housing in the engine bay of a Toyota Yaris. When energized, an electromagnetic force pushes the armature and rotates the Starter drive. The drive gear is forced into the flywheel or flexplate by the solenoid and is set free by an overrunning clutch upon engine firing. Automatics have a neutral safety switch, whereas manuals have a clutch switch to avoid engaging any gear that has been chosen. A gear reduction layout can direct the armature movement through reduction gears to a drive, resulting in strong torque on a small unit. Regular voltage supply will make the Starter solenoid activate as rapidly as possible, and the Starter will disengage when the engine runs. All Toyota Yaris models rely on this synchronized electrical, magnetic and mechanical chain, and the long-term commitment of Toyota to Yaris reliability emphasizes the significance of accurate Starter functioning.

Toyota Yaris Starter Parts and Q&A

Starter
28100-21020-84
Q: How to remove and replace the Starter for the 1.6 kW type on Toyota Yaris?
A:
The first step to replace the 1.6 kW type Starter requires disconnecting the negative battery terminal cable. Start by removing the flywheel housing side cover through the claw disconnection method followed by upward pushing of the clamp. The starter assembly disassembly starts by removing the terminal cap followed by detach N30 terminal connection through its nut then disconnecting the connector before unscrewing the 2 bolts. You must install the starter assembly while tightening its two bolts to 37 N.m (377 kgf.cm, 27 ft.lbf). Secure terminal 30 using the nut by applying 9.8 N.m (100 kgf.cm, 87 in.lbf) torque and replace the terminal cap. Fit the side cover of the flywheel housing by inserting its protruding section into the cylinder block end before securing the 2 claws into position on the cylinder block until they create a clicking sound; replace deformed or misfitting claws with new ones for proper placement. Obtain the cable then fasten it to the negative battery terminal by applying 5.4 N.m (55 kgf.cm, 48 in.lbf) of torque.
Starter
28100-21062-84
Q: How to Properly Install a Starter on Toyota Yaris?
A:
Begin the starter assembly installation process of the 1NZ-FE engine with the 0.8 kW Type starter by using two bolts with torque set to 37 Nm (377 kgf-cm, 27 ft-lbf). After connecting the connector and nutting terminal 30 you should torque the nut to 9.8 Nm (87 in-lbf). Close the terminal cap afterward. The installation of the flywheel housing side cover requires using the protruding portion to enter the cylinder block end while pushing it forward until two claws lock into position with a distinct click sound; if the claws show loose fit or deformities, install new components. The cable needs to be attached to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) of torque.
