How to install the front crankshaft seal on Toyota Tacoma?

The installation process of the front crankshaft seal on a 2TR-FE engine requires application of MP grease on the lip of the new oil seal while ensuring the lip stays clean from foreign materials. Install the new oil seal using Special Service Tool: 09223-50010 until its surface reaches the same level as the timing chain cover edge. Keep the crankshaft angle uniform and remove all grease from the crankshaft. Place the crankshaft set key alongside the pulley key groove before sliding on the pulley. Fasten a temporary crankshaft pulley bolt to the crankshaft. Pursue the crankshaft pulley installation by using Special Service Tool: 09213-54015 91651-60855 to hold the pulley and torque the bolt to 260 Nm (2,651 kgf-cm, 192 ft-lbf). The crankshaft pulley bolt should not be reused. The bracket with bolt must be installed for vehicles with air conditioning and require fastening to 7.5 Nm (76 kgf-cm, 66 in-lbf). First, fit the fan shroud and install the radiator support to frame seal on the left-side and then add the engine coolant to perform a leak check on engine coolant and oil. Install the No. 1 engine under cover sub-assembly by using the 4 bolts for Pre Runner and 4WD models and secure them at 30 Nm (306 kgf-cm, 22 ft-lbf).

How to remove the front crankshaft seal on Toyota Tacoma?

A 2TR-FE engine front crankshaft seal requires the removal of four bolts that fix the No. 1 engine under cover. Remove engine coolant before you take off the radiator support to frame seal along with the fan shroud. The crankshaft pulley removal process begins with exiting the bolt then separating the air conditioning bracket if present. The front crankshaft seal removal requires the use of Special Service Tool 09213-54015 91651-60855 to gradually loosen the crankshaft pulley bolt until its thread penetration reaches 2 or 3. The installation of Special Service Tools 09950-50013 and 09951-05010 will enable you to remove the crankshaft pulley and its bolt. Use a cutter knife to cut off the lip of the timing gear case or timing chain case oil seal before you remove it using a tape-wrapped screwdriver. Remove the oil seal from the crankshaft then inspect it for damage before using sandpaper with 400-grit to smooth rough areas.

OEM Toyota Tacoma Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Crankshaft Seals found

View related parts

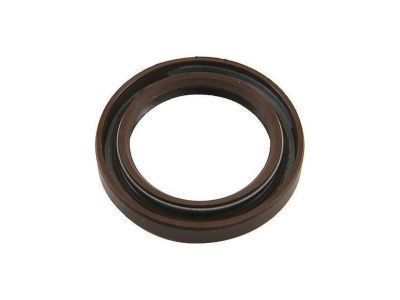

Toyota Tacoma Rear Main Seal
Part Number: 90311-A0027
$44.08 MSRP: $61.37
You Save: $17.29 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Oil Seal; Rear Seal; Front Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90080-31053, 90311-92003, 90311-92010, 90311-92004, 90311-92006, 90311-92009
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2022, 1995-2004 Toyota Tacoma | Base, DLX, Limited, Nightshade, Pre Runner, SR, SR5, S-Runner, Trail, TRD Off-Road, TRD Pro, TRD Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Tacoma Rear Main Seal
Part Number: 90311-A0006
$53.88 MSRP: $75.00
You Save: $21.12 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Engine Crankshaft Seal Kit; Crankshaft Seal Kit; Oil Seal Set; Crankshaft Seal; Rear Seal; Seal, Engine Rear Oil; Seal
- Manufacturer Note: (L)
- Replaces: 90311-99010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2015 Toyota Tacoma | Base, Pre Runner, TRD Pro, X-Runner | 6 Cyl 4.0 L GAS
View related parts
Toyota Tacoma Oil Seal, Front
Part Number: 90311-A0005
$19.11 MSRP: $26.60
You Save: $7.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Engine Crankshaft Seal
- Position: Front
- Replaces: 90311-42019, 90311-42007, 90311-42037, 90311-42036
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2015 Toyota Tacoma | Base, Pre Runner, TRD Pro, X-Runner | 6 Cyl 4.0 L GAS
View related parts
Toyota Tacoma Rear Main Seal
Part Number: 90311-88006
$39.78 MSRP: $55.37
You Save: $15.59 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90311-88004, 90311-88005, 90311-T0058
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2022 Toyota Tacoma | Base, Pre Runner, SR, SR5 | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS
View related parts
Toyota Tacoma Rear Main Seal
Part Number: 90311-88003
$34.76 MSRP: $48.39
You Save: $13.63 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Timing Cover Gasket; Timing Cover Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Replaces: 90311-88001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | Base, DLX, Pre Runner, SR5 | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS
View related parts
Toyota Tacoma Crankshaft Seal, Front
Part Number: 90311-48031
$17.08 MSRP: $23.77
You Save: $6.69 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Front Crank Seal; Oil Seal for Timing Gear/Chain Case and Crankshaft Front.
- Position: Front
- Replaces: 90311-48029, 90311-T0032
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2023 Toyota Tacoma | Base, Pre Runner, SR, SR5 | 4 Cyl 2.7 L GAS
View related parts
Toyota Tacoma Crankshaft Seal, Front
Part Number: 90311-48020
$14.21 MSRP: $19.78
You Save: $5.57 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Front Crank Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case); Engine Crankshaft Seal
- Manufacturer Note: NOK
- Position: Front
- Replaces: 90311-48021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2008 Toyota Tacoma | Base, Pre Runner | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS
View related parts
Toyota Tacoma Front Crank Seal
Part Number: 90311-48014
$13.01 MSRP: $18.11
You Save: $5.10 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Timing Cover Seal; Front Seal; Oil Seal for Timing Gear/Chain Case & Crankshaft.
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | Base, DLX, Pre Runner, SR5 | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS
View related parts
Toyota Tacoma Seal, Oil(For Timing Gear Case Or Timing Chain Case), Front
Part Number: 90311-A0028
$9.07 MSRP: $12.63
You Save: $3.56 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Timing Cover Gasket; Timing Cover Seal; Crankshaft Seal
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2023 Toyota Tacoma | Limited, Nightshade, SR, SR5, Trail, Trail Special Edition, TRD Off-Road, TRD Pro, TRD Sport | 6 Cyl 3.5 L GAS

Toyota Tacoma Crankshaft Seal

Choose genuine Crankshaft Seal that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Seal for your Toyota Tacoma? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tacoma parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Tacoma Crankshaft Seal Parts and Q&A

Oil Seal, Front
90311-A0005
Q: How to install the front crankshaft seal on Toyota Tacoma?
A:
The installation process of the front crankshaft seal on a 2TR-FE engine requires application of MP grease on the lip of the new oil seal while ensuring the lip stays clean from foreign materials. Install the new oil seal using Special Service Tool: 09223-50010 until its surface reaches the same level as the timing chain cover edge. Keep the crankshaft angle uniform and remove all grease from the crankshaft. Place the crankshaft set key alongside the pulley key groove before sliding on the pulley. Fasten a temporary crankshaft pulley bolt to the crankshaft. Pursue the crankshaft pulley installation by using Special Service Tool: 09213-54015 91651-60855 to hold the pulley and torque the bolt to 260 Nm (2,651 kgf-cm, 192 ft-lbf). The crankshaft pulley bolt should not be reused. The bracket with bolt must be installed for vehicles with air conditioning and require fastening to 7.5 Nm (76 kgf-cm, 66 in-lbf). First, fit the fan shroud and install the radiator support to frame seal on the left-side and then add the engine coolant to perform a leak check on engine coolant and oil. Install the No. 1 engine under cover sub-assembly by using the 4 bolts for Pre Runner and 4WD models and secure them at 30 Nm (306 kgf-cm, 22 ft-lbf).
Crankshaft Seal, Front
90311-48020
Q: How to remove the front crankshaft seal on Toyota Tacoma?
A:
A 2TR-FE engine front crankshaft seal requires the removal of four bolts that fix the No. 1 engine under cover. Remove engine coolant before you take off the radiator support to frame seal along with the fan shroud. The crankshaft pulley removal process begins with exiting the bolt then separating the air conditioning bracket if present. The front crankshaft seal removal requires the use of Special Service Tool 09213-54015 91651-60855 to gradually loosen the crankshaft pulley bolt until its thread penetration reaches 2 or 3. The installation of Special Service Tools 09950-50013 and 09951-05010 will enable you to remove the crankshaft pulley and its bolt. Use a cutter knife to cut off the lip of the timing gear case or timing chain case oil seal before you remove it using a tape-wrapped screwdriver. Remove the oil seal from the crankshaft then inspect it for damage before using sandpaper with 400-grit to smooth rough areas.
