How to remove the alternator on Toyota Solara?

The first step to remove the alternator from the 2AZ-FE charging system requires disconnecting the negative battery cable. First detach the front wheel from the right-hand side then separate the front fender apron seal from the same side. The first step requires removal of the No. 1 engine cover sub-assembly and afterward the engine moving control rod with bracket. Next follow through with removal of the No. 2 engine mounting stay together with No. 2 engine mounting bracket from the right-hand side. Detach the fan together with the generator V belt first. Take out the generator connector before unscrewing the nut while disconnecting the wire harness from terminal B. Remove the bolt which also comes with the wire harness clamp bracket. Remove the wire harness clamps followed by the two bolts which secure the generator assembly.

How to install the alternator assembly on Toyota Solara?

The 2AZ-FE charging system generator installation starts with ensuring that the crankshaft position sensor wire harness gets secured to the back of the timing chain cover rib using wire harness clamp bracket. Use 2 bolts for the generator assembly installation where Bolt A reaches 21 Nm (215 kgf-cm, 15 ft-lbf) torque range and Bolt B reaches 52 Nm (530 kgf-cm, 38 ft-lbf). Fasten the generator wire to terminal B with a 9.8 Nm (100 kgf-cm) torque nut then install the clamp bracket by tightening its bolt to 8.4 Nm (86 kgf-cm). Place the clamp onto the generator while connecting the generator connector to its terminal. The next step includes the installation of two parts: the fan and generator V belt in addition to the No. 2 engine mounting bracket RH and the No. 2 engine mounting stay RH followed by the engine moving control rod with bracket. Proceed with the installation of the front wheel to the right-hand side then connect the cable to the negative battery terminal before conducting the initialization process.

OEM Toyota Solara Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Alternators found

View related parts

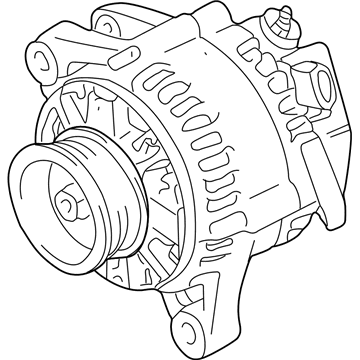

Toyota Solara Alternator
Part Number: 27060-0H100-84
$247.53 MSRP: $329.88
You Save: $82.35 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 2Az
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Solara | SE, SE Sport, SLE | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Alternator
Part Number: 27060-0H111-84
$300.81 MSRP: $401.33
You Save: $100.52 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator
- Replaces: 27060-0H110, 27060-0H111
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Solara | SE, SLE, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Alternator
Part Number: 27060-74590-84
$209.55 MSRP: $278.94
You Save: $69.39 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators
- Replaces: 27060-74590, 27060-03060-84
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2001 Toyota Solara | SE | 4 Cyl 2.2 L GAS
View related parts
Toyota Solara Alternator
Part Number: 27060-20040-84
$217.80 MSRP: $290.00
You Save: $72.20 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator
- Replaces: 27060-20040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Solara Reman Alternator Mz
Part Number: 27060-0A120-84
$179.80 MSRP: $239.03
You Save: $59.23 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SE Sport, SLE, Sport | 6 Cyl 3.3 L GAS
View related parts
Toyota Solara Alternator
Part Number: 27060-0H010-84
$234.19 MSRP: $311.98
You Save: $77.79 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 2Az
- Replaces: 27060-0H010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003 Toyota Solara | SE | 4 Cyl 2.4 L GAS
View related parts
Toyota Solara Reman Alternator W/R
Part Number: 27060-20120-84
$242.56 MSRP: $323.20
You Save: $80.64 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: REMAN, ALTERNATOR AS; Alternator
- Replaces: 27060-20120
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Solara Alternator
Part Number: 27060-0A090-84
$201.43 MSRP: $285.91
You Save: $84.48 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 1Mz
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003 Toyota Solara | SE, SLE | 6 Cyl 3.0 L GAS

Toyota Solara Alternator

Choose genuine Alternator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Alternator for your Toyota Solara? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Solara parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Alternator which is fitted in every Toyota SOLARA vehicles, is a valuable gadget for charging the battery of the vehicles and it supplies electrical charges to various gadgets of the vehicle while in use. Alternator: Usually, it is mounted in front of the engine, this part changes mechanical energy of the engine into electrical energy and distribute it to other parts such as battery. In case of the Alternator, rotating magnetic field is used while stationery armature and so, it produces the AC to recharge the battery and supply electricity in the car. To regulate the voltage output of the Alternator and to avoid under charging or over charging, most of the new generation vehicle involves voltage regulation with in the Powertrain Control Module (PCM). This is especially so when the included alternator is not capable of supporting additional electrical loads from other parts This would warrant the use of a high output alternator for better performance and protection of the car's charging system.

Toyota Solara Alternator Parts and Q&A

Reman Alternator Mz
27060-0A120-84
Q: How to remove the alternator on Toyota Solara?
A:
The first step to remove the alternator from the 2AZ-FE charging system requires disconnecting the negative battery cable. First detach the front wheel from the right-hand side then separate the front fender apron seal from the same side. The first step requires removal of the No. 1 engine cover sub-assembly and afterward the engine moving control rod with bracket. Next follow through with removal of the No. 2 engine mounting stay together with No. 2 engine mounting bracket from the right-hand side. Detach the fan together with the generator V belt first. Take out the generator connector before unscrewing the nut while disconnecting the wire harness from terminal B. Remove the bolt which also comes with the wire harness clamp bracket. Remove the wire harness clamps followed by the two bolts which secure the generator assembly.
Alternator
27060-0H111-84
Q: How to install the alternator assembly on Toyota Solara?
A:
The 2AZ-FE charging system generator installation starts with ensuring that the Crankshaft Position Sensor wire harness gets secured to the back of the timing chain cover rib using wire harness clamp bracket. Use 2 bolts for the generator assembly installation where Bolt A reaches 21 Nm (215 kgf-cm, 15 ft-lbf) torque range and Bolt B reaches 52 Nm (530 kgf-cm, 38 ft-lbf). Fasten the generator wire to terminal B with a 9.8 Nm (100 kgf-cm) torque nut then install the clamp bracket by tightening its bolt to 8.4 Nm (86 kgf-cm). Place the clamp onto the generator while connecting the generator connector to its terminal. The next step includes the installation of two parts: the fan and generator V belt in addition to the No. 2 engine mounting bracket RH and the No. 2 engine mounting stay RH followed by the engine moving control rod with bracket. Proceed with the installation of the front wheel to the right-hand side then connect the cable to the negative battery terminal before conducting the initialization process.
