Question 1

How to install the rear wiper motor and assemble the rear wiper blade on Toyota Sequoia?

Accepted Answer

When installing the rear wiper motor start with MP grease application on the entire wiper motor grommet lip surface while preserving hole clearance and filling the grooves with grease before mounting the grommet with its mark directed upward. Install the rear wiper motor by securing it with 3 bolts that reach 5.5 Nm (56 kgf-cm, 49 in-lbf) torque value while connecting the connector and clamp. For the rear wiper blade assembly, scrape any metal powder off the serrated part of the wiper arm with a round file, clean the wiper pivot serrations with a wire brush, operate the wiper, and stop the windshield wiper motor in the automatic stop position before installing the rear wiper arm in the specified position with the nut, also torqued to 5.5 Nm (56 kgf-cm, 49 in-lbf), ensuring the arm is positioned on the linear wiper step before tightening the nut while holding the arm hinge down by hand. The rear wiper head cap requires fitting the claw first as you progress to install the back door service hole cover along with the back door trim board assembly, back door pull strap and back door strap cover and back door side garnish LH and RH and back door center garnish followed by the power back door rod when it is equipped with power functionality.

Question 2

How to remove the front wiper motor on Toyota Sequoia?

Accepted Answer

The first step to remove the front wiper motor starts by removing the right-hand front wiper arm assembly with its blade through nut removal. The same process must be performed on the left-hand side. The next step involves freeing the claw to remove the front fender to cowl side seal from the right-hand side before doing the same with the left-hand side. You should start by detaching the cowl top ventilator louver sub-assembly through removal of its 2 clips together with 6 claws and 8 guides. Remove the connector then untighten the nut before extracting the 4 bolts which will separate the front wiper motor and link assembly. A screwdriver taped with protective tape can be utilized to deduct the rod which connects the wiper link assembly to the crank arm pivot of the front wiper motor. Mark the parts for alignment purposes. You must first remove the nut before taking off the crank arm and then unfastening the windshield wiper motor through three bolts.

OEM Toyota Sequoia Wiper Motor

7 Wiper Motors found

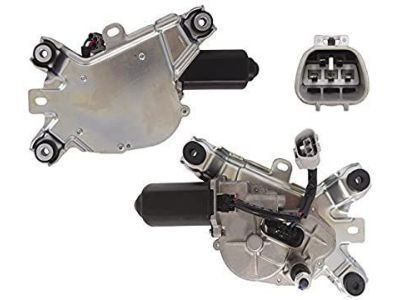

Toyota Sequoia Wiper Motor Assembly, Rear

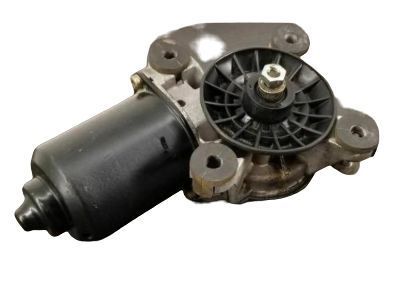

Toyota Sequoia Wiper Motor, Rear

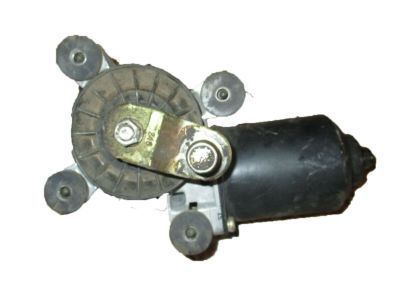

Toyota Sequoia Wiper Motor, Front

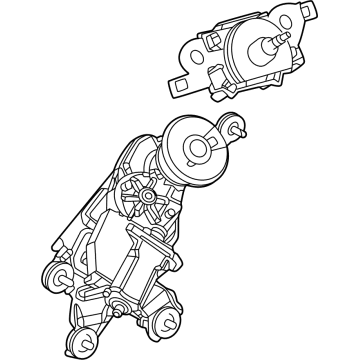

Toyota Sequoia Wiper Motor, Front

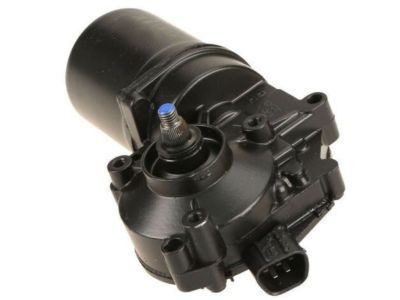

Toyota Sequoia Wiper Motor, Front

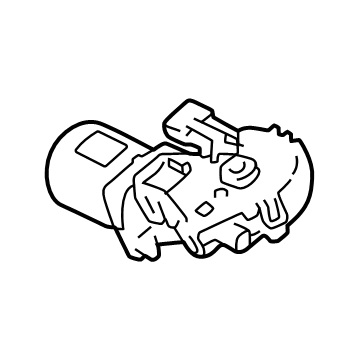

Toyota Sequoia Motor Assembly, Rear

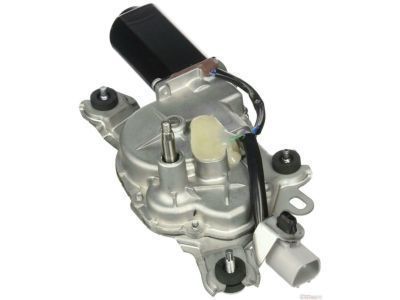

Toyota Sequoia Wiper Motor, Front

Toyota Sequoia Wiper Motor
