How to service and repair the wiper linkage on Toyota Sequoia?

Begin the replacement process on the front wiper linkage and motor by using a screwdriver to remove the front wiper arm LH cap following the step of taping the screwdriver tip first and later removing the nut and wiper arm. Repeat this procedure for the front wiper arm RH. The same steps need to be executed on the front wiper arm which is located on the right-hand side. The cowl top ventilator louver requires 6 clip removal followed by 8 screw uninstallation using a clip remover tool. Unfasten the hood to cowl top seal which is attached to the cowl top ventilator louver. Following the removal of the 4 windshield wiper motor bolts the wiper motor can be extracted while its link is disconnected from the wiper arm. Remove the 6 bolts from the windshield wiper link then extract it through the service hole. Remove the nozzle from each side by disconnecting the washer hose followed by using a screwdriver. Start your installation by inserting the washer nozzle sub-assembly and afterward insert the windshield wiper link through the service hole followed by torquing the 6 bolts to 5.5 N.m (56 kgf.cm, 49 in.lbf). Cowl panel and wiper link claw alignment is necessary before torquing the 4 bolts to 5.5 N.m (56 kgf.cm, 49 in.lbf) while reattaching the connector. Begin with placing the hood to cowl top seal onto the cowl top ventilator louver before securing the louver with the provided 8 screws and 6 clips. First operate the wiper once then turn off the wiper switch before installing the wiper arms while tightening the nuts by hand to positions of 25.4 mm (1.000 in) and 40.0 mm (1.574 in) and make sure the blades stay within the designated boundary of the ceramic edge. The 2 nuts should receive torque of 20 N.m (205 kgf.cm, 15 ft.lbf) for installation of the 2 caps.

OEM Toyota Sequoia Wiper Linkage

Wiper Blade

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Wiper Linkages found

View related parts
Toyota Sequoia Rear Transmission
Part Number: 85170-0E030
$186.04 MSRP: $265.62
You Save: $79.58 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Rear Wiper; Wiper Linkage; Link Assembly; Link
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

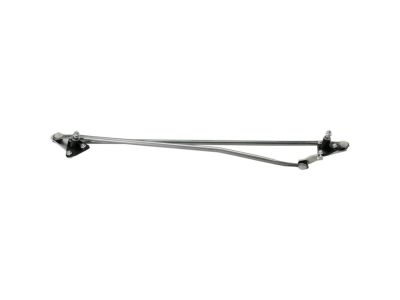

Toyota Sequoia Wiper Linkage, Front
Part Number: 85150-0C070
$237.18 MSRP: $338.64
You Save: $101.46 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

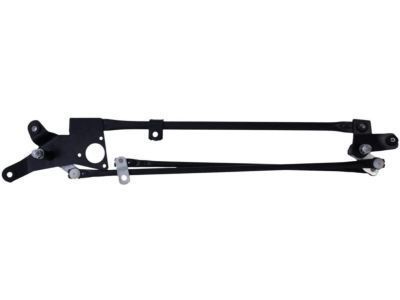

Toyota Sequoia Wiper Linkage, Front
Part Number: 85150-0C050
$296.60 MSRP: $423.47
You Save: $126.87 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Manufacturer Note: COLD SPEC
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

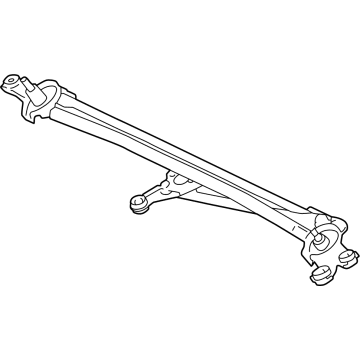

Toyota Sequoia Wiper Linkage, Front
Part Number: 85150-0C080
$227.28 MSRP: $324.50
You Save: $97.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

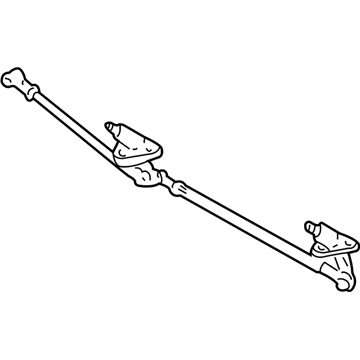

Toyota Sequoia Wiper Linkage, Front
Part Number: 85150-0C040
Product Specifications
- Other Name: Link Assembly, Front Wiper; Windshield Wiper Linkage; Front Transmission; Link Assembly, Windshield Wiper
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS

Toyota Sequoia Wiper Linkage

Choose genuine Wiper Linkage that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Wiper Linkage for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Among these, the Wiper Linkage is a linkage system that can be considered as the one that describes the principles of constructing high-quality automobiles by the brand. This basic process helps the rotation of the wiper arms through a conversion of rotational force from the wiper motor so that the windshield is cleared in bad visibility conditions. Structure Problem on Wiper Linkage is closely similar when it comes to its usage with different models of Toyota Sequoia in which its functionality is well sustained as it augments and supports the efficiency and safety of the drivers and passengers of the car. Turning on the wiper switch empowers the control module to supply power to the motor so that wiper linkage can serve its purpose of eliminating the problem of poor visibility. Ergonomically, the design of the Wiper Linkage product in Toyota brand Sequoia is very effective owing to the following key features. More especially considering the fact that the vehicle under consideration is a full-size SUV such as the Toyota Sequoia with a reputation of being very reliable in terms of performance and capabilities. Furthermore, the Wiper Linkage comes with simple installation hence preferred in the automotive market. This is true mostly because of its efficiency in terms of serving the customer and its reliability in daily usage hence the relevance of the diesel engine in the Toyota Sequoia. Finally, the Wiper Linkage contributes to the driver's safety, and gives the vehicle the image that is 'Toyota', meaning it is an essential component of the Toyota Sequoia.

Toyota Sequoia Wiper Linkage Parts and Q&A

Wiper Linkage, Front
85150-0C050
Q: How to service and repair the wiper linkage on Toyota Sequoia?
A:
Begin the replacement process on the front wiper linkage and motor by using a screwdriver to remove the front wiper arm LH cap following the step of taping the screwdriver tip first and later removing the nut and wiper arm. Repeat this procedure for the front wiper arm RH. The same steps need to be executed on the front wiper arm which is located on the right-hand side. The cowl top ventilator louver requires 6 clip removal followed by 8 screw uninstallation using a clip remover tool. Unfasten the hood to cowl top seal which is attached to the cowl top ventilator louver. Following the removal of the 4 windshield Wiper Motor bolts the wiper motor can be extracted while its link is disconnected from the wiper arm. Remove the 6 bolts from the windshield wiper link then extract it through the service hole. Remove the nozzle from each side by disconnecting the washer hose followed by using a screwdriver. Start your installation by inserting the washer nozzle sub-assembly and afterward insert the windshield wiper link through the service hole followed by torquing the 6 bolts to 5.5 N.m (56 kgf.cm, 49 in.lbf). Cowl panel and wiper link claw alignment is necessary before torquing the 4 bolts to 5.5 N.m (56 kgf.cm, 49 in.lbf) while reattaching the connector. Begin with placing the hood to cowl top seal onto the cowl top ventilator louver before securing the louver with the provided 8 screws and 6 clips. First operate the wiper once then turn off the wiper switch before installing the wiper arms while tightening the nuts by hand to positions of 25.4 mm (1.000 in) and 40.0 mm (1.574 in) and make sure the blades stay within the designated boundary of the ceramic edge. The 2 nuts should receive torque of 20 N.m (205 kgf.cm, 15 ft.lbf) for installation of the 2 caps.
