How to remove the Rack And Pinion on Toyota Sequoia?

The first step to remove the rack and pinion requires alignment of front wheels straight ahead followed by front wheel removal. Secondly the technician must disassemble the engine assembly according to specific instructions for either the 3UR-FE or 2UZ-FE engine model. Mistake the alignment of the shaft with the power steering rack and pinion afterward before removing the bolt and intermediate shaft. The technician should first disconnect the left tie rod end sub-assembly by taking out the nut and cotter pin then utilize Special Service Tool: 09610-20012 to separate the tie rod end from the steering knuckle without damaging any of the components including front disc brake dust cover, ball joint dust cover and steering knuckle. Repeating this process is required when working on the right tie rod end sub-assembly. Use a union nut wrench to remove the pressure feed tube by unscrewing the return tube side then the pressure feed tube side from the power steering rack and pinion before you can take off the two bolts connecting the pressure feed tube clamp. The last step involves removing the power steering rack and pinion assembly where completing the procedure requires removing two bolts and two nuts and avoiding twisting the nut which comes with its built-in stopper position and requires simply loosening the bolt when maintaining the nut position steady.

OEM Toyota Sequoia Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Rack And Pinions found

View related parts

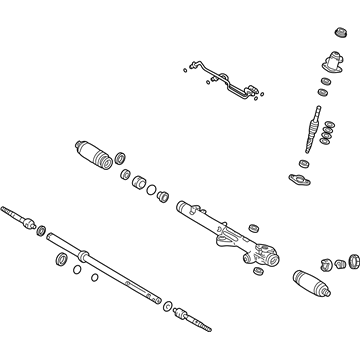

Toyota Sequoia Gear Assembly
Part Number: 44250-0C121
$653.07 MSRP: $957.08
You Save: $304.01 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Power Steering; Rack and Pinion Assembly; Steering Gearbox; Steering Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Replaces: 44250-0C120, 44250-0C091, 44250-0C090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

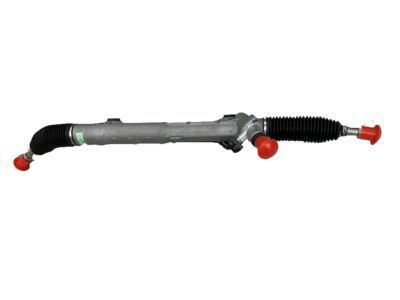

Toyota Sequoia Gear Assembly
Part Number: 44250-0C190
$909.24 MSRP: $1332.50
You Save: $423.26 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Rack; Gear Assembly, Power Steering(For Rack & Pinion)
- Manufacturer Note: TRD PRO PACKAGE,*614
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

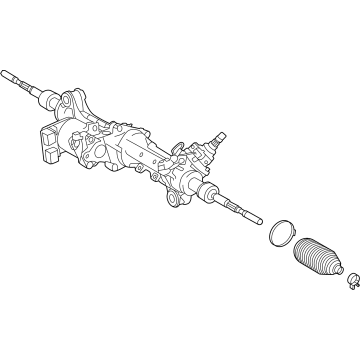

Toyota Sequoia Gear Assembly
Part Number: 44250-0C180
$909.24 MSRP: $1332.50
You Save: $423.26 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Rack; Gear Assembly, Power Steering(For Rack & Pinion)
- Manufacturer Note: *614
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5 | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

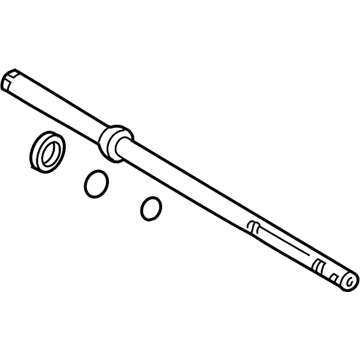

Toyota Sequoia Steering Gear
Part Number: 44250-0C041
$722.76 MSRP: $1059.21
You Save: $336.45 (32%)
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Power Steering; Rack and Pinion Assembly; Steering Gearbox; Rack & Pinion; Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Manufacturer Note: W(REAR STABILIZER)
- Replaces: 44250-0C050, 44250-0C020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

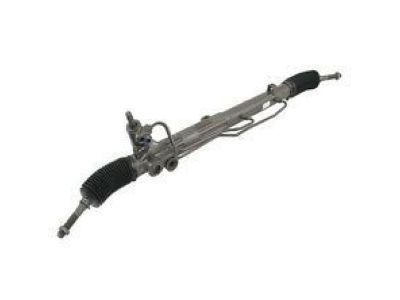

Toyota Sequoia Rack, Front
Part Number: 44204-0C011
$580.35 MSRP: $850.51
You Save: $270.16 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Rack, Front
Part Number: 44204-0C010
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS

Toyota Sequoia Rack And Pinion

If you're thinking about purchasing OEM parts for your Toyota Sequoia, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia Rack And Pinion at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Sequoia Rack And Pinion Parts Questions & Experts Answers

Gear Assembly
44250-0C121
Q: How to remove the Rack And Pinion on Toyota Sequoia?
A: The first step to remove the rack and pinion requires alignment of front wheels straight ahead followed by front wheel removal. Secondly the technician must disassemble the engine assembly according to specific instructions for either the 3UR-FE or 2UZ-FE engine model. Mistake the alignment of the shaft with the power steering rack and pinion afterward before removing the bolt and intermediate shaft. The technician should first disconnect the left tie rod end sub-assembly by taking out the nut and cotter pin then utilize Special Service Tool: 09610-20012 to separate the tie rod end from the Steering Knuckle without damaging any of the components including front disc brake dust cover, ball joint dust cover and steering knuckle. Repeating this process is required when working on the right tie rod end sub-assembly. Use a union nut wrench to remove the pressure feed tube by unscrewing the return tube side then the pressure feed tube side from the power steering rack and pinion before you can take off the two bolts connecting the pressure feed tube clamp. The last step involves removing the power steering rack and pinion assembly where completing the procedure requires removing two bolts and two nuts and avoiding twisting the nut which comes with its built-in stopper position and requires simply loosening the bolt when maintaining the nut position steady.
