16 Fuel Injectors found

View related parts

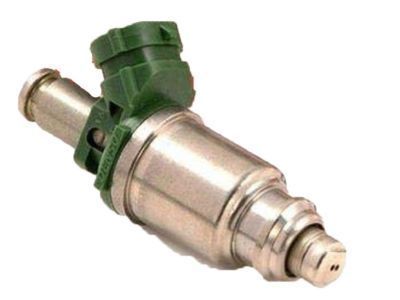

Toyota RAV4 Injector
Part Number: 23209-0P040
$155.21 MSRP: $219.72
You Save: $64.51 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Manufacturer Note: (L)
- Replaces: 23209-31050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts

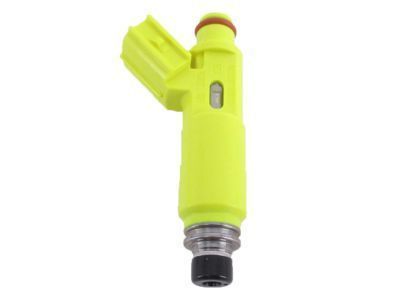

Toyota RAV4 Injector
Part Number: 23209-0H030
$165.66 MSRP: $234.51
You Save: $68.85 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Replaces: 23209-28080, 23209-0H060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota RAV4 | Base, L, Limited, Sport | 4 Cyl 2.4 L GAS
View related parts

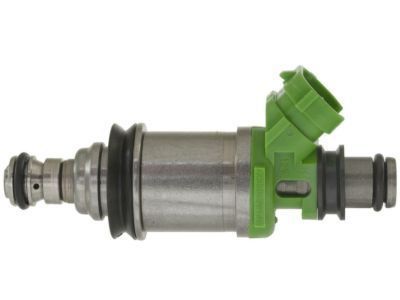

Toyota RAV4 Injector
Part Number: 23209-09175
$137.70 MSRP: $194.92
You Save: $57.22 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Replaces: 23209-39175
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2018 Toyota RAV4 | Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-74140
$182.43 MSRP: $260.47
You Save: $78.04 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Manufacturer Note: CALIFORNIA SPEC
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-74100
$182.43 MSRP: $260.47
You Save: $78.04 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-28050
$180.56 MSRP: $257.80
You Save: $77.24 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F0010-06
$342.08 MSRP: $501.32
You Save: $159.24 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Direct)
- Replaces: 23209-25010-06
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F0010-03
$345.60 MSRP: $506.48
You Save: $160.88 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Direct)
- Replaces: 23209-25010-03
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F9080
$173.65 MSRP: $245.83
You Save: $72.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Port)
- Replaces: 23209-29175, 23209-29105, 23209-F9000
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector Assembly, Fuel(For Direct)
Part Number: 23209-F0010-09
$340.98 MSRP: $486.84
You Save: $145.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector
- Replaces: 23209-25010-09
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector Assembly, Fuel(For Direct)
Part Number: 23209-F0010-08
$367.39 MSRP: $538.41
You Save: $171.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector
- Replaces: 23209-25010-08
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector Assembly, Fuel(For Direct)
Part Number: 23209-F0010-07
$344.48 MSRP: $491.84
You Save: $147.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector
- Replaces: 23209-25010-07
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F0010-05
$340.98 MSRP: $486.84
You Save: $145.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Direct)
- Replaces: 23209-25010-05
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F0010-04
$344.48 MSRP: $491.84
You Save: $147.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Direct)
- Replaces: 23209-25010-04
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector Assembly, Fuel(For Direct)
Part Number: 23209-F0010-02
$344.48 MSRP: $491.84
You Save: $147.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector
- Replaces: 23209-25010-02
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Injector
Part Number: 23209-F0010-01
$342.08 MSRP: $501.32
You Save: $159.24 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Set, Fuel; Fuel Injector; Injector Assembly, Fuel(For Direct)
- Replaces: 23209-25010-01
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS

Toyota RAV4 Fuel Injector

Choose genuine Fuel Injector that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Fuel Injector for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Fuel Injector is the electronic system of Toyota RAV4 vehicles which resembles the carburetor its function to supply fuel under direct control of the Engine Control Module directly into the engine cylinder. This system allows the precise ratio of air and fuel for the current load of the engine to be provided thus boosting the engine power and efficiency. There are problems like poor idle quality, loss of power and may directly affect some of the important parts like injectors, catalytic converters and oxygen sensors. To avoid these issues, one ought to replace the faulty fuel injectors as soon as possible. Over the years, there have been improvements and changes in Toyota RAV4 fuel injectors; today, the automobile has a direct fuel injector system and the indirect one, which provides certain advantages and benefits when it comes to fuel delivery and the engine's performance.

Toyota RAV4 Fuel Injector Parts and Q&A

Injector
23209-0P040
Q: How to install the fuel injector assembly on Toyota RAV4?
A:
When installing the 2AR-FE engine fuel injector assembly it is necessary to apply gasoline or spindle oil to new O-rings and attach one to each fuel injector. A light gasoline or spindle oil coating must be applied first to both the fuel delivery pipe region where the fuel injector O-ring resides followed by a second coating of the O-ring until fuel injector mounting onto the delivery pipe commences while checking for O-ring fractures or compression. Test the fuel injector movement for normal operation because restricted movement indicates that you need to replace the O-ring. The first step for the fuel delivery pipe sub-assembly includes installing new injector vibration insulators onto the cylinder head before adding 2 fuel delivery spacers with their longer section positioned against the cylinder face. Ease the fuel delivery pipe with its 4 fuel injectors onto the cylinder head and secure the 2 bolts but keep the injectors from falling during this process. Check the fuel injectors rotate smoothly before replacing their O-ring when needed and torque the 2 bolts to 21 Nm (214 kgf-cm, 15 ft-lbf). Position the wire harness brackets with their respective bolts torqued to 10 Nm (102 kgf-cm, 7 ft-lbf). Then link the 3 connectors with the 4 fuel injector connectors before securing the harness with 2 clamps. The next step involves pushing the tube connector firmly until it becomes audible before using the No. 2 fuel pipe clamp to secure the tube against the fuel hose clamp. The inspection for fuel leaks can begin after connecting the negative battery terminal cable. Verify the system for leaks by activating the Active Test mode through the Techstream connected to the DLC3 device when the ignition switch is set to ON without starting the engine. Check the fuel system for leaks before ending the process with the ignition switch and Techstream disconnection.
Injector
23209-0H030
Q: How to remove the fuel injectors on Toyota RAV4?
A:
The procedure for fuel injector removal from a 2AZ-FE engine begins with fuel system pressure release achieved by removing the console box then disconnecting the connector to start the engine until it stops and turn off the ignition and finally removing the fuel tank cap to expose air. Reinstall the console box afterwards you reconnect the connector. Follow the next step by removing the negative battery cable while allowing at least 90 seconds of waiting time to avoid Air Bag activation. The first step involves clearing the No. 1 engine cover along with the air cleaner cap sub-assembly. Use Special Service Tool: 09268-21010 while disconnecting the fuel main tube by first removing the fuel tube from the fuel hose clamp and the fuel pipe clamp then cleaning the fuel tube connector. Use a plastic bag to protect the separated components when draining all remaining fuel. Disengage the No. 2 ventilation hose from the ventilation valve before removing the fuel delivery pipe sub-assembly with steps starting with wire harness clamp removal then separating the 4 fuel injector connectors before removing the 2 bolts to extract the fuel delivery pipe and its 4 fuel injectors without any drops. Pulling the 4 fuel injectors from the delivery pipe means first removing both delivery pipe spacers and all 4 insulators mounted on the cylinder head.
