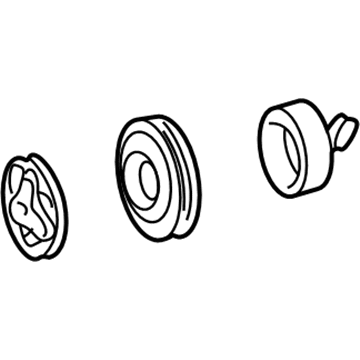

OEM Toyota Prius A/C Clutch

Toyota Prius A/C Clutch Parts and Q&A

• Clutch Coil
  88411-16070
  Q: How to service and repair the A/C Clutch on Toyota Prius?

  A:

  A process for compressor clutch servicing starts with complete disassembly of the parts. You must remove the pressure plate through this combination of tools: Special Service Tool 07112-76050 combined with a socket wrench when uninstalling the shaft bolt according to a torque standard of 13.2 N.m (135 kgf.cm, 9 ft.lbf). Using Special Service Tool: 07112-76040 on the pressure plate will enable socket wrench use with 07112-76050, 07112-66040 to remove the pressure plate and retrieve the shims from the shaft. The snap ring must be removed for rotor removal to follow but the reinstallation should position the beveled snap ring edge upward. A plastic hammer allows for rotor removal from the shaft without harming the pulley during the process. Before you remove the stator disconnect the connector while also removing the screw and stator lead wire followed by taking off the snap ring (which needs to have its beveled side facing up during reassembly) and then the stator can be extracted. The reassembly process requires following steps in the opposite sequence used for disassembly. The standard placement of the magnetic clutch clearance requires connecting the lead wire to the positive (+) terminal then measuring the plate and rotor gap by connecting the negative (-) terminal to the battery while using the dial indicator in its correct position against the pressure plate. The target clearance stands at 0.5 plus or minus 0.15 mm (0.020 plus or minus 0.0059 in.). The correct clearance level stands at 0.5 plus or minus 0.15 mm which equates to 0.020 plus or minus 0.0059 inches. To reach the standard clearance insert shims with thicknesses of 0.1 mm (0.004 in.), 0.3 mm (0.012 in.) or 0.5 mm (0.020 in.) into the clearance system when the measurement is beyond the required range.
