How to install the exhaust pipe on Toyota Land Cruiser?

Installation of the exhaust pipe requires starting with Air Fuel Ratio Sensor for Bank 1 Sensor 1 and Bank 2 Sensor 1 followed by No. 2 Heated Oxygen Sensor for Bank 1 Sensor 2 and Heated Oxygen Sensor for Bank 2 Sensor 2. Begin the front exhaust pipe installation by placing a new gasket onto the exhaust manifold RH then tight the assembly with 3 new nuts to 54 Nm (554 kgf-cm, 40 ft-lbf). Proceed to connect the air fuel ratio sensor and heated oxygen sensor connectors before attaching the heated oxygen sensor wire harness clamp. The front No. 2 exhaust pipe assembly installation requires another new gasket which should be matched to the exhaust manifold LH using 3 new nuts torqued to 54 Nm (554 kgf-cm, 40 ft-lbf) standards while connecting the sensor connectors. The installation of the center exhaust pipe assembly requires verifying the compression spring's free length with a vernier caliper before proceeding; replace the spring if its measurement is under 43 mm (1.693 in.). You should install two new gaskets onto the front exhaust pipe and front No. 2 exhaust pipe before attaching the center exhaust pipe to its 3 exhaust pipe supports using 4 bolts and 2 compression springs which need to be torqued to 43 Nm (438 kgf-cm, 32 ft-lbf) for the front exhaust pipe while being torqued to 48 Nm (489 kgf-cm, 35 ft-lbf) for the front No. 2 exhaust pipe. The installation of 2 exhaust pipe damper bolts to the tailpipe requires a 19 Nm (194 kgf-cm, 14 ft-lbf) torque setting. The tailpipe assembly procedure starts with mounting it to the two exhaust pipe supports before placing a new gasket on the center exhaust pipe and fastening the tailpipe to the pipe using a new clamp and bolt secured at 32 Nm torque (326 kgf-cm, 24 ft-lbf) within the designated angular area. After leak inspection check the installation of the No. 2 engine under cover.

How to remove the exhaust pipe on Toyota Land Cruiser?

The process to remove an exhaust pipe begins with protective glove usage along with waiting until the pipe cools following engine poweroff. Commence the process by taking out the No. 2 engine under cover. Then remove the tailpipe assembly by first taking out its bolt and clamp and gasket and finally remove the tailpipe from the center exhaust pipe and its two supports. The exhaust pipe damper can be removed by disconnecting its two mounting bolts which secure the pipe to the tailpipe. The center exhaust pipe assembly requires removal of four bolts along with two compression springs before you can extract the pipe from its three supports together with the two front exhaust pipe and front No.2 exhaust pipe gaskets. Disconnect both air fuel ratio sensor and heated oxygen sensor connectors from the front No. 2 exhaust pipe assembly before extracting the front No. 2 exhaust pipe and its gasket from exhaust manifold LH through removal of three nuts. The disconnection procedure must be performed twice on the air fuel ratio sensor and heated oxygen sensor connectors for the front exhaust pipe assembly followed by removing the front exhaust pipe and its gasket from the exhaust manifold RH by detaching the heated oxygen sensor wire harness clamp and unscrewing three nuts. The maintenance procedure includes removal of Bank 1 Sensor 1 and Bank 2 Sensor 1 air fuel ratio sensors together with the No. 2 heated oxygen sensor for Bank 1 Sensor 2 and the heated oxygen sensor for Bank 2 Sensor 2.

OEM Toyota Land Cruiser Exhaust Pipe

Exhaust Tail Pipe

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

45 Exhaust Pipes found

View related parts

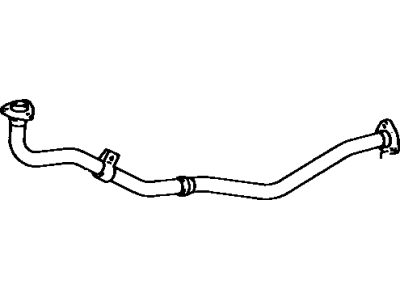

Toyota Land Cruiser Intermediate Pipe, Front Part Number: 17450-50070
$229.03 MSRP: $299.50
You Save: $70.47 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Front; Catalytic Converter; Direct-Fit Exhaust; Exhaust System Kit; Exhaust Pipe; Second Converter; Front Pipe; Center Pipe; Pipe Assembly, Exhaust, Front
- Position: Front
- Replaces: 17450-50050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts

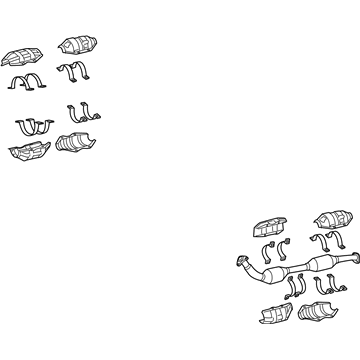

Toyota Land Cruiser Muffler & Pipe Assembly, Center Part Number: 17403-50151
$661.92 MSRP: $888.49
You Save: $226.57 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust Muffler; Direct-Fit Exhaust; Exhaust System Kit; Tail Pipe; Muffler & Pipe; Muffler; Pipe Assembly, Exhaust, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts

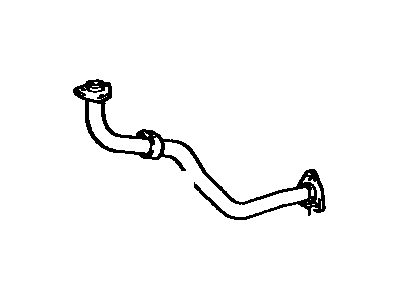

Toyota Land Cruiser Pipe Assembly, Exhaust, Center Part Number: 17420-38100
$617.66 MSRP: $829.07
You Save: $211.41 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Pipe; Tail Pipe; Muffler
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2021, 2008-2011 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts

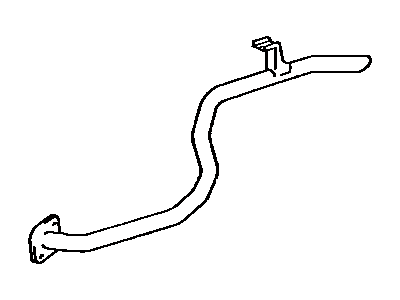

Toyota Land Cruiser Pipe Assembly, Exhaust, Front Part Number: 17410-38310
$1397.85 MSRP: $1876.33
You Save: $478.48 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Catalytic Converter; Exhaust Pipe
- Manufacturer Note: MEXICO SPEC
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2019 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS
View related parts

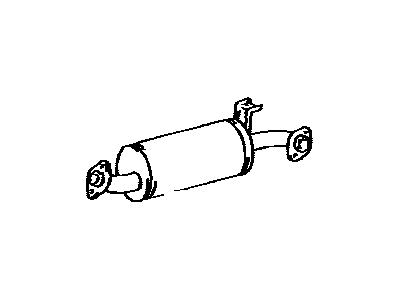

Toyota Land Cruiser Crossover Pipe Part Number: 17106-62020
$311.04 MSRP: $406.76
You Save: $95.72 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust Crossover Pipe; Exhaust Pipe; Cross Over Pipe; Pipe Sub-Assembly, Exhaust Crossover
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts

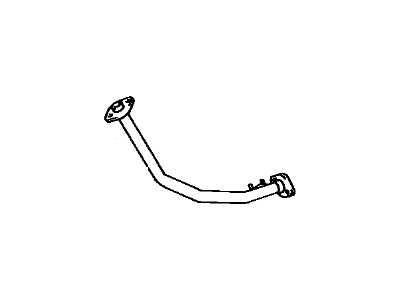

Toyota Land Cruiser Pipe Assembly, Exhaust, Center Part Number: 17403-66041
$631.16 MSRP: $847.20
You Save: $216.04 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust System Kit; Exhaust Pipe; Tail Pipe; Muffler
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts
Toyota Land Cruiser Intermed Pipe Part Number: 17403-66010
$289.37 MSRP: $378.42
You Save: $89.05 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust Pipe; Center Pipe; Pipe Sub-Assembly, Exhaust, Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1994 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Tail Part Number: 17405-66010
$343.10 MSRP: $460.54
You Save: $117.44 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust System Kit; Exhaust Pipe; Tail Pipe; Muffler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts
Toyota Land Cruiser Resonator & Pipe Part Number: 17405-50030
$415.17 MSRP: $557.28
You Save: $142.11 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Direct-Fit; System Kit; Resonator; Muffler; Resonator; Tailpipe; Pipe Assembly, Exhaust, Tail; Tail Pipe
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2005 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Resonator & Pipe Part Number: 17405-50040
$465.11 MSRP: $624.32
You Save: $159.21 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust Tail Pipe; Exhaust Pipe; Muffler; Resonator; Tailpipe; Pipe Assembly, Exhaust, Tail; Tail Pipe
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Front, Passenger Side Part Number: 17401-50230
$1738.35 MSRP: $2333.38
You Save: $595.03 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Catalytic Converter; Exhaust Pipe
- Manufacturer Note: RH
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Front Pipe Part Number: 17410-50370
$1392.75 MSRP: $1869.47
You Save: $476.72 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Catalytic Converter; Exhaust Pipe; Converter & Pipe; Pipe Assembly, Exhaust, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2005 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Converter Assembly, W/Catalyst Part Number: 17400-F0040
$1824.05 MSRP: $2673.16
You Save: $849.11 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Converter Assembly, With Catalyst
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024-2025 Toyota Land Cruiser | 1958, Base, First Edition | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Land Cruiser Tail Pipe Part Number: 17430-38600
$366.93 MSRP: $492.53
You Save: $125.60 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Tail; Exhaust Pipe; Resonator; Muffler; Resonator & Pipe; Pipe Assembly, Exhaust, Tail
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2021 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust Part Number: 17420-25090
$441.39 MSRP: $592.47
You Save: $151.08 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: PIPE ASSY, EXHAUST
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024-2025 Toyota Land Cruiser | 1958, Base, First Edition | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Front, Driver Side Part Number: 17450-38070
$1397.85 MSRP: $1876.33
You Save: $478.48 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Front; Catalytic Converter; Exhaust Pipe
- Manufacturer Note: MEXICO SPEC
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2019 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Front Part Number: 17410-38640
$1699.88 MSRP: $2281.73
You Save: $581.85 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Catalytic Converter; Exhaust Pipe
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2021 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Front Pipe, Driver Side Part Number: 17401-50240
$1788.64 MSRP: $2400.87
You Save: $612.23 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Catalytic Converter, Left; Exhaust Pipe; Converter & Pipe; Pipe Assembly, Exhaust, Front; Catalytic Converter
- Manufacturer Note: LH
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Front Part Number: 17410-38270
$1744.71 MSRP: $2341.91
You Save: $597.20 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Pipe
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Pipe Assembly, Exhaust, Front, Driver Side Part Number: 17450-38010
$1763.10 MSRP: $2366.60
You Save: $603.50 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Front; Exhaust Pipe
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS

| Page 1 of 3 |Next >

1-20 of 45 Results

Toyota Land Cruiser Exhaust Pipe

Choose genuine Exhaust Pipe that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Exhaust Pipe for your Toyota Land Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Land Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

There is hardly any denying the fact that the Toyota Land Cruiser Exhaust Pipe is a component that is of immense importance which makes it a perfect symbol of the car's correlation to the quality and performance of the brand. The Toyota Land Cruiser Exhaust Pipe has been specially and effectively designed to remove noxious substances including carbon monoxide from the engine while in use; thus, occupants of the car are protected from the dangerous effects of these gases. This exhaust pipe easily links with the entire exhaust system of the car right from the muffler and the catalytic converter thereby ensuring the safe expulsion of fumes from car engines. It fits in most of the Toyota Land Cruiser types, but the exhaust pipe may differ, performance varieties may have central or more pipes adding to the car's performance. Often, in use, particularly cross country and in extremely hot and cold climates, the Toyota Land Cruiser is famous for its durability; hence, the exhaust pipe cannot afford to be any lesser in its integrity in as much as it will help the car perform its best. Since it is located in the body of the vehicle which is often exposed to scratcHes albeit with a protective cover it is clear that it has to be designed in a very rugged manner. Interestingly, the Toyota Land Cruiser Exhaust Pipe is well distinguished from other automotive exhaust pipes in that its general designing is done well enhancing vehicle's fuel efficiency and reducing exhaust emissions. All the these features not only give the impression of the Toyota Land Cruiser as durable and high performing car but also bring in to focus the importance of the Exhaust pipe in making each drive safe and efficient.

Toyota Land Cruiser Exhaust Pipe Parts and Q&A

Pipe Assembly, Exhaust, Front, Driver Side
17450-38010
Q: How to install the exhaust pipe on Toyota Land Cruiser?
A:
Installation of the exhaust pipe requires starting with Air Fuel Ratio Sensor for Bank 1 Sensor 1 and Bank 2 Sensor 1 followed by No. 2 Heated Oxygen Sensor for Bank 1 Sensor 2 and Heated Oxygen Sensor for Bank 2 Sensor 2. Begin the front exhaust pipe installation by placing a new gasket onto the Exhaust Manifold RH then tight the assembly with 3 new nuts to 54 Nm (554 kgf-cm, 40 ft-lbf). Proceed to connect the air fuel ratio sensor and heated oxygen sensor connectors before attaching the heated oxygen sensor wire harness clamp. The front No. 2 exhaust pipe assembly installation requires another new gasket which should be matched to the exhaust manifold LH using 3 new nuts torqued to 54 Nm (554 kgf-cm, 40 ft-lbf) standards while connecting the sensor connectors. The installation of the center exhaust pipe assembly requires verifying the compression spring's free length with a vernier caliper before proceeding; replace the spring if its measurement is under 43 mm (1.693 in.). You should install two new gaskets onto the front exhaust pipe and front No. 2 exhaust pipe before attaching the center exhaust pipe to its 3 exhaust pipe supports using 4 bolts and 2 compression springs which need to be torqued to 43 Nm (438 kgf-cm, 32 ft-lbf) for the front exhaust pipe while being torqued to 48 Nm (489 kgf-cm, 35 ft-lbf) for the front No. 2 exhaust pipe. The installation of 2 exhaust pipe damper bolts to the tailpipe requires a 19 Nm (194 kgf-cm, 14 ft-lbf) torque setting. The tailpipe assembly procedure starts with mounting it to the two exhaust pipe supports before placing a new gasket on the center exhaust pipe and fastening the tailpipe to the pipe using a new clamp and bolt secured at 32 Nm torque (326 kgf-cm, 24 ft-lbf) within the designated angular area. After leak inspection check the installation of the No. 2 engine under cover.
Pipe Assembly, Exhaust, Center
17420-38100
Q: How to remove the exhaust pipe on Toyota Land Cruiser?
A:
The process to remove an exhaust pipe begins with protective glove usage along with waiting until the pipe cools following engine poweroff. Commence the process by taking out the No. 2 engine under cover. Then remove the tailpipe assembly by first taking out its bolt and clamp and gasket and finally remove the tailpipe from the center exhaust pipe and its two supports. The exhaust pipe damper can be removed by disconnecting its two mounting bolts which secure the pipe to the tailpipe. The center exhaust pipe assembly requires removal of four bolts along with two compression springs before you can extract the pipe from its three supports together with the two front exhaust pipe and front No.2 exhaust pipe gaskets. Disconnect both air fuel ratio sensor and heated Oxygen Sensor connectors from the front No. 2 exhaust pipe assembly before extracting the front No. 2 exhaust pipe and its gasket from Exhaust Manifold LH through removal of three nuts. The disconnection procedure must be performed twice on the air fuel ratio sensor and heated oxygen sensor connectors for the front exhaust pipe assembly followed by removing the front exhaust pipe and its gasket from the exhaust manifold RH by detaching the heated oxygen sensor wire harness clamp and unscrewing three nuts. The maintenance procedure includes removal of Bank 1 Sensor 1 and Bank 2 Sensor 1 air fuel ratio sensors together with the No. 2 heated oxygen sensor for Bank 1 Sensor 2 and the heated oxygen sensor for Bank 2 Sensor 2.
