How to install the Canister Purge Valve on Toyota Land Cruiser?

Install the Canister Purge Valve by attaching the purge VSV through its bolt while achieving a torque setting of 21 Nm (214 kgf-cm, 15 ft-lbf). Connect the purge VSV connector as the next installation step. Align the height of the claw on the clip to the top position before you attach the two hoses properly. The V-bank cover sub-assembly installation follows the previous steps. The last installation step involves attaching the cable to the negative terminal of the battery.

How to service and repair the Canister Purge Valve on Toyota Land Cruiser?

A necessary prerequisite for Canister Purge Valve maintenance is disconnecting the negative battery cable then waiting a minimum of 90 seconds to stop Air Bag and seat belt pretensioner activation. Start the service by disconnecting both the V-bank cover sub-assembly and the purge VSV from its connector. Once the two hoses are removed along with the bolt the purge VSV can be freed from the intake manifold. The purge VSV installation requires the use of the bolt to secure it followed by hose reconnection and attachment of the purge VSV connector. Reinstall the V-bank cover sub-assembly before connecting the negative battery terminal cable. The final step involves initialization because some systems need an initialization sequence when disconnecting and reconnecting the cable from the negative battery terminal.

OEM Toyota Land Cruiser Canister Purge Valve

Vapor Canister Purge Valve EVAP

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Canister Purge Valves found

View related parts

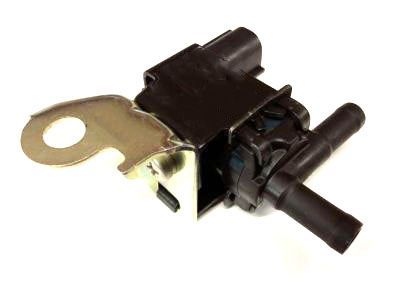

Toyota Land Cruiser Vacuum Switch
Part Number: 90910-12268
$101.07 MSRP: $141.87
You Save: $40.80 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve, Vacuum Switch; Vapor Canister Purge Solenoid; EGR Vacuum Solenoid; Vacuum Delay Valve; Vacuum Valve
- Replaces: 90910-12130
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2002 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Vacuum Valve
Part Number: 25860-50160
$111.02 MSRP: $155.84
You Save: $44.82 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Vacuum Switching; Vacuum Regulator; Valve
- Manufacturer Note: NO.1
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Vacuum Switch
Part Number: 25860-50100
$97.63 MSRP: $137.05
You Save: $39.42 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Vacuum Switching; Vapor Canister Purge Solenoid; Vacuum Valve; Valve
- Manufacturer Note: NO.1
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2005 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Vacuum Switch
Part Number: 25860-46010
$82.11 MSRP: $115.26
You Save: $33.15 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Vacuum Switching; EGR Vacuum Delay Valve; Secondary Air Injection Check Valve; Diverter Valve; Vacuum Valve; Valve; Valve, Vacuum Switching; Vacuum Delay Valve
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Valve Assembly, Vacuum Switching, Front
Part Number: 25860-0S020
$89.57 MSRP: $125.74
You Save: $36.17 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Secondary Air Injection Check Valve; Vacuum Delay Valve; Diverter Valve
- Position: Front
- Replaces: 25860-31060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2020, 2008-2011 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Valve Assembly, Vacuum Switching
Part Number: 25860-50150
$110.67 MSRP: $155.34
You Save: $44.67 (29%)
Product Specifications
- Manufacturer Note: NO.2
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2005 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS

Toyota Land Cruiser Canister Purge Valve

Choose genuine Canister Purge Valve that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Canister Purge Valve for your Toyota Land Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Land Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Land Cruiser Canister Purge Valve Parts and Q&A

Valve Assembly, Vacuum Switching, Front
25860-0S020
Q: How to install the Canister Purge Valve on Toyota Land Cruiser?
A:
Install the Canister Purge Valve by attaching the purge VSV through its bolt while achieving a torque setting of 21 Nm (214 kgf-cm, 15 ft-lbf). Connect the purge VSV connector as the next installation step. Align the height of the claw on the clip to the top position before you attach the two hoses properly. The V-bank cover sub-assembly installation follows the previous steps. The last installation step involves attaching the cable to the negative terminal of the battery.
Vacuum Switch
25860-46010
Q: How to service and repair the Canister Purge Valve on Toyota Land Cruiser?
A:
A necessary prerequisite for Canister Purge Valve maintenance is disconnecting the negative battery cable then waiting a minimum of 90 seconds to stop Air Bag and seat belt pretensioner activation. Start the service by disconnecting both the V-bank cover sub-assembly and the purge VSV from its connector. Once the two hoses are removed along with the bolt the purge VSV can be freed from the Intake Manifold. The purge VSV installation requires the use of the bolt to secure it followed by hose reconnection and attachment of the purge VSV connector. Reinstall the V-bank cover sub-assembly before connecting the negative battery terminal cable. The final step involves initialization because some systems need an initialization sequence when disconnecting and reconnecting the cable from the negative battery terminal.
