OEM Toyota Fuel Tank Lock Ring

Fuel Tank Retainer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Model

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Fuel Tank Lock Rings found

View related parts

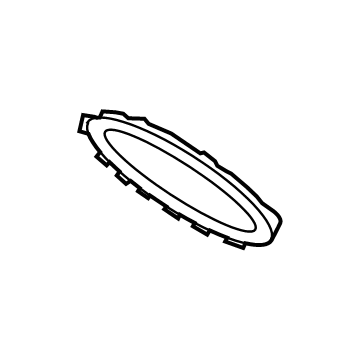

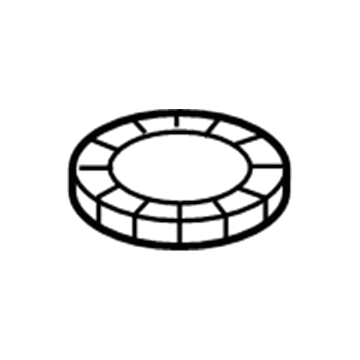

Toyota Retainer, Fuel Pump
Part Number: 77144-52040
$33.21 MSRP: $46.22
You Save: $13.01 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Lock Ring
- Position: Upper
Fits the following Toyota Models:
- Yaris | 2007-2012 | Base, S | 4 Cyl 1.5 L GAS
View related parts

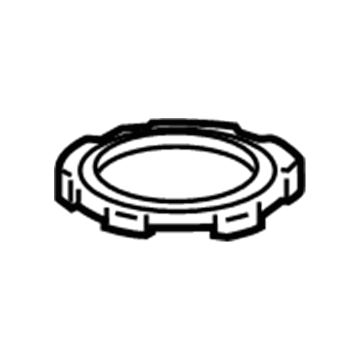

Toyota Retainer, Fuel Pump Gauge
Part Number: 77144-35010
$43.73 MSRP: $60.87
You Save: $17.14 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring
Fits the following Toyota Models:
- 4Runner | 2003-2023 | 40th Anniversary Edition, Limited, Nightshade, Sport, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
- FJ Cruiser | 2007-2014 | Base, Trail Teams Special Edition, TRD Special Edition | 6 Cyl 4.0 L GAS
View related parts

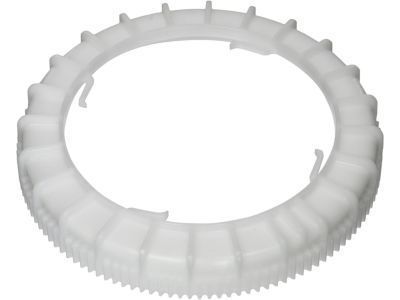

Toyota Retainer
Part Number: 77144-14040
$22.57 MSRP: $31.42
You Save: $8.85 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- Supra | 1993-1998 | Base, Twin Turbo | 6 Cyl 3.0 L GAS
View related parts

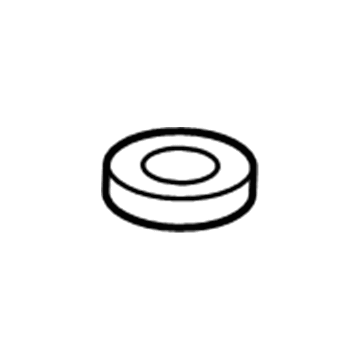

Toyota Fuel Pump Retainer
Part Number: 77144-08010
$59.02 MSRP: $82.16
You Save: $23.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring; Plate Retainer; Fuel Pump Assembly Retainer; Check Valve Retainer; Retainer; Retainer, Fuel Pump Gauge
- Manufacturer Note: NO.1
Fits the following Toyota Models:
- Highlander | 2011-2019 | Base, LE, LE Plus, Limited, Limited Platinum, Plus, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
- Sequoia | 2008-2022 | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
- Sienna | 2004-2020 | Base, CE, L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Limited, XLE Premium | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
- Tundra | 2005-2021 | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View More
View related parts

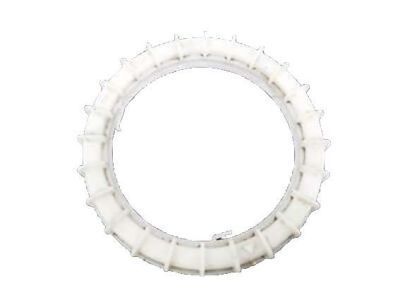

Toyota Retainer, Fuel Pump Gauge
Part Number: 77144-04010
$43.25 MSRP: $60.19
You Save: $16.94 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring
- Replaces: 77144-47020, 77144-04020
Fits the following Toyota Models:
- Corolla | 2005-2019 | 50th Anniversary Special Edition, Base, CE, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
- Land Cruiser | 2013-2021, 2008-2011 | Base, Heritage Edition | 8 Cyl 5.7 L GAS
- Matrix | 2005-2013 | Base, S, XR, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
- Tacoma | 2005-2023 | Base, Limited, Pre Runner, SR, SR5, Trail, Trail Special Edition, TRD Off-Road, TRD Pro, TRD Sport, X-Runner | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 4.0 L GAS
View More
View related parts

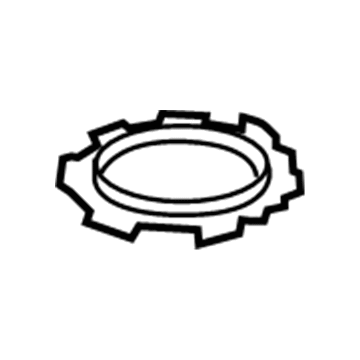

Toyota Fuel Pump Assembly Lock Ring
Part Number: SU003-01023
$42.26 MSRP: $54.70
You Save: $12.44 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Ring Nut; Fuel Tank Sending Unit Lock Ring; Fuel Tank Lock Ring; Sending Unit Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- 86 | 2017-2020 | Base, GT, Hakone Edition, Special Edition, TRD Special Edition | 4 Cyl 2.0 L GAS
View related parts

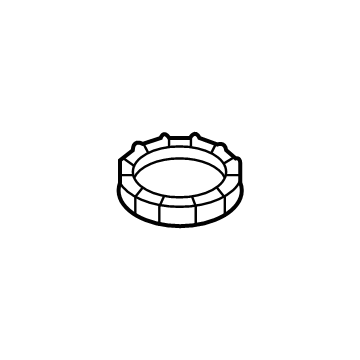

Toyota Fuel Pump Assembly Lock Ring
Part Number: SU003-09068
$53.81 MSRP: $74.91
You Save: $21.10 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Ring Nut; Fuel Tank Lock Ring; Flange Cover Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- GR86 | 2022-2023 | 10th Anniversary Special Edition, Base, Premium | 4 Cyl 2.4 L GAS
View related parts

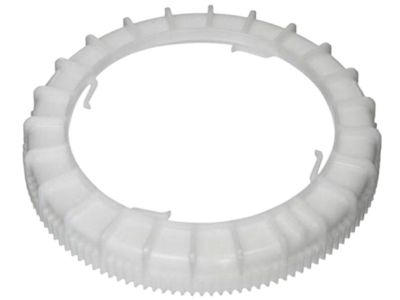

Toyota Fuel Pump Assembly Retainer
Part Number: 77144-WB002
$46.77 MSRP: $65.10
You Save: $18.33 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- Yaris | 2019-2020 | L, LE, XLE | 4 Cyl 1.5 L GAS
- Yaris iA | 2017-2018 | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Access Cover
Part Number: 77144-WB001
$45.91 MSRP: $63.91
You Save: $18.00 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Access Cover; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- Yaris | 2019-2020 | L, LE, XLE | 4 Cyl 1.5 L GAS
- Yaris iA | 2017-2018 | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Lock Nut
Part Number: 77144-WAA01
$12.86 MSRP: $17.90
You Save: $5.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- GR Supra | 2020-2024 | 45th Anniversary Edition, A91 Edition, A91-MT Edition, Base, Launch Edition, Premium | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Retainer, Fuel Pump Gauge
Part Number: 77144-48020
$43.25 MSRP: $60.19
You Save: $16.94 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump
Fits the following Toyota Models:
- Highlander | 2004-2010 | Base, Limited, SE, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Retainer, Fuel Pump Gauge
Part Number: 77144-48010
$48.03 MSRP: $66.85
You Save: $18.82 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump
Fits the following Toyota Models:
- Highlander | 2004-2010 | Base, Limited, SE, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Fuel Pump Assembly Lock Ring
Part Number: 77144-47050
$27.95 MSRP: $38.90
You Save: $10.95 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- Prius V | 2012-2017 | Five, Four, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Fuel Pump Assembly Lock Ring
Part Number: 77144-47041
$28.43 MSRP: $39.56
You Save: $11.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring; Retainer, Fuel Pump Gauge
Fits the following Toyota Models:
- Prius | 2012-2015 | Five, Four, One, Persona Series, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
- Prius Plug-In | 2012-2015 | Base | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Fuel Pump Assembly Lock Ring
Part Number: 77144-47040
$28.43
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Lock Ring; Retainer, Fuel Pump Gauge
- Replaced by: 77144-47041
Fits the following Toyota Models:
- Prius | 2010-2011 | Base | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Plate Retainer
Part Number: 77144-08020
$45.16 MSRP: $62.86
You Save: $17.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Check Valve Retainer; Retainer, Fuel Pump Gauge
- Manufacturer Note: NO.2
Fits the following Toyota Models:
- Highlander | 2011-2013 | Base, Limited, Plus, SE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Retainer, Fuel Pump Gauge
Part Number: 77144-06040
$24.96 MSRP: $34.75
You Save: $9.79 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Retainer, Fuel Pump; Fuel Tank Lock Ring
- Manufacturer Note: (L)
- Replaces: 77144-F4010, 77144-30030
Fits the following Toyota Models:
- Avalon | 2019-2022 | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- C-HR | 2018-2022 | LE, Limited, Nightshade, XLE, XLE Premium | 4 Cyl 2.0 L GAS
- Camry | 2018-2024 | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, L, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- Corolla | 2019-2024 | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, Nightshade, SE, SE Apex, SE Nightshade, XLE, XSE, XSE Apex | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
- Corolla Cross | 2022-2023 | Hybrid S, Hybrid SE, Hybrid XSE, L, LE, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS
- Crown | 2023 | Limited, Platinum, XLE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
- GR Corolla | 2023 | Circuit Edition, Core, Morizo Edition | 3 Cyl 1.6 L GAS
- Grand Highlander | 2024 | Hybrid Limited, Hybrid Platinum, Hybrid XLE, Limited, Platinum, XLE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
- Highlander | 2020-2023 | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
- Prius | 2016-2023 | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View More

Toyota Fuel Tank Lock Ring

OEM parts deliver unmatched quality you can rely on. They pass extensive quality control inspections. Toyota produces them to the official factory specifications. This process helps prevent defects and imperfections. So you can get exceptional lifespan and a flawless fit. Need new OEM Toyota Fuel Tank Lock Ring? You'll love our wide selection of genuine options. Shop in minutes and skip the hunt. Our prices are unbeatable, you'll save time and money. It's easy to shop and find the right piece. Our committed customer service team gives professional help from start to finish. Every part includes a manufacturer's warranty. We ship quickly, your parts will arrive fast at your door.

The Toyota Fuel Tank Lock Ring ensures the fuel pump module is well sealed. The brand is known to be a combination of reliability, efficiency and intelligent design. Lean production, which reduces waste and makes it easy to fix a problem quickly, has earned Toyota respect globally since 1937, and the recent TNGA platform offers sharper handling and more crash protection. The Hybrid Synergy Drive is now upgraded and the 2024 RAV4 Plug-in Hybrid demonstrates how Toyota is willing to push the boundaries of cleaner performance, and Toyota continues to value durability, providing a piece of hardware that its customers can count on over a long period of time. A Fuel Tank Lock Ring is a metal or reinforced polymer ring that is rugged, which clamps the pump and sender to the tank opening, compresses the gasket and prevents leaks of fuel or vapours. To install a Fuel Tank Lock Ring, it is important to park somewhere ventilated, in a spark-free place, de-attach the battery, and release the fuel pressure. Place a jack under the tank to support it, but get it up only to reach the pump flange, and then wipe down the dirt to prevent the falling of grit into the tank. Change to a new O-ring seal, fit the tabs of the module into the slots of the tank, and press the gasket flat. Install the new Fuel Tank Lock Ring on the threads, position a locking tool or drift to clockwise and keep turning it until the marks fit. Reconnect hose and wire, lift and fix the tank, reconnect battery, press the key and cycle the system to start up, and ensure there are no leaks before driving your Toyota once again.
