OEM Toyota FJ Cruiser Emblem

Toyota FJ Cruiser Emblem Parts and Q&A

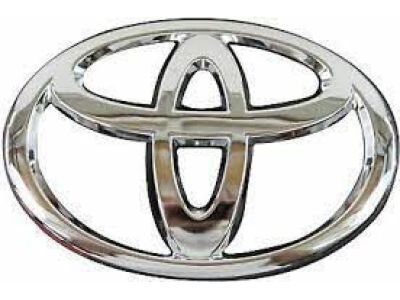

• Nameplate, Rear
  75445-35080
  Q: How to install the rear Emblem on Toyota FJ Cruiser?

  A:

  The procedure to install the rear name plate starts with using an infrared lamp to heat double-sided adhesive tape on the back door panel to 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) for 1 to 2 minutes. Then use a shop rag or cloth to remove the tape from the hot surface until it is fully removed to avoid adhesion failure. The appropriate installation method includes cleaning the surface with a non-residue solvent before pin alignment followed by installing the rear name plate in areas with temperatures above 20 degrees Celsius (68 degrees Fahrenheit). Heating both the back door panel and the name plate to 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit) becomes necessary when the temperature falls below 20 degrees Celsius (68 degrees Fahrenheit). Both cleaning and heating the No. 2 back door name plate must occur and users need to ensure that the attachment surface is adhesive-free before the installation. Keep the environment between 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit). The installation process for the No. 1 back door name plate should include the steps of cleaning followed by heating and proper surface preparation before attachment.

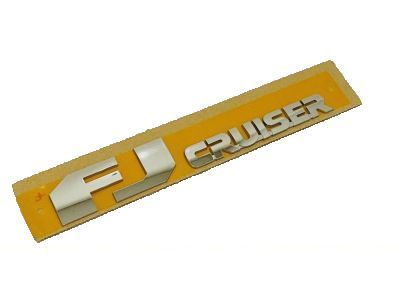

• Nameplate, Rear
  75446-52050
  Q: How to remove the Emblem from the back door on Toyota FJ Cruiser?

  A:

  Protective tape should be applied to the back door panel surrounding the No. 1 back door name plate before heating the area to 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) using an infrared light for one to two minutes with caution to avoid burns. A gasket scraper equipped with protected tape should be used to lower peel away and remove the No.1 back door name plate after adhesive surface removal before removing protective tape. The process should be repeated with the No. 2 back door name plate and the rear name plate where protective tape is first applied and then heated with an infrared light and removed with a gasket scraper under a safety protocol.
