OEM Toyota FJ Cruiser Wiper Motor

Toyota FJ Cruiser Wiper Motor Parts and Q&A

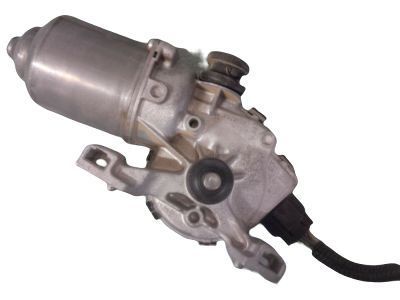

• Wiper Motor, Front
  85110-60390
  Q: How to install the front wiper motor on Toyota FJ Cruiser?

  A:

  First install the front wiper motor by securing it into position using a Torx socket wrench T30 to fasten the 2 bolts at 7.5 Nm (76 kgf-cm, 66 in-lbf). Start by applying Denso No. 50 grease on the crank arm pivot before installing the rod over it while repeating the greasing steps. Proceed by attaching the rubber pin to the body at its intended slot and connect the connector followed by tightening bolt A, bolt B, and 3 bolts C to 7.0 Nm (71 kgf-cm, 61 in-lbf). First fix the cowl top ventilator louver LH using 5 clips while engaging 7 claws then proceed with connecting the cowl top ventilator louver RH through 3 clips and 1 claw before applying the hood to cowl top seal with a clip. Install the cowl top ventilator louver sub-assembly with 7 clips before adding 4 new clips to the front fender side panel upper LH and using them to fasten the panel along with the same procedure for the front fender side panel upper RH. Press the antenna ornament to the indicated points and then install the front wiper arm assembly LH by first removing metal powder from wiper arm serrations with a round file before cleaning wiper pivot serrations and wiper alignment with automatic stop position and windshield mark before tightening the nut to 25 Nm (255 kgf-cm, 18 ft-lbf). The same installation steps should be applied when you handle the front wiper arm and blade assembly RH. To finish the installation you should begin with securing the wiper arm cover through the claw mechanism using three clips and then connect the cable to the negative battery terminal at 3.9 Nm of torque strength (40 kgf-cm, 35 in-lbf).

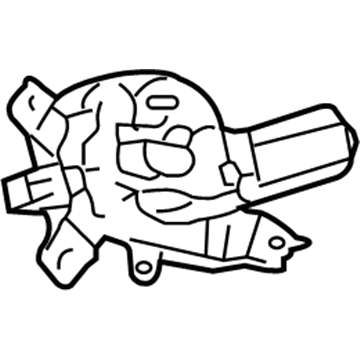

• Motor Assembly, Rear
  85130-35091
  Q: How to remove the rear wiper motor on Toyota FJ Cruiser?

  A:

  A proper start to removing the rear wiper motor requires disconnecting the cable from the battery terminal. Wipe off the back door trim cover first from the right side then from the left side. Begin the procedure by removing both door trim retainer cap as well as back door trim board. The following step entails removing the back door service hole cover. You should start by opening the rear wiper arm head cap before you take out the nut and both wiper arm and blade components. To finish the removal task disconnect the connector from the rear wiper motor before removing its securing bolts.
