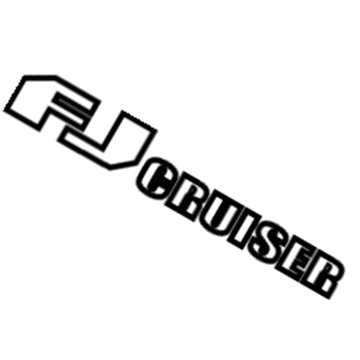

Toyota 75445-35080
Nameplate, Rear

First cover back door panel No. 1 with tape before heating the name plate surface to 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) using an infrared light during a 1 to 2-minute period while maintaining safety from burns. The gasket scraper with taped tip needs to ease off adhesive layers from the No. 1 back door name plate before the protective tape can be removed next. Properly prepare other name plates starting with the No. 2 back door and ending with the rear name plate by applying tape then heating them with infrared light followed by removal using the wrapped gasket scraper for safety.

The procedure to install the rear name plate starts with using an infrared lamp to heat double-sided adhesive tape on the back door panel to 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) for 1 to 2 minutes. Then use a shop rag or cloth to remove the tape from the hot surface until it is fully removed to avoid adhesion failure. The appropriate installation method includes cleaning the surface with a non-residue solvent before pin alignment followed by installing the rear name plate in areas with temperatures above 20 degrees Celsius (68 degrees Fahrenheit). Heating both the back door panel and the name plate to 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit) becomes necessary when the temperature falls below 20 degrees Celsius (68 degrees Fahrenheit). Both cleaning and heating the No. 2 back door name plate must occur and users need to ensure that the attachment surface is adhesive-free before the installation. Keep the environment between 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit). The installation process for the No. 1 back door name plate should include the steps of cleaning followed by heating and proper surface preparation before attachment.

Install the new rear name plate in an environment above 20°C (68°F); if below, heat both the back door panel and the name plate to 20 to 30°C (68 to 86°F) before installation.

Apply protective tape around each, heat them with the infrared light, and use the gasket scraper to remove them while ensuring safety from burns.

Rub off the tape with a shop rag or cloth while it is still hot, ensuring complete removal to prevent adhesion failure.
