How to service and repair the water pump on Toyota Celica?

The water pump repair process starts by taking off the RH engine under cover followed by coolant draining then removal of the drive belt. Service technicians should remove six bolts followed by the water pump and O-ring from the 1ZZ-FE engine before cleaning away all engine coolant from the water chamber room. Special Service Tool: 09960-10010 (09962-01000, 09963-00600) enables the removal of 4 water pump pulley set bolts before extracting the water pump pulley and its 6 bolts along with the O-ring and cleaning engine coolant from the water chamber room. The replacement process of the water pump should avoid the removal of the RH engine mounting bracket or generator. The water pump inspection requires visually checking the drain hole for coolant leakage before necessary water pump replacement. Normally rotate the pulley to check water pump bearing performance before deciding to replace the water pump. When installing the water pump on the 1ZZ-FE engine use a new O-ring on the timing chain cover after proper installation with 6 bolts which require 9.0 Nm (92 kgf-cm, 80 inch lbs.) torque on Bolt A followed by 11 Nm (113 kgf-cm, 8 ft. lbs.) torque on Bolt B. The bolt A length should be 30 mm (1.18 inch) while bolt B length should be 35 mm (1.38 inch). When installing the water pump on the 2ZZ-GE engine, workers must first install a new O-ring onto the timing chain cover and then use 9.0 Nm (92 kgf-cm, 80 inch lbs.) torque to fasten the 6 wall bolts and subsequently install the water pump pulley before using Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to tighten 4 water pump pulley set bolts to 15 Nm (153 kgf-cm, 11 ft. lbs.). The procedure ends with reinstallation of the RH engine under cover as well as the drive belt and engine coolant filling before starting the engine to verify leak points and inspecting coolant levels again.

OEM Toyota Celica Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Water Pumps found

View related parts

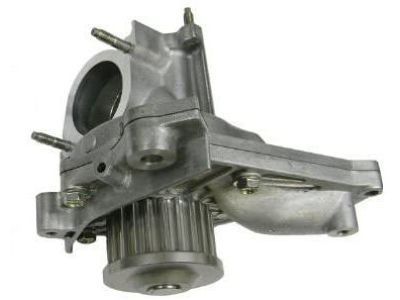

Toyota Celica Water Pump
Part Number: 16100-69076-77
$57.24 MSRP: $79.83
You Save: $22.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump
- Replaces: 16100-69075-84, 16100-69076
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986 Toyota Celica | GT, ST | 4 Cyl 2.0 L GAS
View related parts

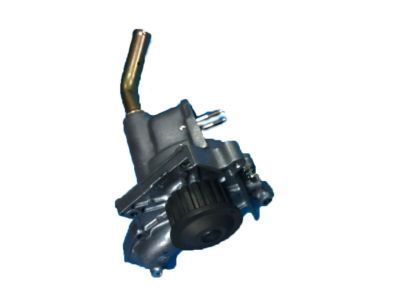

Toyota Celica Water Pump
Part Number: 16100-39317-77
$45.02 MSRP: $62.79
You Save: $17.77 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump
- Replaces: 16100-39315, 16100-39316, 16110-38031, 16100-39316-84, 16110-39035, 16110-38030, 16100-39317
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST | 4 Cyl 2.4 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-79185-83
$78.38 MSRP: $110.24
You Save: $31.86 (29%)
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Engine Water Pump Assembly; Engine Water Pump
- Replaces: 16100-09040, 16100-79186, 16100-09041, 16100-79075, 16100-79075-84, 16100-79185, 16100-79075-77
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1999, 1987-1989 Toyota Celica | GT, GTS, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-79135-83
$78.99 MSRP: $111.10
You Save: $32.11 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Engine Water Pump
- Replaces: 16100-79135, 16100-79136
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1991 Toyota Celica | GT | 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-79127
$139.11 MSRP: $196.93
You Save: $57.82 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly
- Replaces: 16100-79126
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | All Trac, GTS All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-39346-83
$67.24 MSRP: $94.56
You Save: $27.32 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly
- Replaces: 16100-39346, 16100-39345
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985 Toyota Celica | GT, GTS, ST | 4 Cyl 2.4 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-19305-83
$75.15 MSRP: $105.72
You Save: $30.57 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Engine Water Pump
- Replaces: 16100-19265, 16100-19305
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1997 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-29095
$108.90
ADD TO CART
Product Specifications
- Other Name: Engine Water Pump; Water Pump Assembly; Pump Assembly, Engine Water
- Manufacturer Note: (J)
- Replaced by: 16100-09170
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-29145
$121.72 MSRP: $172.31
You Save: $50.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Engine Water Pump; Water Pump Assembly; Pump Assembly, Engine Water
- Replaced by: 16100-29146
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-29415-83
$54.79 MSRP: $76.43
You Save: $21.64 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-19205-84
$57.12 MSRP: $79.66
You Save: $22.54 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Water, Reman; Engine Water Pump; Water Pump Assembly
- Replaces: 16100-15080, 16100-19205
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | ST | 4 Cyl 1.6 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16110-19076
$72.39 MSRP: $101.62
You Save: $29.23 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water L/C; Engine Water Pump; Water Pump Assembly; Pump Assembly, Water, W/O Coupling
- Replaces: 16110-15080, 16110-19075
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1993 Toyota Celica | ST | 4 Cyl 1.6 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-49656-77
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly
- Replaces: 16100-49655-84, 16100-49655, 16100-49656
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Celica | Supra | 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-79106
Product Specifications
- Other Name: Pump Assembly, Water
- Replaces: 16100-79105
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Celica | All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Water Pump
Part Number: 16100-79096
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump
- Replaces: 16100-79045, 16100-79095
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GTS | 4 Cyl 2.0 L GAS

Toyota Celica Water Pump

Choose genuine Water Pump that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Water Pump for your Toyota Celica? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Water Pump in Toyota Celica cars helps pump coolant from the radiator and it circulates the coolant to and from the engine to absorb heat produced during combustion. In majority of the Celica models, the designers incorporated a belt-driven water pump with an impeller for circulating water through the engine block or block of frozen food and out to the radiator. Whether the water pump in question has been an older model or one of the contemporary models, the manufacturers in the recent past have replaced cast iron with the lightweight aluminum material. Signs of a faulty water pump include, water on the driveway after the engine has been running, loud noises which come from the bearings of the water pump and, the engine overheating. Special high-performance water pumps with stronger impellers and better internal channels to boost circulation and minimize get loss can be fitted on high-performance engines. In the other hand electric water pump may also be used for better cooling and efficiency where space control is an issue, this is especially for custom built applications.

Toyota Celica Water Pump Parts and Q&A

Water Pump
16100-29095
Q: How to service and repair the water pump on Toyota Celica?
A:
The water pump repair process starts by taking off the RH engine under cover followed by coolant draining then removal of the Drive Belt. Service technicians should remove six bolts followed by the water pump and O-ring from the 1ZZ-FE engine before cleaning away all engine coolant from the water chamber room. Special Service Tool: 09960-10010 (09962-01000, 09963-00600) enables the removal of 4 water pump pulley set bolts before extracting the water pump pulley and its 6 bolts along with the O-ring and cleaning engine coolant from the water chamber room. The replacement process of the water pump should avoid the removal of the RH engine mounting bracket or generator. The water pump inspection requires visually checking the drain hole for coolant leakage before necessary water pump replacement. Normally rotate the pulley to check water pump bearing performance before deciding to replace the water pump. When installing the water pump on the 1ZZ-FE engine use a new O-ring on the timing chain cover after proper installation with 6 bolts which require 9.0 Nm (92 kgf-cm, 80 inch lbs.) torque on Bolt A followed by 11 Nm (113 kgf-cm, 8 ft. lbs.) torque on Bolt B. The bolt A length should be 30 mm (1.18 inch) while bolt B length should be 35 mm (1.38 inch). When installing the water pump on the 2ZZ-GE engine, workers must first install a new O-ring onto the timing chain cover and then use 9.0 Nm (92 kgf-cm, 80 inch lbs.) torque to fasten the 6 wall bolts and subsequently install the water pump pulley before using Special Service Tool: 09960-10010 (09962-01000, 09963-00600) to tighten 4 water pump pulley set bolts to 15 Nm (153 kgf-cm, 11 ft. lbs.). The procedure ends with reinstallation of the RH engine under cover as well as the drive belt and engine coolant filling before starting the engine to verify leak points and inspecting coolant levels again.
