OEM Toyota Celica Radiator
Cooling Radiator- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
18 Radiators found

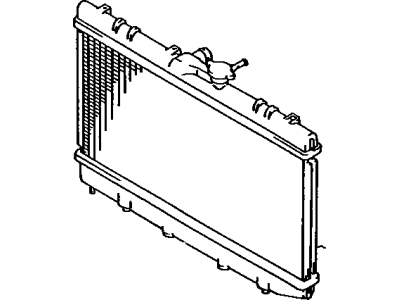

Toyota Celica Radiator Assembly
Part Number: 16400-22070$324.63 MSRP: $463.49You Save: $138.86 (30%)
Toyota Celica Radiator
Choose genuine Radiator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Radiator for your Toyota Celica? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.
The Toyota Celica Radiator on the vehicle is the one that assists in the cooling system to dissipate heat from the engine coolant and pass through a heat exchange method. Almost all Celica Radiators have aluminum core with the tanks being either plastic or aluminum, although there are some that use copper/brass. The Radiator is fitted at the front of the automobile to expose the core as much as possible to the flow of air for proper heat exchange. Performance Radiators are available with better than OEM alternatives due to improved designs that enhance the coolant circuit and improved surfaces to allow for better heat dissipation and thereby better engine cooling. Both direct fit Celica Radiators and universal ones are crucial elements when discussing external conditions for the car's engine, particularly avoiding overheating.
Toyota Celica Radiator Parts and Q&A
- Q: How to remove and install the radiator on Toyota Celica?A:The radiator removal process requires a sequence of draining engine coolant from the system followed by the upper front fender apron seal and upper radiator support seal removal. The next sequence involves disconnecting 3 radiator reservoir hoses followed by removing the bolt to take out bumper cover, air cleaner and engine coolant reservoir. The radiator assembly removal starts with disconnecting the No. 1 and No. 2 electric cooling fan connectors followed by upper and lower radiator hoses removal and disconnection of the 2 A/T oil cooler hoses. Begin by removing three bolts securing the hood lock followed by two bolts and the center brace then you must disconnect two bolts, two nuts, two condenser upper supports, then separate the bolt needed to release the cruise control actuator if the system is present. The installation begins by removing two radiator upper support bolts and radiator upper support then moves to the upper radiator support bushings followed by installing the radiator assembly together with its two lower radiator support bushings. The electric cooling fan from the radiator can be taken away after removing the 2 bolts which hold the cooling fan assembly in place. During installation begin by attaching the electric cooling fan to the radiator through its 2 bolts then torque them to 5.0 Nm (51 kgf-cm, 44 inch lbs.). The installation process starts with 2 lower radiator support bushings before adding the radiator assembly and then continuing with 2 upper radiator support bushings and the radiator upper support bolted with 2 bolts. A cruise control system requires installation of the cruise control actuator first using 3 bolts followed by installation of the 2 condenser upper supports with their respective 2 bolts and nuts then the center brace with its 2 bolts and the hood lock with its 3 bolts. The procedure requires connecting the A/T oil cooler hoses together with both lower and upper radiator hoses and attaching the No. 1 and No. 2 electric cooling fan connectors. The installation of the engine coolant reservoir requires a 5.0 Nm torque on the bolt and subsequent connection of its 3 radiator reservoir hoses. To finish the procedure install the air cleaner then attach the bumper cover before filling the engine with coolant and adding both upper front fender apron and upper radiator support seals followed by engine start-up to check for any coolant leaks.
- Q: How to clean the radiator on Toyota Celica?A:The vehicle radiator cleaning process begins with blocking fin inspection followed by water or steam cleaning for clogged fins then compressed air drying while keeping a safe distance from fins to prevent damage. The straightening of distorted fins requires using a screwdriver or pliers alongside caution against exposing electronic parts to moisture.
