How to service and repair the A/C Compressor Clutch on Toyota 4Runner?

Repairs and services of the compressor clutch need to begin with disassembly. Remove the pressure plate with Special Service Tool: 07112-76060 and a socket wrench before removing the shaft bolt while maintaining 13.2 N.m (135 kgf.cm, 9 ft.lbf) torque. Use Special Service Tool: 07112-66040 to fix the pressure plate onto a work surface and remove the pressure plate with both Special Service Tool: 07112-66040 and 07112-76060 while using a socket wrench before extracting the shims from the plate. Use Special Service Tool: 95994-10020 to remove the snap ring while keeping it beveled upwards before tapping off the rotor gently using a plastic hammer on the shaft while watching for pulley damage. Special Service Tool: 95994-10020 removes snap rings where the beveled side should face upward so the user can extract the stator. The reverse order of what was used in disassembly becomes the reassembly protocol. The magnetic clutch clearance needs verification through this procedure: mounting the dial indicator on the pressure plate yet connecting the magnetic clutch wire to the positive battery terminal along with using the negative terminal to test the pressure plate and rotor gap. The approved measurement for clearance stands at 0.5 plus or minus 0.15 mm (0.020 plus or minus 0.0059 in.). To correct the clearance within its specifications you must use shims which provide three standardized thickness levels at 0.1 mm (0.004 in.), 0.3 mm (0.012 in.) as well as 0.5 mm (0.020 in.).

How to remove and replace the A/C Compressor Clutch on Toyota 4Runner?

The first step to replace or remove the compressor and magnetic clutch of the 1GR-FE engine requires refrigerant discharge from the refrigeration system. The first step includes detaching both engine under cover sub-assembly No.1 and the fan and generator V belt from the system. A technician can disconnect the discharge hose sub-assembly through the removal of its nut followed by the O-ring followed by the application of vinyl tape to seal openings to stop the entry of moisture and foreign matter. Perform the same procedure on the suction hose sub-assembly by unbolted the nut and O-ring before properly sealing the openings with vinyl tape. You should disconnect the connector followed by removing the four bolts which secure the compressor alongside the magnetic clutch. To install the compressor with magnetic clutch use four bolts that should be torqued to 24 N.m (245 kgf.cm, 18 ft.lbf) after securing both components together. Installation of the suction hose sub-assembly requires vinyl tape removal and O-ring fitting with compressor oil (ND-OIL 8 or equivalent) to new O-ring and surface before installing the O-ring and securing the hose with the nut to 9.8 N.m torque (100 kgf.cm, 87 in.lbf). Rephrase this procedure for the discharge hose sub-assembly by applying compressor oil on both the new O-ring and fitting surface then tighten the nut to 9.8 N.m (100 kgf.cm and 87 in.lbf). The last steps involve installing the fan and generator V belt followed by engine under cover sub-assembly No.1 components together with refrigerant charging and engine heating before inspecting for any leaked refrigerant.

OEM Toyota 4Runner A/C Compressor Clutch

Air Conditioning Clutch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

19 A/C Compressor Clutches found

View related parts
Toyota 4Runner Clutch Assembly Part Number: 88410-34040
$144.98 MSRP: $205.24
You Save: $60.26 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Replaces: 88410-30440
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota 4Runner | Base | 4 Cyl 2.7 L GAS
View related parts
Toyota 4Runner Clutch Assembly Part Number: 88410-35340
$152.74 MSRP: $216.22
You Save: $63.48 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Manufacturer Note: DEALER OPTION
- Replaces: 88410-04030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota 4Runner | Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Clutch & Pulley Part Number: 88410-0C040
$164.14 MSRP: $232.36
You Save: $68.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, Sport, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota 4Runner Clutch Part Number: 88410-35430
$220.87 MSRP: $315.36
You Save: $94.49 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, Sport, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota 4Runner Clutch Part Number: 88410-35110
$135.23 MSRP: $191.43
You Save: $56.20 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Manufacturer Note: DEALER OPTION
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1995 Toyota 4Runner | SR5 | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Rotor Part Number: 88412-35090
$342.26 MSRP: $501.58
You Save: $159.32 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts

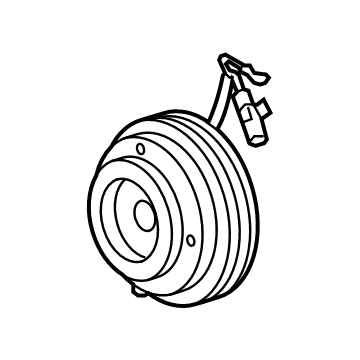

Toyota 4Runner Clutch Assembly, Magnet Part Number: 88410-60530
$522.77 MSRP: $766.13
You Save: $243.36 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: CLUTCH ASSY, MAGNET
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2025 Toyota 4Runner | Limited, SR5, TRD Off-Road, TRD Off-Road Premium, TRD Sport, TRD Sport Premium | 4 Cyl 2.4 L GAS
View related parts
Toyota 4Runner Clutch Part Number: 88410-60450
$555.12 MSRP: $813.53
You Save: $258.41 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 6 Cyl 4.0 L GAS
View related parts
Toyota 4Runner Clutch Assembly Part Number: 88410-6A140
$150.04 MSRP: $212.40
You Save: $62.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Manufacturer Note: AIR CONDITIONER-WITHOUT
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010 Toyota 4Runner | SR5 | 4 Cyl 2.7 L GAS
View related parts
Toyota 4Runner Clutch Part Number: 88410-2F010
$187.44 MSRP: $267.62
You Save: $80.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly; A/C Compressor Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2020 Toyota 4Runner | Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, Venture | 6 Cyl 4.0 L GAS
View related parts
Toyota 4Runner Hub Sub-Assembly, Magnet Clutch Part Number: 88403-50020
$191.32 MSRP: $273.16
You Save: $81.84 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Manufacturer Note: DEALER OPTION
- Replaces: 88403-3A010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Clutch Part Number: 88410-35150
$149.81 MSRP: $212.07
You Save: $62.26 (30%)
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Manufacturer Note: MAKER OPTION
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1995 Toyota 4Runner | SR5 | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Compressor Clutch Part Number: 88410-14150
$147.80 MSRP: $209.23
You Save: $61.43 (30%)
Product Specifications
- Other Name: Clutch; A/C Compressor Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1991 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Hub Sub-Assembly, Magnet Clutch Part Number: 88403-06050
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Replaces: 88403-30290
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota 4Runner | Base, Limited, SR5 | 4 Cyl 2.7 L GAS, 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Clutch Assembly Part Number: 88410-35360
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Compressor Clutch Part Number: 88410-35080
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Manufacturer Note: MAKER OPTION
- Replaces: 88410-35010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS
View related parts
Toyota 4Runner Compressor Clutch Part Number: 88410-14100
Product Specifications
- Other Name: Clutch; A/C Compressor Clutch; Cooler & Accessory Assembly; Clutch Assembly, Magnet
- Manufacturer Note: CALIFORNIA SPEC
- Replaces: 88410-20130, 88410-14040, 88410-20050, 88410-20060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1989 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Clutch Coil Part Number: 88411-02030
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Coil; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-2A030, 88411-22310, 88411-0C010, 88411-04010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2002 Toyota 4Runner | Base, Limited, SR5 | 4 Cyl 2.7 L GAS, 6 Cyl 3.4 L GAS
View related parts
Toyota 4Runner Compressor Pulley Part Number: 88412-12150
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Clutch; Rotor; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota 4Runner | Base | 4 Cyl 2.7 L GAS

Toyota 4Runner A/C Compressor Clutch

Choose genuine A/C Compressor Clutch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM A/C Compressor Clutch for your Toyota 4Runner? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota 4Runner parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota 4Runner A/C Compressor Clutch is in charge of switching on the air-conditioning compressor in order to compress and circulate refrigerant to the cabin by means of cool air. The A/C Compressor Clutch that is present in all Toyota 4Runners transforms the engine power into the accurate action the compressor requires. The mechanism is an on-off coupling, an electromagnetic field clamping the drive plate to the pulley when the dash switch throws the air conditioning on and allowing the pulley to spin freely when the system is off to avoid unnecessary engine load. Constant use may cause the wearing of the bearing or contact surfaces, and a failed Toyota 4Runner A/C Compressor Clutch may frequently result in high cabin temperatures or a strange noise when the system is activated. In this car, the A/C Compressor Clutch is a connection between the crankshaft pulley and the compressor via a friction plate and bearing system, which provides rotational force when needed. The units could be new or refurbished, are sold separately or as part of assemblies, but the principle of operation is the same. The A/C Compressor Clutch requires proper maintenance as it is a component that will support the longevity of the system, and regular inspections will assist the Toyota 4Runner in keeping the cabin cool.

Toyota 4Runner A/C Compressor Clutch Parts and Q&A

Hub Sub-Assembly, Magnet Clutch
88403-50020
Q: How to service and repair the A/C Compressor Clutch on Toyota 4Runner?
A:
Repairs and services of the compressor clutch need to begin with disassembly. Remove the pressure plate with Special Service Tool: 07112-76060 and a socket wrench before removing the shaft bolt while maintaining 13.2 N.m (135 kgf.cm, 9 ft.lbf) torque. Use Special Service Tool: 07112-66040 to fix the pressure plate onto a work surface and remove the pressure plate with both Special Service Tool: 07112-66040 and 07112-76060 while using a socket wrench before extracting the shims from the plate. Use Special Service Tool: 95994-10020 to remove the snap ring while keeping it beveled upwards before tapping off the rotor gently using a plastic hammer on the shaft while watching for pulley damage. Special Service Tool: 95994-10020 removes snap rings where the beveled side should face upward so the user can extract the stator. The reverse order of what was used in disassembly becomes the reassembly protocol. The magnetic clutch clearance needs verification through this procedure: mounting the dial indicator on the pressure plate yet connecting the magnetic clutch wire to the positive battery terminal along with using the negative terminal to test the pressure plate and rotor gap. The approved measurement for clearance stands at 0.5 plus or minus 0.15 mm (0.020 plus or minus 0.0059 in.). To correct the clearance within its specifications you must use shims which provide three standardized thickness levels at 0.1 mm (0.004 in.), 0.3 mm (0.012 in.) as well as 0.5 mm (0.020 in.).
Clutch & Pulley
88410-0C040
Q: How to remove and replace the A/C Compressor Clutch on Toyota 4Runner?
A:
The first step to replace or remove the compressor and magnetic clutch of the 1GR-FE engine requires refrigerant discharge from the refrigeration system. The first step includes detaching both engine under cover sub-assembly No.1 and the fan and generator V belt from the system. A technician can disconnect the discharge hose sub-assembly through the removal of its nut followed by the O-ring followed by the application of vinyl tape to seal openings to stop the entry of moisture and foreign matter. Perform the same procedure on the suction hose sub-assembly by unbolted the nut and O-ring before properly sealing the openings with vinyl tape. You should disconnect the connector followed by removing the four bolts which secure the compressor alongside the magnetic clutch. To install the compressor with magnetic clutch use four bolts that should be torqued to 24 N.m (245 kgf.cm, 18 ft.lbf) after securing both components together. Installation of the suction hose sub-assembly requires vinyl tape removal and O-ring fitting with compressor oil (ND-OIL 8 or equivalent) to new O-ring and surface before installing the O-ring and securing the hose with the nut to 9.8 N.m torque (100 kgf.cm, 87 in.lbf). Rephrase this procedure for the discharge hose sub-assembly by applying compressor oil on both the new O-ring and fitting surface then tighten the nut to 9.8 N.m (100 kgf.cm and 87 in.lbf). The last steps involve installing the fan and generator V belt followed by engine under cover sub-assembly No.1 components together with refrigerant charging and engine heating before inspecting for any leaked refrigerant.
