OEM 2009 Toyota Corolla ABS Control Module

Anti Lock Brake Control Module
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 ABS Control Modules found

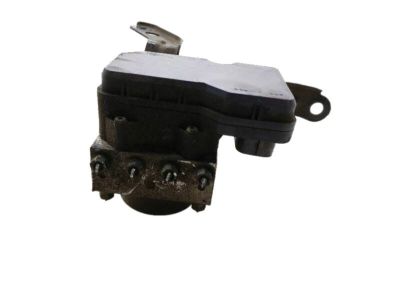

  • 2009 Toyota Corolla ABS Control Module - 44050-12620
    2009 Toyota Corolla ABS Control Module Diagram - 44050-12620
    View related parts

    2009 Toyota Corolla Actuator

    Part Number: 44050-12620
    $752.95 MSRP: $947.82
    You Save: $194.87 (21%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Control Module
    • Part Name Code: 44510
    • Item Weight: 4.90 Pounds
    • Item Dimensions: 9.1 x 7.9 x 6.2 inches
    • Condition: New
    • Fitment Type: Direct Replacement
    • SKU: 44050-12620
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    More Info
    Fits the following 2009 Toyota Corolla Submodels:
    • Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
  • 2009 Toyota Corolla ABS Control Module - 44050-02260
    2009 Toyota Corolla ABS Control Module Diagram - 44050-02260
    View related parts

    2009 Toyota Corolla Modulator Valve

    Part Number: 44050-02260
    $728.66 MSRP: $917.24
    You Save: $188.58 (21%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Control Module; Actuator
    • Part Name Code: 44510
    • Item Weight: 5.20 Pounds
    • Item Dimensions: 9.2 x 7.8 x 6.0 inches
    • Condition: New
    • Fitment Type: Direct Replacement
    • SKU: 44050-02260
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    More Info
    Fits the following 2009 Toyota Corolla Submodels:
    • Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
  • 2009 Toyota Corolla ABS Control Module - 44050-02270
    2009 Toyota Corolla ABS Control Module - 44050-02270
    2009 Toyota Corolla ABS Control Module - 44050-02270
    2009 Toyota Corolla ABS Control Module - 44050-02270
    2009 Toyota Corolla ABS Control Module - 44050-02270
    2009 Toyota Corolla ABS Control Module Diagram - 44050-02270
    View related parts

    2009 Toyota Corolla Modulator Valve

    Part Number: 44050-02270
    Product Specifications
    • Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Control Module; Actuator
    • Manufacturer Note: VSC-WITH (W/CUT OFF SW)
    • Part Name Code: 44510
    • Item Weight: 5.10 Pounds
    • Item Dimensions: 9.3 x 7.9 x 6.2 inches
    • Condition: New
    • Fitment Type: Direct Replacement
    • SKU: 44050-02270
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    More Info
    Fits the following 2009 Toyota Corolla Submodels:
    • Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
  • 2009 Toyota Corolla ABS Control Module - 44050-12540
    2009 Toyota Corolla ABS Control Module Diagram - 44050-12540
    View related parts

    2009 Toyota Corolla Actuator

    Part Number: 44050-12540
    Product Specifications
    • Other Name: Actuator Assembly, Brake; ABS Hydraulic Assembly; ABS Control Module
    • Manufacturer Note: VSC-WITH(W/CUT OFF SWITCH)
    • Part Name Code: 44510
    • Item Weight: 5.10 Pounds
    • Item Dimensions: 9.3 x 8.0 x 6.2 inches
    • Condition: New
    • Fitment Type: Direct Replacement
    • SKU: 44050-12540
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    More Info
    Fits the following 2009 Toyota Corolla Submodels:
    • Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS

2009 Toyota Corolla ABS Control Module

Looking for affordable OEM 2009 Toyota Corolla ABS Control Module? Explore our comprehensive catalogue of genuine 2009 Toyota Corolla ABS Control Module. All our parts are covered by the manufacturer's warranty. Plus, our straightforward return policy and speedy delivery service ensure an unparalleled shopping experience. We look forward to your visit!

2009 Toyota Corolla ABS Control Module Parts Q&A

  • Q: How to install the ABS Control Module and its associated components on 2009 Toyota Corolla?
    A: Installation of the brake actuator begins with attaching it to the brake actuator bracket assembly through 3 bolts that should be tightened up to 5.4 Nm (55 kgf-cm, 48 in-lbf) while observing the hole plug maintenance policy and steering clear of connector handling and maintaining a specific bolt tightening sequence. The brake actuator goes next with the bracket to the body using 2 bolts and a nut which should be torqued to 19 Nm (194 kgf-cm, 14 ft-lbf) under cautious conditions where the brake lines and wire harness are unperturbed while all steps are followed in the specified order. Tighten each brake line temporarily to the correct positions on the brake actuator bracket using a torque of 14 Nm (143 kgf-cm, 10 ft-lbf) or 15 Nm (155 kgf-cm, 11 ft-lbf) while using a 10 mm union nut wrench. Ensure the torque wrench uses a 250 mm (9.84 in.) fulcrum at a 90-degree angle from the union nut wrench. Screw the brake line clamp with bolt while tightening to 5.4 Nm (55 kgf-cm, 48 in-lbf). Finally secure the actuator connector. The windshield washer jar assembly and clamp need to be installed to the body using 2 bolts tightened at 5.5 Nm (56 kgf-cm, 49 in-lbf). After this, connect the washer hoses and motor connectors at the same torque value. Secure the radiator reserve tank sub-assembly with 3 bolts that should achieve torque values of 7.0 Nm (71 kgf-cm, 62 in-lbf). The procedures now include installing front bumper components and radiator grille protector and No. 4 engine under cover items and front wheel RH units plus generators for 2ZR-FE and 2AZ-FE engines, and the V-ribbed belt setup process alongside its tightening procedures. To complete the work you must first attach the cable to the negative battery terminal then take off the center cowl top ventilator louver and fill the brake fluid reservoir followed by bleaching the brake master cylinder and brake line and brake actuator after which you should check the brake fluid level and search for any leaks before reinstalling the center cowl top ventilator louver followed by inspecting the actuator with Techstream.
