2004 Scion xB Airbag, Clock Spring, Air Bag Sensor

Air Bag Sensor, Airbag, Clock Spring Installation and Repair Tips for 2004 Scion xB

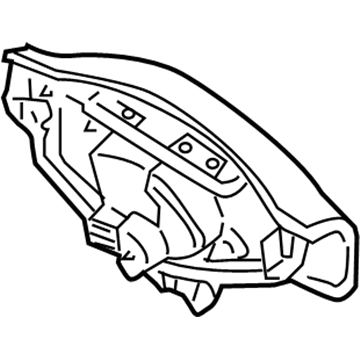

• Q: What steps should be taken to inspect and diagnose the Airbag system after a collision on 2004 Scion xB?

  A: After a collision, check the Air Bag system. For undamaged vehicles, inspect the horn button for cracks or discoloration. In collisions without deployment, examine the horn button assembly for damage. Inspect the passenger Air Bag assembly and front sensor for cracks. Replace damaged parts and check seat belt assemblies as needed.

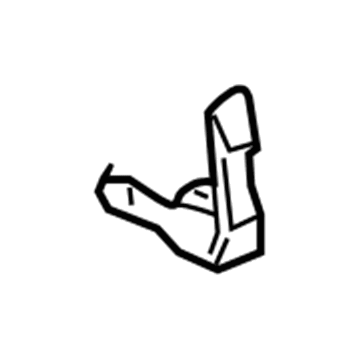

• Q: How to replace the Seat Position Air Bag Sensor on 2004 Scion xB?

  A: To change Seat Position Air Bag Sensor, follow the service precautions and disconnect the battery. Take off the required seat covers and assembly and unplug the sensor. Install the new sensor with the ignition switched off and apply appropriate torque. Inspect defects and make sure that there is no pinching of SRS wiring. Lastly, install the front seat and test SRS warning light.

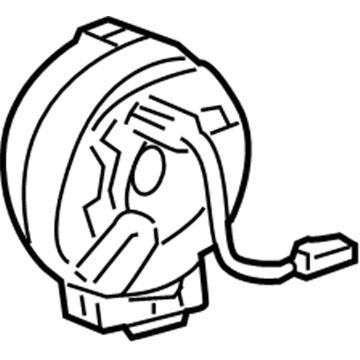

• Q: How to replace the Clock Spring Assembly / Spiral Cable on 2004 Scion xB?

  A: To install a new Clock Spring Assembly, pay attention to service precautions and disassemble the battery. Take out the Horn Button and Steering Wheel Assembly, and the steering column cover. Take out the Clock Spring Sub-Assembly, check it against the possibility of damage and fit a new one. Re-install components, check the SRS warning light and adjust the clock spring.
