Toyota 84872-02060

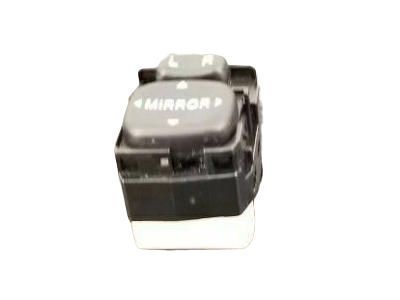

Switch Assembly, Outer Mirror, Driver Side

The first step in removing the outer mirror switch involves disconnecting the negative battery cable then waiting 90 seconds to avoid activating Air Bags. First separate the right-hand front door opening trim Weather Strip then follow it with the left-hand one. First detach both front pillar garnish components from their positions on the right and left sides of the vehicle before extracting the instrument cluster finish center panel sub-assembly and the instrument cluster finish panel assembly. Remove the combination meter assembly together with the upper instrument panel sub-assembly following all other necessary components' removal. The procedure requires first removing the No. 1 switch hole base then disengaging two claws to remove the outer mirror switch assembly.

The process for removing the power mirror switch starts with connecting the cable to the negative battery terminal then waiting 90 seconds to avoid Air Bag activation. Proceed by removing the front door opening trim Weather Strip from the right-hand side and then from the left-hand side. Both front pillar garnishes need to be removed from their positions on the right side and left side. First remove the instrument cluster finish center panel sub-assembly and then proceed to remove the instrument cluster finish panel assembly. Move on to remove the combination meter assembly together with the upper instrument panel sub-assembly. The No. 1 switch hole base should be taken away last Finish the procedure by disconnecting the 2 claws of the outer mirror switch assembly.

Install the combination meter assembly.

Remove the front pillar garnish on the right and left sides.

Install the instrument cluster finish panel assembly.
