Make sure this part fits

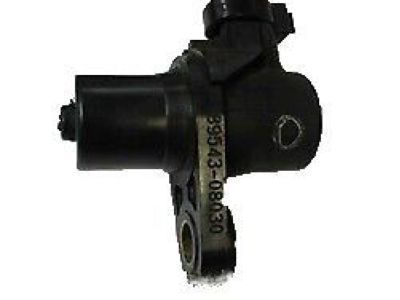

Toyota 89543-08030
Front Speed Sensor, Driver Side

2004-2010 Toyota Sienna 8954308030

Customer Questions & Expert Answers (8)
Toyota 89543-08030 Front Speed Sensor, Driver Side
Toyota 89543-08030 Front Speed Sensor, Driver Side
Toyota 89543-08030 Front Speed Sensor, Driver Side
Toyota 89543-08030 Front Speed Sensor, Driver Side
  • Part Description
    Sensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; ABS Sensor
  • Part Name Code
    89543
  • Position
    Front Driver Side
  • Manufacturer
    Toyota
Make sure this part fits
$271.67 MSRP: $387.88
You Save: $116.21 (30%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

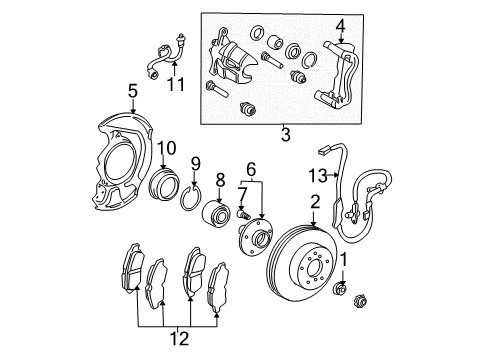

  • 89543-08030 Front Speed Sensor, Driver Side is Ref No. 13 in the diagram below

    2005 Toyota Sienna Front Speed Sensor, Driver Side Diagram for 89543-08030
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 89543-08030

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code89543
    Manufacturer Part Number89543-08030
    Part DescriptionSensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; ABS Sensor
    Other NamesABS Sensor Wire; Sensor, Speed, Front Driver Side; ABS Wheel Speed Sensor
    Item Dimensions10.2 x 6.5 x 2.1 inches
    Item Weight0.90 Pounds
    PositionFront Driver Side
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU89543-08030
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2010 Toyota SiennaCE, LE, Limited, XLE, XLE Limited6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS

  • Customer Questions & Expert Answers

    Q:
    Can you provide the right 89543-08030 for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 89543-08030 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to service and repair the Transmission Speed Sensor on Toyota Sienna? Posted by Customer
    A:
    The repair process of the Transmission Speed Sensor starts with battery removal along with the air cleaner assembly. The NT speed sensor installation includes disconnecting its connector followed by removing both the bolt and the speed sensor. Remove the bolt and speed sensor from the NC sensor while also disconnecting its speed sensor connector. Measure the resistance of the NT sensor after you disconnect its connector from the transaxle while following the values for both Aisin and Toyota Made sensors. Repetition of this procedure should take place with the NC sensor. Coat the O-ring of the NC sensor with ATF and then install the speed sensor with its bolt securing an 11 Nm (115 kg-cm, 8 ft. lbs.) torque while using only sensors from the same manufacturer. Connect the speed sensor connector before you perform the installation procedure of the NT sensor. As a final step reinstall the air cleaner assembly followed by the battery.
    Posted by ToyotaPartsNow Specialist
    Q:
    What are the final steps to complete the repair for the 2006 Toyota Sienna? Posted by Customer
    A:
    Reinstall the front fender liner on the left-hand side, reattach the front wheel with a torque of 103 N.m (1,050 kgf.cm, 76 ft.lbf), and check the ABS speed sensor signal.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What is the next step after securing the sensor harness clamps for the 2004 Toyota Sienna? Posted by Customer
    A:
    Connect the clamp to the knuckle, install the sensor harness and clamp to the body, and reconnect the speed sensor connector.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What are the torque specifications for bolts A and B for the 2008 Toyota Sienna? Posted by Customer
    A:
    Bolt A should be torqued to 8.0 Nm (82 kgf-cm, 71 in-lbf) and bolt B to 19 Nm (192 kgf-cm, 14 ft-lbf).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What is the next step after removing the sensor harness and clamp for the 2007 Toyota Sienna? Posted by Customer
    A:
    Take out the two clamp bolts securing the sensor harness and clamp to the body and shock absorber.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    How do you begin the installation of the front speed sensor on the LH side for the 2009 Toyota Sienna? Posted by Customer
    A:
    Start by securing the speed sensor with a bolt, ensuring a torque of 8.0 Nm (82 kgf-cm, 71 in-lbf).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What should be ensured during the installation of the sensor harness clamps for the 2005 Toyota Sienna? Posted by Customer
    A:
    Take care not to twist the sensor wire during installation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 89543-08030, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 89543-08030 Front Speed Sensor, Driver Side. It is sometimes referred to as Toyota Speed Sensor. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 8954308030 Front Speed Sensor, Driver Side. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
