Toyota 90915-YZZF1

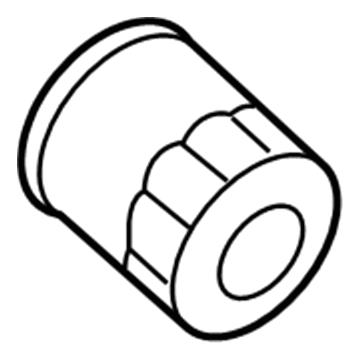

Oil Filter

The first step for oil and oil filter replacement of a 2AZ-FE engine starts with removing the right-hand side under engine cover. To drain engine oil workers must first remove the oil filler cap and oil drain plug while collecting the oil into a container before cleaning the drain plug for new gasket installation at 40 Nm torque setting (408 kgf-cm, 30 ft-lbf). The next step requires you to disassemble the oil filter sub-assembly with Special Service Tool: 09228-06501. Place a new oil filter on the installation surface by applying clean engine oil on its gasket then hand-tighten it until the gasket touches the filter seat before finishing installation. Utilize Special Service Tool: 09228-06501 to tighten the oil filter but users can install it until it reaches 17.2 Nm (175 kgf-cm, 13 ft-lbf) when possible or follow the alternative method of 3/4 turn by hand or regular wrench. Place a new clean engine oil in the required capacity before reinstalling the oil filler cap properly. Before reinstallation the engine under the right side engine cover it is essential to both warm up the engine and check for any signs of oil leakage.

Carefully beginning the oil filter installation requires protection against extended engine oil exposure since both skin irritation and dangerous pollutants exist in the substance. Use protective gloves and clothing during the operation as well as immediate washing of your skin after contact. The proper disposal sites exist for used oil and filters. You should start by removing the engine under cover RH and drain engine oil by removing the oil filler cap and the oil drain plug into a container. You should now uninstall the oil filter sub-assembly with Special Service Tool: 09228-06501 available. First clean the oil filter surface then apply engine oil to the new filter gasket before hand-tightening it until the gasket meets the seat. Install the oil filter using the Special Service Tool designated as 09228-06501. Use either a torque wrench to reach 17.2 Nm (175 kgf-cm, 13 ft. lbs.); alternatively users can tighten the oil filter by hand or using a common wrench for three-fourths turn. You must first clean then install the new gasket on the oil drain plug before tightening it to 40 Nm (408 kgf-cm, 30 ft. lbs.). Next, pour new oil by the standard capacity before installing the oil filler cap. To finish the maintenance check the engine for any leaking oil before installing the right-hand under cover back on.

Maintenance of the oil filter involves beginning by removing Engine Under Cover No. 1 before installing Special Service Tool: 09228-07501 to uninstall the oil filter sub-assembly. Install the new oil filter sub-assembly by inspecting the installation surface, cleaning it with oil, applying engine oil to the filter gasket before gently mounting it before securely tightening it to contact the seat. Utility tool 09228-07501 should be used to complete additional tightening by 3/4 turn. As the last step add engine oil before conducting a leak inspection of the system.

Lightly screw it into place by hand until the gasket contacts the seat.

Use Special Service Tool: 09228-06501.

Add clean engine oil and reinstall the oil filler cap, ensuring the standard capacity is met.

Dispose of used oil and oil filters only at designated disposal sites.

Fill with fresh engine oil to the specified capacity, check for leaks, and finally reinstall the engine under cover RH.

Use Special Service Tool: 09228-06501; if space allows, use a torque wrench to tighten it to 17.2 Nm (175 kgf-cm, 13 ft-lbf), or if space is limited, tighten it 3/4 turn by hand or with a common wrench.

Remove the engine under cover RH, taking care to minimize skin contact with mineral oil.

Install the oil filler cap and inspect for oil leaks.

Add new oil to the standard capacity and install the oil filler cap, then inspect for any oil leaks.

Dispose of used oil and filters at designated sites.

Check and clean the oil filter installation surface, apply clean engine oil to the gasket of a new oil filter, lightly screw it into place, and tighten until the gasket contacts the seat. Then, using Special Service Tool: 09228-06501, tighten it an additional 3/4 turn.

Clean and reinstall the oil drain plug with a new gasket, torquing it to 37 Nm (377 kgf-cm, 27 ft-lbf).

Exercise caution as prolonged contact with mineral oil can lead to skin dryness, irritation, and dermatitis. Used engine oil may contain harmful contaminants. Wear protective clothing and gloves, and wash your skin thoroughly with soap and water or use a water-less hand cleaner to remove any used engine oil; avoid gasoline, thinners, or solvents.

Clean and reinstall the oil drain plug with a new gasket, torquing it to 37 Nm (377 kgf-cm, 27 ft. lbs.).

Check and clean the installation surface, apply clean engine oil to the gasket of the new filter, and lightly screw it into place by hand until the gasket contacts the seat.

Begin by draining the engine oil: remove the oil filler cap, then the oil drain plug, allowing the oil to drain into a container.

Use Special Service Tool: 09228-06501.

Remove the engine under cover on the right-hand side and drain the engine oil by removing the oil filler cap and the oil drain plug, allowing the oil to drain into a container.

Wear protective clothing and gloves to minimize skin contact with mineral oil.

Wear protective clothing and gloves to avoid prolonged contact with engine oil, which can cause skin irritation and contains harmful contaminants. Wash your skin thoroughly after handling.

Remove the oil filter sub-assembly using Special Service Tool: 09228-06501.

Exercise caution as prolonged contact with mineral oil can lead to skin dryness, irritation, and dermatitis. Used engine oil may contain harmful contaminants. Wear protective clothing and gloves, and wash your skin thoroughly with soap and water or use a water-less hand cleaner to remove any used engine oil; avoid gasoline, thinners, or solvents.

Wear protective clothing and gloves to avoid prolonged contact with mineral oil.

Check and clean the oil filter installation surface, apply clean engine oil to the gasket of a new oil filter, lightly screw it into place, and tighten until the gasket contacts the seat. Then, using Special Service Tool: 09228-06501, tighten it an additional 3/4 turn.

Dispose of used oil and filters at designated disposal sites.

Clean and install the oil drain plug with a new gasket, torque it to 24.5 Nm (250 kgf-cm, 18 ft. lbs.), then fill with fresh engine oil and install the oil filter cap.

Install the oil filler cap and inspect for oil leaks.

Finally, inspect for any oil leaks.

Add new engine oil, reinstall the oil filler cap, and inspect for any oil leaks.

Dispose of used oil and filters at designated disposal sites.

Use Special Service Tool: 09228-06501 to remove the old filter, check and clean the oil filter installation surface, ensure the part number of the new oil filter matches the old one, apply clean engine oil to the gasket of the new filter, lightly screw it into place, and tighten until the gasket contacts the seat. Then, using Special Service Tool: 09228-06501, tighten it an additional 3/4 turn.

Reinstall the oil filler cap, inspect for any oil leaks, and reinstall the No. 1 engine under cover.

Clean and install the oil drain plug with a new gasket, tightening it to 40 Nm (408 kgf-cm, 30 ft. lbs.), add new oil according to the standard capacity, and reinstall the oil filler cap.

Install the oil pan drain plug with a new gasket, torquing it to 37 Nm (377 kgf-cm, 27 ft. lbs.).

If space allows, use a torque wrench to tighten the oil filter to 17.2 Nm (175 kgf-cm, 13 ft-lbf); if not, tighten it by hand or with a common wrench for an additional 3/4 turn.

Lightly screw the oil filter into place and tighten it until the gasket contacts the seat, then use Special Service Tool: 09228-06501 to tighten the filter an additional 3/4 turn.

Lightly screw the oil filter into place and tighten it until the gasket contacts the seat, followed by an additional 3/4 turn using Special Service Tool: 09228-06501.

Place Special Service Tool: 09228-06501 on the oil filter and use it to remove the filter.

Wear protective clothing and gloves to prevent skin irritation and dermatitis from prolonged contact with mineral oil.

Remove the oil filler cap and the oil drain plug, allowing the oil to flow into a container.
