Toyota 13507-28010
Timing Chain

2001-2023 Toyota 1350728010

Customer Questions & Expert Answers (40)

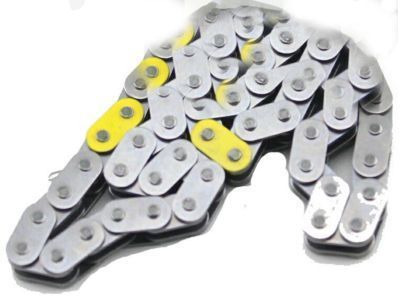

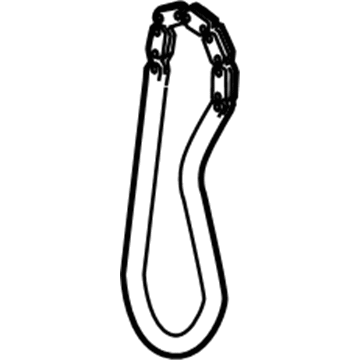

Toyota 13507-28010 Timing Chain
Toyota 13507-28010 Timing Chain
Toyota 13507-28010 Timing Chain
Toyota 13507-28010 Timing Chain
  • Part Description
    Chain Sub-Assembly, Oil; Engine Timing Chain
  • Part Name Code
    13507
  • Replaces
    13507-0H020
  • Manufacturer
    Toyota
Make sure this part fits
$89.46 MSRP: $125.57
You Save: $36.11 (29%)
Ships in 1-2 Business Days
1
ADD TO CART

  • 13507-28010 Timing Chain is Ref No. 17 in the diagram below

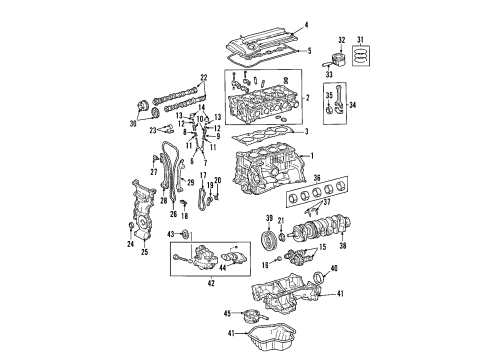

    2004 Toyota RAV4 Timing Chain Diagram for 13507-28010
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 13507-28010

  • Vehicle Fitment

    Year Make Model Trim Engine
    2016 Scion iMBase4 Cyl 1.8 L GAS
    2005-2010 Scion tCBase, Spec4 Cyl 2.4 L GAS
    2008-2015 Scion xBBase4 Cyl 2.4 L GAS
    2008-2014 Scion xDBase4 Cyl 1.8 L GAS
    2018-2022 Toyota C-HRLE, Limited, Nightshade, XLE, XLE Premium4 Cyl 2.0 L GAS
    2002-2011 Toyota CamryBase, CE, Hybrid, LE, SE, XLE4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS
    2009-2023 Toyota Corolla50th Anniversary Special Edition, Base, Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
    2017-2018 Toyota Corolla iMBase4 Cyl 1.8 L GAS
    2001-2007 Toyota HighlanderBase4 Cyl 2.4 L GAS
    2009-2013 Toyota MatrixS, XRS4 Cyl 2.4 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is 13507-28010 a good match for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 13507-28010 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is the installation process for the No.2 chain sub-assembly for the 2005 Scion tC? Posted by Customer
    A:
    Set the crankshaft key, align yellow mark links with timing marks, and tighten the oil pump drive shaft gear.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you detach the engine mounting insulator on the right for the 2008 Scion tC? Posted by Customer
    A:
    Remove the bolt and radiator reservoir, separate the vane pump oil reservoir from the No. 1 oil reservoir bracket without disconnecting the 2 oil reservoir hoses, and remove the necessary bolts and nuts.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How is the chain tensioner assembly No.1 removed for the 2006 Toyota Camry? Posted by Customer
    A:
    Remove the chain tensioner assembly No.1 by taking out 2 nuts, tensioner, and gasket, ensuring not to revolve the crankshaft without the tensioner.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be ensured while installing the oil seal for the 2009 Scion tC? Posted by Customer
    A:
    Ensure the lip remains free from foreign matter and avoid tapping the oil seal at an angle.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove the crankshaft pulley for the 2010 Scion tC? Posted by Customer
    A:
    Use Special Service Tool: 09213-54015 91651-60855 to fix the pulley and loosen the bolt, then use Special Service Tool: 09950-50013 09951-05010 to remove it.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the first step to replace the timing chain for the 2005 Toyota Camry? Posted by Customer
    A:
    Remove the hood sub-assembly, front wheel RH, engine under covers LH and RH, and front fender apron seal RH.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you lift the engine for further disassembly for the 2006 Scion tC? Posted by Customer
    A:
    Lift the engine using a transmission jack to remove the V-ribbed belt tensioner assembly, crankshaft position sensor, and oil pan sub-assembly, using Special Service Tool: 09032-00100 to cut the applied sealer.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you install the new oil seal for the 2010 Scion tC? Posted by Customer
    A:
    Install the new oil seal by placing the oil seal retainer on wooden blocks and using Special Service Tool: 09223-22010 along with a hammer to tap in the oil seal until its surface is flush with the timing gear case edge.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is important to remember when removing the chain tensioner assembly for the 2002 Toyota Camry? Posted by Customer
    A:
    Ensure not to revolve the crankshaft without the chain tensioner.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    Which assemblies need to be removed after the engine mounting components for the 2008 Toyota Camry? Posted by Customer
    A:
    Remove the V-ribbed belt, generator assembly, vane pump assembly, and ignition coil assembly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you install the No. 1 chain vibration damper for the 2008 Toyota Camry? Posted by Customer
    A:
    Install it with 2 bolts, torqued to 9.0 Nm (92 kgf-cm, 80 in-lbf).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you install the sprocket and chain for the 2003 Toyota Camry? Posted by Customer
    A:
    Align timing marks and install the sprocket using Special Service Tool, followed by the chain.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you set the No. 1 cylinder to TDC/compression for the 2009 Scion tC? Posted by Customer
    A:
    Align the crankshaft pulley groove with the timing mark "0" and ensure the camshaft timing gears are aligned.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you set the No. 1 cylinder to TDC/compression for the 2007 Scion tC? Posted by Customer
    A:
    Align the crankshaft pulley groove with the timing mark "0" and check the camshaft timing gears.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be done regarding the No. 1 chain tensioner assembly for the 2009 Toyota Camry? Posted by Customer
    A:
    Remove it, ensuring not to turn the crankshaft without it.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the first step to replace the timing chain for the 2002 Toyota Highlander? Posted by Customer
    A:
    Begin by removing the hood sub-assembly, front wheel RH, engine under cover No. 1, front fender splash shield front RH, and front fender apron seal RH.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove the cylinder head cover sub-assembly for the 2010 Toyota Camry? Posted by Customer
    A:
    Disconnect the ventilation hoses and remove the cylinder head cover sub-assembly by taking out the 2 bolts and 2 engine wires, followed by the 8 bolts and 2 nuts.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be removed after setting the cylinder for the 2007 Toyota Camry? Posted by Customer
    A:
    Remove the crankshaft pulley, crank position sensor, and oil pan sub-assembly using Special Service Tool: 09032-00100.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the next step regarding the chain tensioner assembly for the 2003 Toyota Highlander? Posted by Customer
    A:
    Remove chain tensioner assembly No.1, ensuring not to revolve the crankshaft without it, and then remove the V-ribbed belt tensioner assembly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove No.2 chain sub-assy for the 2001 Toyota Highlander? Posted by Customer
    A:
    Turn the crankshaft counterclockwise 90°, lock the oil pump drive shaft gear, and remove the nut, bolt, chain tensioner plate, and spring.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you install the new No.2 chain sub-assembly for the 2004 Toyota Highlander? Posted by Customer
    A:
    Set the crankshaft key to the left horizontal position, align the mark links with timing marks, and tighten the oil pump driven sprocket nut to 30 Nm (306 kgf-cm, 22 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove the engine mounting insulator RH for the 2007 Toyota Highlander? Posted by Customer
    A:
    Remove the 4 nuts from the engine mounting insulator RH, raise the engine, and remove the engine mounting insulator RH, followed by the engine mounting bracket RH.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the first step to install the No. 2 chain sub-assembly for the 2009 Toyota Camry? Posted by Customer
    A:
    Set the crankshaft key into the left horizontal position and turn the drive shaft so that the cutout faces upward, aligning the yellow mark links with the timing marks of each gear.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you proceed with the engine mounting for the 2006 Toyota Highlander? Posted by Customer
    A:
    Install engine hanger No. 1 and No. 2 with bolts, torquing to 38 Nm (387 kgf-cm, 30 ft. lbs.), then remove the engine mounting insulator by attaching the engine chain hoist to the engine hangers, disconnecting the engine mounting insulator FR, steering gear return hose clamp, and removing the 4 nuts from the engine mounting insulator RH before raising the engine to remove it.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What components are reinstalled after the chain tensioner assembly for the 2005 Toyota Highlander? Posted by Customer
    A:
    Install the cylinder head cover sub-assembly, ignition coil assembly (torque to 19 Nm (194 kgf-cm, 14 ft. lbs.)), vane pump assembly, generator assembly, engine wire, fan and generator V belt, engine mounting bracket No.2 RH (torque to 52 Nm (531 kgf-cm, 38 ft. lbs.)), and engine mounting stay No.2 RH (torque to 64 Nm (653 kgf-cm, 47 ft. lbs.)).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you set No. 1 cylinder to TDC/compression for the 2002 Toyota RAV4? Posted by Customer
    A:
    Turn the crankshaft pulley to align its groove with timing mark 0 and ensure the camshaft timing sprocket and VVT timing sprocket timing marks align with the No. 1 and No. 2 bearing caps. If not aligned, turn the crankshaft 1 revolution and align the marks.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be done before installing the timing chain cover for the 2007 Toyota Highlander? Posted by Customer
    A:
    Remove any oil from the contact surface, apply seal packing in a continuous bead (seal width: 2.0 mm and 3.0 to 4.0 mm) using Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you set No. 1 cylinder to TDC/compression for the 2004 Toyota RAV4? Posted by Customer
    A:
    Turn the crankshaft pulley to align its groove with timing mark 0 and ensure the camshaft timing sprocket and VVT timing sprocket timing marks align with the No. 1 and No. 2 bearing caps; if not, turn the crankshaft 1 revolution and align again.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be done after removing the timing chain cover for the 2001 Toyota RAV4? Posted by Customer
    A:
    Remove the crank angle sensor plate, chain tensioner slipper, chain vibration damper, timing chain guide, timing chain, crankshaft timing sprocket, and camshaft timing sprocket and VVT timing sprocket.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What components should be removed after the crankshaft pulley for the 2005 Toyota RAV4? Posted by Customer
    A:
    Remove the chain tensioner, drive belt tensioner, crankshaft position sensor, oil pan, and timing chain cover.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What should be done after removing the initial components for the 2005 Toyota Solara? Posted by Customer
    A:
    Drain the engine oil and install a new gasket and drain plug, torquing to 25 Nm (255 kgf-cm, 18 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove the crankshaft pulley for the 2006 Toyota RAV4? Posted by Customer
    A:
    Use Special Service Tool: 09213-54015 (91651-60855), 09330-00021, and if necessary, use Special Service Tool: 09950-40011 (09957-04010) 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the next step after removing the engine mounting insulator RH for the 2007 Toyota RAV4? Posted by Customer
    A:
    Repeat the process for the engine mounting insulator FR, then remove the idler pulley by loosening the 2 bolts.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the next step after detaching the crankshaft position sensor for the 2008 Toyota RAV4? Posted by Customer
    A:
    Remove the timing chain cover sub-assembly using an E10 "TORX" socket for the V-ribbed belt tensioner stud bolt, followed by the 12 bolts and 2 nuts, prying the cover off carefully.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you remove the timing chain and sprockets for the 2003 Toyota RAV4? Posted by Customer
    A:
    Remove the crank angle sensor plate, chain tensioner slipper, chain vibration damper, and timing chain guide, then take out the timing chain and crankshaft timing sprocket.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What is the final step in the installation process for the 2006 Toyota Solara? Posted by Customer
    A:
    Install the V-ribbed belt tensioner assembly, engine mounting bracket RH, engine mounting insulator, and oil pan sub-assembly with the specified torque values.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    What components should be removed after the timing chain cover for the 2004 Toyota Solara? Posted by Customer
    A:
    Remove the crankshaft position sensor plate No.1, chain tensioner slipper, chain vibration damper No.1, and chain sub-assembly, followed by the crankshaft timing gear or sprocket.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How should the engine mounting components be torqued for the 2007 Toyota Solara? Posted by Customer
    A:
    Engine mounting bracket RH with 3 bolts torqued to 54 Nm (551 kgf-cm, 40 ft. lbs.), and engine mounting insulator RH with 4 nuts torqued to 95 Nm (969 kgf-cm, 70 ft. lbs.) for Nut A and 87 Nm (888 kgf-cm, 64 ft. lbs.) for Nut B.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    Q:
    How do you install the engine hangers for the 2008 Toyota Solara? Posted by Customer
    A:
    Install engine hangers No. 1 and No. 2 with bolts, torqued to 38 Nm (387 kgf-cm, 28 ft-lbf), then attach the engine chain hoist to the engine hangers.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Timing Chain
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota Timing Chain 13507-28010 Designed for Proper Fit and Performance

OEM Toyota part with Part Number 13507-28010 Timing Chain known as Toyota Timing Chain component provides maximum durability and optimal performance. The certified Toyota dealership components feature a warranty protection for 12-month, 12,000-mile usage. The use of OEM part 13507-28010 Timing Chain enables maintenance standards that match the original factory installation quality. The specific item serves the following model series: 2002-2011 Toyota Camry and 2009-2023 Toyota Corolla and 2001-2008 Toyota RAV4 as well as 2001-2007 Toyota Highlander.
Genuine Toyota offers this high-quality Chain Sub-Assembly, Oil; Engine Timing Chain under manufacturer part number 13507-28010 for use. This product identification code consists of 13507 which proves its manufacturer as Toyota. This component features dimensions of 2.6 x 2.4 x 0.4 inches and weighs 0.70 Pounds. This component 1350728010 is specially constructed for vehicle fitting requirements within the Direct Replacement classification. This product is also known as Chain; Chain Sub-Assembly replace 13507-0H020. Each vehicle requires the component which has an identified SKU of 13507-28010. The factory-warranty from Toyota guarantees continuous reliable operation and high performance for this part 13507-28010. The Shipping Policy and Return Policy pages provide full details about shipping procedures and return instructions.
OEM parts have no match as far as quality is concerned. They are thoroughly quality controlled and are made to Toyota factory specifications. All these eliminate the faults and flaws. And that is why you can be worry-free because they guarantee an outstanding lifespan and perfect matching. We offer very many different OEM components at competitive prices at ToyotaPartsNow.com. We offer an entire product line of all authentic Toyota products, with a manufacturer warranty as an assurance. Customer satisfaction is also part of our priorities and we offer no-hassles returns and fast shipping of all our components.
