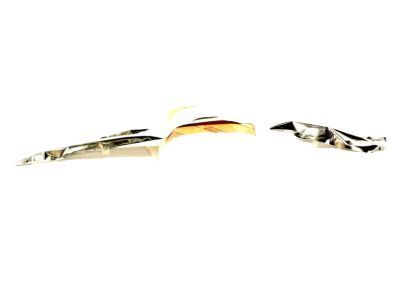

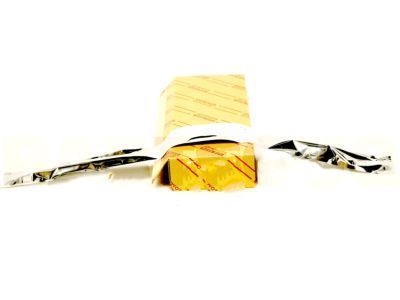

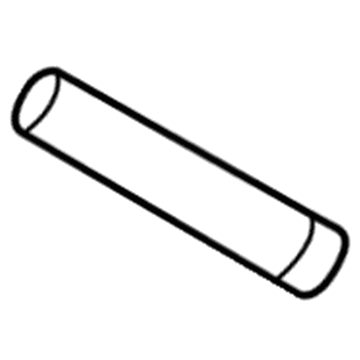

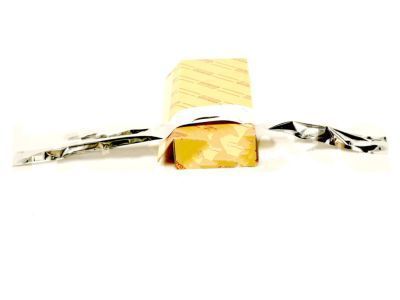

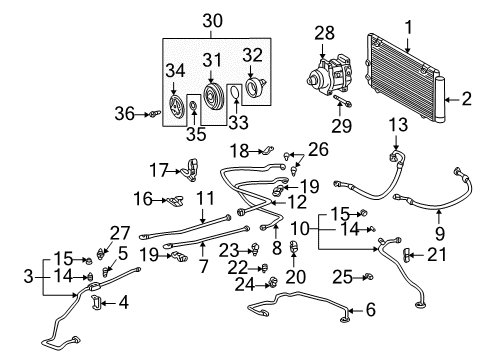

Toyota 88474-17010
Drier Dessicant Bag

Begin by connecting the cooler dryer through pliers to the modulator before adding sufficient amounts of ND-OIL 8 or equivalent compressor oil to O-ring and cap fitting surfaces. A straight hexagon wrench 14 mm should be used to install the cap to the cooler condenser core at 2.9 Nm (30 kgf-cm, 26 in-lbf) torque. The installation begins by attaching the cooler condenser assembly with 4 bolts achieving 5.0 Nm (51 kgf-cm, 44 in-lbf) torque while you should add 40 cc (1.4 fl. oz.) of ND-8 or equivalent compressor oil to the new condenser when required. To install the O-ring on the cooler refrigerant discharge pipe first remove the vinyl tape then apply compressor oil to its new O-ring and fitting surface before tightening it to 9.8 Nm (100 kgf-cm, 87 in-lbf). The air conditioning tube assembly requires compressor oil on a new O-ring followed by bolt torquing to 9.8 Nm (100 kgf-cm, 87 in-lbf). The hood lock support sub-assembly must be installed together with a bolt reaching 7.5 Nm (77 kgf-cm, 66 in-lbf). The next installation steps should involve the radiator support upper and both the front bumper assembly with or without fog light as well as the air cleaner inlet for all 2GR-FE and 2AZ-FE engines. The process concludes by adding refrigerant to the system followed by engine warming up and leak inspections and preparation of fog light aiming procedures.

Use a hexagon wrench (10 mm, 0.39 in.) to install the caps, torquing them to 12.3 N.m (125 kgf.cm, 9 ft.lbf).

Charge the system with refrigerant, warm up the engine, check for refrigerant leaks, and prepare for fog light aiming if equipped.

Use the 10 mm hexagon wrench to install the caps, tightening them to a torque of 2.9 N.m (30 kg.cm, 26 ft.lb).

Use pliers to remove the dryer.

Apply compressor oil (ND-OIL 8 or equivalent).

Take out the holder bolt and pull the receiver downward.

Install the cooler condenser assembly with 2 bolts, ensuring a torque of 9.8 Nm (100 kgf-cm, 87 in-lbf).

Remove vinyl tape, apply ND-OIL 8 or equivalent compressor oil to a new O-ring and fitting surface, install the O-ring, and connect with 2 bolts at a torque of 9.8 Nm (100 kgf-cm, 7 ft-lbf).
