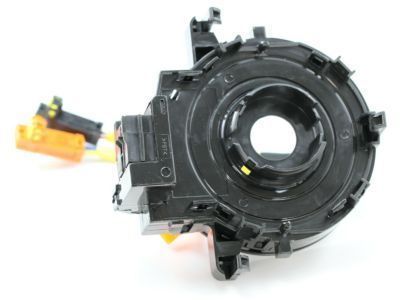

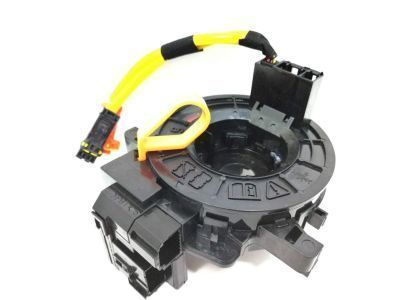

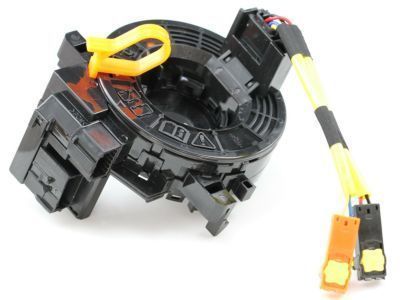

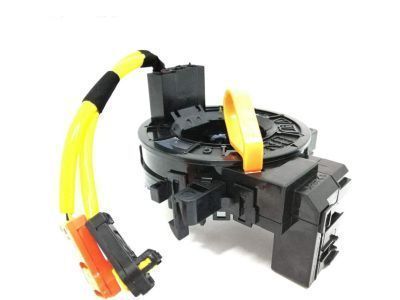

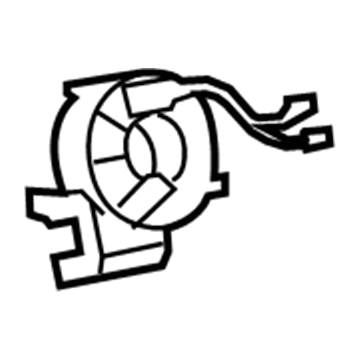

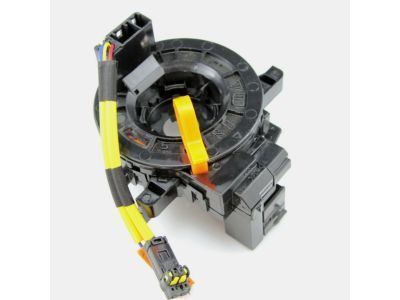

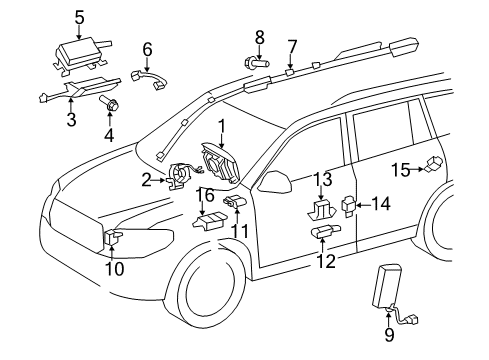

Toyota 84306-0E010
Angle Sensor

Before starting Clock Spring Assembly / Clock Spring removal begin with correct wheel alignment on the car and a battery cable disconnect for the negative terminal lasting 90 seconds to stop Air Bags from activating. Staring with the steering pad removal, technicians should proceed to remove both the steering wheel assembly and the steering column cover. The step for the clock spring involves separating the horn connector followed by sliding the connector disengager to release the Air Bag connector before removing the steering sensor connector. Three claws should be disengaged for complete removal of the clock spring. During the procedure the steering angle sensor should be taken out with all other parts.

The installation of the Clock Spring Assembly / Clock Spring begins with setting the ignition switch to OFF along with disconnecting the negative battery terminal but waits for at least 90 seconds before starting work. The installation process starts by checking that the front tires point forward while the turn signal switch exists in a natural state to prevent turning signal pin breakage. The installation requires the 3 claws to attach the clock spring but workers must extract the lock pin first when replacing with a new cable before fitting the steering wheel. The process requires connecting the Air Bag connector while also attaching the horn connector alongside the steering sensor assembly. After that install both the steering column upper and lower cover components. Access the center marks of the clock spring by turning it counterclockwise for locking then perform a clockwise motion 2.5 times from this locked state to correctly position the marks. You must install both the steering wheel assembly and steering pad with front wheels set to a straight forward position. Examine the SRS warning light following the process of cable connection to the negative battery terminal using a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf).

The Clock Spring Assembly / Clock Spring removal process must begin by facing the front wheels directly forward. The negative battery cable needs detachment before waiting a minimum of 90 seconds to avoid Air Bag activation. Proceed by removing the steering pad then take out both the steering column cover and steering wheel assembly. When removing the clock spring disconnect first the horn connector then advance the slider to separate the Air Bag connector before detaching the steering sensor connector. Disassembly of the clock spring requires you to separate the three retaining claws. As part of this procedure a steering angle sensor requires removal also.

Installation of the Clock Spring Assembly / Clock Spring begins by installing the steering angle sensor with VSC when both the front wheels remain straight and the turn signal switch occupies the neutral position to protect against pin snapping. To properly install the clock spring remove any lock pins being replaced after which connect the cable connectors while watching out for Air Bag wire harness damage. Continue by adding the steering column cover together with the lower steering column cover. When adjusting the clock spring disconnect the battery (-) terminal while the ignition remains switched off and wait at least 90 seconds before starting work. Begin by rotating the clock spring in the opposite direction until it becomes firm then continue rotation with clockwise movement of approximately 2.5 turns to achieve alignment using the manufacturer marks while maintaining a safe distance from the Air Bag wire harness. The next step requires installation of the steering wheel assembly and point-center assessment before attaching the steering pad together with lower steering wheel covers No.2 and No.3. The negative battery terminal cable must be restored before checking the steering pad and doing the initialization since some systems need such procedure after battery terminal removal. The final step is checking the SRS warning light for correct operation.

When installing the clock spring you should connect it to the steering angle sensor through engagement of 6 claws and 2 pins. When performing installation tasks of the clock spring keep the front wheels aligned while placing the turn signal switch in the neutral position to prevent damage. The installation of the steering angle sensor cable requires 3 clutch mechanisms using which you should remove the locking pin if you decide to replace the cable during the wheel assembly process. When attaching the connector to the steering angle sensor clock spring ensure complete attention to the Air Bag wire harness to prevent damage during Air Bag connector handling. A proper adjustment to the clock spring requires first turning off the ignition switch and disconnecting the battery negative (-) cable for at least 90 seconds to prevent Air Bag deployment. Manual rotation of the clock spring in counterclockwise direction will achieve an initial stop. Afterwards, perform clockwise rotation by 2.5 turns yet avoid usage of the Air Bag wire harness to align the marks. The clock spring needs to revolve about two and a half rounds in both clockwise and counterclockwise motions from its center point. The installation of the steering wheel assembly should be followed by checking the steering center point while adding the steering pad and lower No. 3 and lower No. 2 steering wheel covers. Connect the cable to the negative battery terminal before checking the steering pad and SRS warning light while noting initialization procedures which specific systems might require.

Service of the Clock Spring Assembly / Clock Spring begins with negating the car's battery cable followed by a minimum 90-second period to stop Air Bag and seat belt pretensioner deployment. Start by removing the steering pad assembly after setting the front wheels in a straight position before moving on to removing the steering wheel assembly. The technician should perform several steps before handling the Clock Spring sub-assembly which involves lifting up the upper steering column cover then unclipping four stops and pulling out the cable carefully without damaging the Air Bag wire harness. To install the Clock Spring begin by checking the front wheel alignment then set the turn signal switch to neutral and remove the lock pin if changing it with a new part. Connect the connectors to the Clock Spring while you attach 4 clips to the upper column cover. Then install the upper steering column cover followed by the lower steering column cover through 4 claw attachment. Adjust the Clock Spring through counterclockwise rotation until it reaches firm tension before proceeding with clockwise rotation of 2.5 turns for proper mark alignment; steer clear of turning with the Air Bag wire harness. As the last step install the steering wheel assembly then the steering pad assembly before reattaching the cable to the negative battery terminal for inspection of the steering pad assembly and SRS warning light check along with inspection of the steering wheel position.

Start repair of the Clock Spring Assembly / Clock Spring by disconnecting the battery negative terminal after you ensure the front wheels remain aligned with a straight position. Proceed to remove the steering wheel cover lower No.2 and No.3 gradually before separating the horn button assembly and steering wheel assembly using Special Service Tool: 09950-50013 consisting of parts (09951-05010, 09952-05010, 09953-05020, 09954-05021). The clock spring sub-assembly needs to be detached from its connectors by using caution to prevent Air Bag wire harness damage and breaking the 3 claws that secure it. Replacement of the clock spring sub-assembly is necessary when visual inspection reveals scratches or cracks or dents or chips. Installation of the new clock spring sub-assembly requires front wheel straightness and neutral turn signal switch position to prevent snapping the pin. Frequently check the Air Bag connector while you install connectors to the clock spring sub-assembly by removing the lock pin first. Testing must begin only after the power switch is off and the negative terminal is removed from the battery to wait for at least 90 seconds before any operation. Leverage the clock spring sub-assembly to turn counterclockwise until it stops then rotate it clockwise twice to reach alignment between the marks. The installation process starts with the steering wheel assembly followed by a check of the center steering wheel location until completion with the installation of the horn button assembly. After reconnecting the negative terminal follow the initialization instructions then inspect the horn button together with the SRS warning light.

Installation of the Clock Spring Assembly / Clock Spring starts by positioning the steering sensor with the pin holes from the clock spring then using 6 claws to secure the clock spring. Check that each front wheel faces forward before setting the turn signal switch to neutral position which protects the pin from damage. The installation of the clock spring should be done through connecting the connectors to the steering sensor while attaching the 3 claws while taking care to prevent damage to the Air Bag wire harness during Air Bag connector handling. Mount the steering column covers in the correct order starting from above and below. Adjust the clock spring after disconnecting the negative (-) terminal of the battery while the ignition switch remains OFF and waiting a minimum of 90 seconds to stop Air Bag activation. The clock spring with the steering sensor can be rotated counterclockwise until it achieves firmness and subsequently rotated clockwise toward 2.5 turns to match the markings while ensuring the Air Bag wire harness stays out of the way. After installation of the steering wheel assembly and steering pad and the lower steering wheel covers should be placed in position. The last step involves reconnecting the cable to the negative battery terminal but be aware that some systems might need an initialization following reconnection process before inspecting the steering pad and checking the SRS warning light for appropriate operation.

Center the spiral cable by turning it counterclockwise until it locks, then turn it 2.5 times clockwise from the locked position to align the center marks.

Engage the 3 claws to install the spiral cable with the steering angle sensor, and remember to remove the lock pin if replacing the spiral cable.

Connect the cable to the negative battery terminal with a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf) and inspect the SRS warning light.

Ensure the front wheels are facing straight ahead and disconnect the cable from the negative battery terminal, waiting 90 seconds after disconnection to prevent airbag deployment.

Engage the 6 claws and install the spiral cable to the steering angle sensor, ensuring the front wheels are straight and the turn signal switch is in the neutral position to avoid snapping the pin.

Reconnect the cable to the negative battery terminal with a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf) and inspect the SRS warning light.

Install the steering column upper cover and lower cover.

Disconnect the connectors from it, taking care not to damage the airbag wire harness when handling the airbag connector.

Avoid turning it by the airbag wire harness.

Disconnect the connectors from the spiral cable, taking care not to damage the airbag wire harness when handling the airbag connector.

Remove the No. 3 lower steering wheel cover.

Reconnect the connectors to the spiral cable sub-assembly, then install the steering column cover lower and upper.

Install the steering column upper cover and lower cover.

Engage the 6 claws and attach it to the steering angle sensor, ensuring the front wheels are straight and the turn signal switch is in the neutral position to avoid snapping the pin.

Install using the 3 claws and connect the necessary connectors while being cautious with the airbag wire harness.

Rotate the spiral cable counterclockwise slowly until firm, then clockwise approximately 2.5 turns to align the marks, ensuring not to turn it by the airbag wire harness.

Install the steering wheel assembly, steering pad, and lower No. 3 and No. 2 steering wheel covers.

Inspect the spiral cable sub-assembly for any scratches, cracks, dents, or chips, and replace it if any of these conditions are present.

Read the precautions thoroughly.

Remove the steering column cover.

Attach the 4 clips to the upper column cover and install the upper steering column cover.

Install the steering wheel assembly, steering pad, lower No. 3 steering wheel cover, and lower No. 2 steering wheel cover, then connect the cable to the negative battery terminal.

Take out the center instrument cluster finish panel sub-assembly, lower instrument panel finish panel assembly, shift lever knob sub-assembly (for both manual and automatic transaxles), and the center instrument cluster finish panel assembly (for both manual and automatic transaxles).

Install the steering wheel assembly, the steering pad assembly, reconnect the cable to the negative battery terminal, inspect the steering pad assembly, check the SRS warning light, and inspect the steering wheel position.

Disconnect the cable from the negative battery terminal and wait at least 90 seconds to prevent airbag and seat belt pretensioner activation.

Connect the cable to the negative battery terminal.

Reconnect the cable to the negative battery terminal and inspect the steering pad assembly.

Install the steering column cover.

Position the spiral cable by slowly rotating it counterclockwise until firm, then clockwise approximately 2.5 turns to align the marks, avoiding the use of the airbag wire harness for turning.

Disconnect the cable from the negative battery terminal and wait at least 90 seconds to prevent airbag deployment.

Disengage the 3 claws to remove the spiral cable sub-assembly.

Reconnect the airbag connector and install the steering column cover with three screws.

Install the steering wheel assembly, steering pad, and both lower steering wheel covers.

Ensure the ignition switch is OFF and the negative battery terminal is disconnected, then wait 90 seconds.

Attach the 3 claws and connect the connectors to the spiral cable with steering sensor, being cautious with the airbag wire harness.

Connect the cable to the negative battery terminal with a torque of 3.9 Nm (40 kgf-cm, 35 in-lbf).

Remove the No.2 and No.3 lower steering wheel covers, the steering pad, and the steering wheel assembly.

Ensure the ignition switch is OFF and the negative battery terminal is disconnected for 90 seconds, then turn the cable counterclockwise until resistance is felt, followed by turning it clockwise about 2.5 turns to align the marks.

Disconnect the connectors from the spiral cable with steering sensor, taking care not to damage the airbag wire harness.
