Make sure this part fits

Toyota 13502-20902
Camshaft Sub-Assembly, No

2000-2006 Toyota 1350220902

Customer Questions & Expert Answers (6)
Toyota 13502-20902 Camshaft Sub-Assembly, No
  • Part Description
    CAMSHAFT SUB-ASSY,NO; Camshaft
  • Manufacturer
    Toyota
Make sure this part fits
$517.89 MSRP: $758.97
You Save: $241.08 (32%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

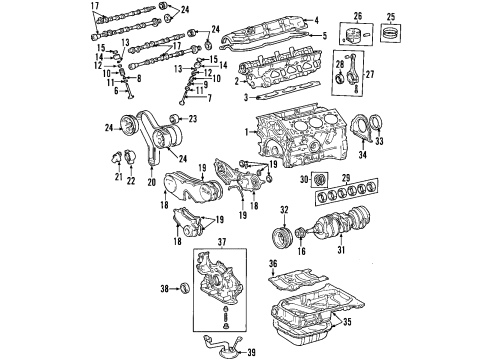

  • 13502-20902 Camshaft Sub-Assembly, No is Ref No. 17 in the diagram below

    2003 Toyota Highlander Camshaft Sub-Assembly, No Diagram for 13502-20902
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 13502-20902

  • Product Specifications

    BrandGenuine Toyota
    Manufacturer Part Number13502-20902
    Part DescriptionCAMSHAFT SUB-ASSY,NO; Camshaft
    Item Dimensions21.7 x 3.4 x 2.9 inches
    Item Weight6.30 Pounds
    ConditionNew
    ManufacturerToyota
    SKU13502-20902
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2000-2004 Toyota AvalonXL, XLS6 Cyl 3.0 L GAS
    2004-2006 Toyota CamryLE, XLE6 Cyl 3.0 L GAS
    2001-2003 Toyota HighlanderBase, Limited6 Cyl 3.0 L GAS
    2001-2003 Toyota SiennaCE, LE, XLE6 Cyl 3.0 L GAS

  • Customer Questions & Expert Answers

    Q:
    Is 13502-20902 a good match for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 13502-20902 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is the process for No. 2 camshaft installation for the 2005 Toyota Camry? Posted by Customer
    A:
    Align the painted mark of the link with the timing mark of the camshaft timing sprocket, temporarily tighten the sprocket bolt, install the bearing caps and bolts, and tighten the sprocket bolt to 54 Nm (551 kgf-cm, 40 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Camshaft
    Q:
    What should be done when installing the No. 2 camshaft for the 2004 Toyota Camry? Posted by Customer
    A:
    Apply new engine oil to the thrust portion and journal, place it at a 90-degree angle to the timing mark, install a new oil seal, and apply seal packing (Part No. 08826-00080) to the No. 1 bearing cap before installing the bearing caps and tightening the bolts (torque: 16 Nm).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Camshaft
    Q:
    What is the process to remove No.2 camshaft for the 2001 Toyota Highlander? Posted by Customer
    A:
    Fix it with a wrench, loosen the camshaft timing gear set bolt, and carefully remove the camshaft bearing cap bolts in the specified sequence.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Camshaft
    Q:
    How do you install the timing chain on the camshaft timing gear for the 2003 Toyota Highlander? Posted by Customer
    A:
    Align the painted links with the timing marks and tighten the bolts in the specified order with the respective torques for bearing caps No. 1 and No. 3.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Camshaft
    Q:
    What is the first step to replace the camshaft for the 2002 Toyota Highlander? Posted by Customer
    A:
    Remove the front wheel RH, front fender splash shield front RH, front fender apron seal RH, engine cover sub-assy No. 1, ignition coil assy, and separate ventilation hoses.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Camshaft
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 13502-20902, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 13502-20902 Camshaft Sub-Assembly, No. It is sometimes referred to as Toyota Camshaft. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 1350220902 Camshaft Sub-Assembly, No. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
Choose ToyotaPartsNow for discounted prices, exceptional service and fast delivery
