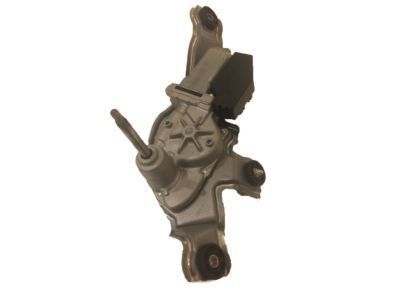

  85080-0T010
  Q: How to install the windshield wiper motor assembly and related components on Toyota Venza?

  A:

  Security of the windshield wiper motor assembly requires a T30 "TORX" socket wrench and 2 bolts torqued to 7.5 Nm (76 kgf-cm, 66 in-lbf) while application of MP grease to the crank arm pivot should occur. Successively connect the link rod of the windshield wiper to the crank arm pivot point. The windshield wiper motor and link assembly installation requires 3 bolts that need 7.0 Nm (71 kgf-cm, 62 in-lbf) torque and connector connection. Secure the cowl top ventilator louver sub-assembly by inserting the 13 claws first then fixing it with 2 clips. Insert the left-hand front fender to cowl side seal by attaching its claw and two guides while following the same directions for the right-hand installation. The installation process of the front wiper arm along with its blade assembly RH requires the wiper stop at the automatic position before cleaning arm serrations when using previous components. Also clean the windshield wiper link serrations with a wire brush if using reused parts. Fasten the front wiper arm with blade assembly RH to its position through the nut using 20 Nm (204 kgf-cm, 15 ft-lbf) torque. Perform the cleaning process again for the front wiper arm and blade assembly LH then install it with the nut and apply identical torque measurements. To check appropriate wiper operation without body contact during the installation process the mechanic should undertake front wiper operation while applying washer fluid on the windshield.
• Wiper Motor, Front

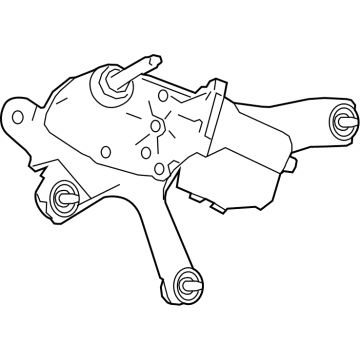

  85110-0T010
  Q: How to remove the front wiper motor on Toyota Venza?

  A:

  A screwdriver aids the removal process of the 2 front wiper arm head caps before proceeding with motor removal. Start by removing the arm and blade assembly along with its nut from the left-hand front side and repeat the process on the right-hand front side. Remove the front fender to cowl side seal on the left following the same procedure as the right side by disengaging the claw and two guides. Use a clip remover to disconnect the two clips before separating the thirteen claws which will allow you to extract the cowl top ventilator louver sub-assembly. Use a screwdriver to disconnect the connector then remove 3 bolts in order to extract the windshield wiper motor with its link. You need to first detach the windshield wiper link rod from the front wiper motor assembly crank arm pivot with a screwdriver before removing those 2 bolts that connect the windshield wiper motor assembly to the windshield wiper link assembly using a T30 "TORX" socket wrench.
