How to install the separate type front Seat Heater on Toyota Venza?

When installing the separate type front seat cushion heater use a tacker and 25 new tack pins to attach it to the end of the separate type front seat cushion cover without causing damage to the cushion. Follow by placing the separate type front seat cover temporarily during installation to insert 18 new hog rings while ensuring minimal wrinkle formation. The series of installation involves placing the front seat cushion cover with pad then adding the power seat switch and finally attaching the front seat cushion inner shield. As a next step install the front seat inner belt assembly after which install the front seat cushion shield assembly. The installation process requires addition of the slide and vertical power seat switch knob and the reclining power seat switch knob before installing the front seat assembly. Finishing the installation by putting together the front seat rear inner track cover, front seat rear outer track cover and front seat headrest assembly. Complete inspections of front seat assembly as well as SRS warning light. Special Service Tool: 09800-10000.

How to Remove the Seat Heater from the Front Seat Cushion on Toyota Venza?

The removal process of the front seat cushion heater begins with disassembly of the front seat headrest assembly before handling the front seat rear outer track cover followed by the front seat rear inner track cover. The rear step begins with separating the front seat assembly whereas the reclining power seat switch knob followed by the slide and vertical power seat switch knob require detachment. You must remove the front seat cushion shield assembly along with the front seat inner belt assembly. Move on to unfasten the front seat cushion inner shield before removing the power seat switch. Proceed to eliminate the pad-mounted front seat cushion cover. To retrieve the separate type front seat cushion heater assembly from the separate type front seat cushion cover both the 18 hog rings must be removed while cutting away the 25 tack pins.

OEM Toyota Venza Seat Heater

Seat Warmer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Seat Heaters found

View related parts

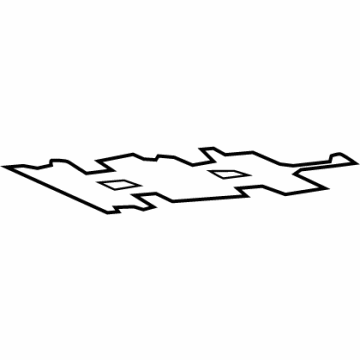

Toyota Venza Seat Cushion Heater, Front Lower
Part Number: 87510-0T011
$336.09 MSRP: $479.86
You Save: $143.77 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Left Lower, Front Right Lower; Heater Assembly, Front Seat Cushion, Passenger Side; Driver Side; Seat Heater
- Manufacturer Note: WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Front Lower
- Replaces: 87510-0T010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, Limited, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

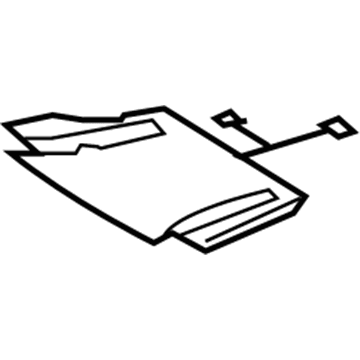

Toyota Venza Seat Back Heater, Front Upper
Part Number: 87530-0R070
$208.99 MSRP: $298.39
You Save: $89.40 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat Ba; Seat Heater Pad, Front Left Upper, Front Right Upper; Element; Heater Assembly, Front Seat Back, Passenger Side; Heater Assembly, Front Seat Back, Driver Side; Seat Heater
- Position: Front Upper
- Replaces: 87530-42060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

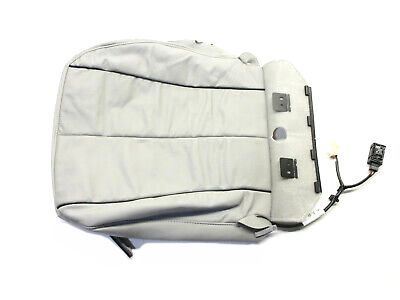

Toyota Venza Seat Back Heater, Front Upper
Part Number: 87530-0T011
$336.09 MSRP: $479.86
You Save: $143.77 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat Ba; Seat Heater Pad, Front Left Upper, Front Right Upper; Element; Heater Assembly, Front Seat Back, Passenger Side; Heater Assembly, Front Seat Back, Driver Side; Seat Heater
- Manufacturer Note: WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Front Upper
- Replaces: 87530-0T010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, Limited, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

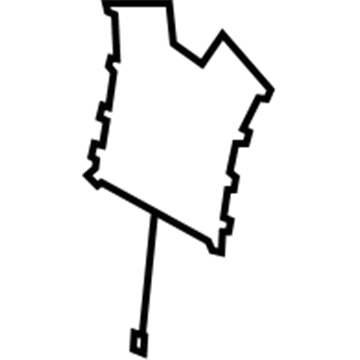

Toyota Venza Seat Cushion Heater, Driver Side
Part Number: 87510-48410
$208.94 MSRP: $298.33
You Save: $89.39 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Element; Heater Assembly, Front Seat Cushion, Driver Side
- Manufacturer Note: SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Seat Cushion Heater, Passenger Side
Part Number: 87510-48400
$208.94 MSRP: $298.33
You Save: $89.39 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Element; Heater Assembly, Front Seat Cushion, Passenger Side
- Manufacturer Note: SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Seat Cushion Heater, Driver Side
Part Number: 87510-48290
$208.99 MSRP: $298.39
You Save: $89.40 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Left; Element; Heater Assembly, Front Seat Cushion, Driver Side; Seat Heater
- Manufacturer Note: SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Seat Cushion Heater, Front Lower
Part Number: 87510-0T012
$336.09 MSRP: $479.86
You Save: $143.77 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly, Seat; Seat Heater Pad, Front Left Lower, Front Right Lower; Heater Assembly, Front Seat Cushion, Passenger Side; Heater Assembly, Front Seat Cushion, Driver Side; Seat Heater
- Manufacturer Note: WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
- Position: Front Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

Toyota Venza Seat Heater

Choose genuine Seat Heater that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Seat Heater for your Toyota Venza? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Venza parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

One of the defining features of all cars is the Toyota Venza Seat Heater; one that brings the comfort of heated seats to the occupants of the car particularly during the cold season. Owing to its design, the Seat Heater, which is installed into upholstery of Toyota Venza, operates with the help of the heat pad system that, to the utmost degree, warms up necessary zones. This feature does not differentiate between the different models of the Venza; thus, creating comfort for the driver and the passengers. This new model which has been described as reliable and performant, has recently been acclaimed for its safety devices from the IIHS, notably the "Top Safety Pick". That is why Seat Heater proves to be a highly beneficial asset in contributing to the overall efficiency and safety as it prevents the discomfort of the driver to distract his/her attention to the heater instead of the road. The controls of this Toyota Venza Seat Heater is quite simple to operate and this therefore makes it easier to regulate according to the user's desires, and this therefore makes this part practical in a car. Moreover, the Toyota Venza is also focused to the fact that it has to be comfortable and the driving experience should be enjoyed by every consumer in the market. Thus, Toyota Venza's qualified engineering as a crossover SUV and the Seat Heater innovation guarantees this car to be firm and productive for families and individuals. In conclusion, the Toyota Venza Seat Heater is underlining characteristic that meets the company's high standard and client's requirements.

Toyota Venza Seat Heater Parts and Q&A

Seat Back Heater, Front Upper
87530-0T011
Q: How to install the separate type front Seat Heater on Toyota Venza?
A:
When installing the separate type front seat cushion heater use a tacker and 25 new tack pins to attach it to the end of the separate type front seat cushion cover without causing damage to the cushion. Follow by placing the separate type front seat cover temporarily during installation to insert 18 new hog rings while ensuring minimal wrinkle formation. The series of installation involves placing the front seat cushion cover with pad then adding the power Seat Switch and finally attaching the front seat cushion inner shield. As a next step install the front seat inner belt assembly after which install the front seat cushion shield assembly. The installation process requires addition of the slide and vertical power seat switch knob and the reclining power seat switch knob before installing the front seat assembly. Finishing the installation by putting together the front seat rear inner track cover, front seat rear outer track cover and front seat headrest assembly. Complete inspections of front seat assembly as well as SRS warning light. Special Service Tool: 09800-10000.
Seat Cushion Heater, Front Lower
87510-0T011
Q: How to Remove the Seat Heater from the Front Seat Cushion on Toyota Venza?
A:
The removal process of the front seat cushion heater begins with disassembly of the front seat headrest assembly before handling the front seat rear outer track cover followed by the front seat rear inner track cover. The rear step begins with separating the front seat assembly whereas the reclining power Seat Switch knob followed by the slide and vertical power seat switch knob require detachment. You must remove the front seat cushion shield assembly along with the front seat inner belt assembly. Move on to unfasten the front seat cushion inner shield before removing the power seat switch. Proceed to eliminate the pad-mounted front seat cushion cover. To retrieve the separate type front seat cushion heater assembly from the separate type front seat cushion cover both the 18 hog rings must be removed while cutting away the 25 tack pins.
