How to install the exhaust pipe assembly on Toyota Venza?

Before installation of the exhaust pipe assembly the technician must measure compression spring length with a vernier caliper to replace the spring if it is shorter than 41.5 mm (1.64 in.). Fully insert a new gasket into the exhaust manifold converter sub-assembly while using a plastic hammer and wooden block to press it until flush with the surface. Install it with correct direction and avoid reuse and damage. Screw the front exhaust pipe assembly to 2 bolts and 2 compression springs before torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). You must apply a new gasket to the center exhaust pipe assembly followed by its connection to the 2 exhaust pipe supports then tighten 2 bolts to 43 Nm (438 kgf-cm, 32 ft-lbf). To install the tail exhaust pipe assembly check the free length of the compression springs and replace them whenever the measurement falls under 38.5 mm (1.52 in.). Irrespective of safety measures, install another gasket onto the center exhaust pipe assembly while tapping it until it becomes flush. Fasten the 2 bolts together with 2 compression springs to the 4 exhaust pipe supports while torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). Stick the concave surface of tail exhaust pipe baffle sub-assemblies to matching protuberances of the tail exhaust pipe assembly before tapping them uniformly with a plastic hammer. Install the heated oxygen sensor and check exhaust gas leaks as the last step of the process.

OEM Toyota Venza Exhaust Pipe

Exhaust Tail Pipe

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Exhaust Pipes found

View related parts

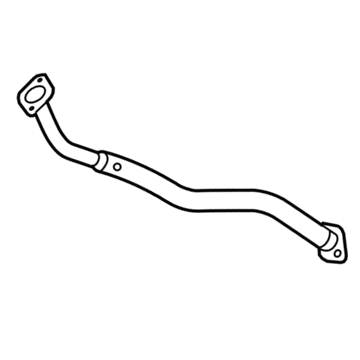

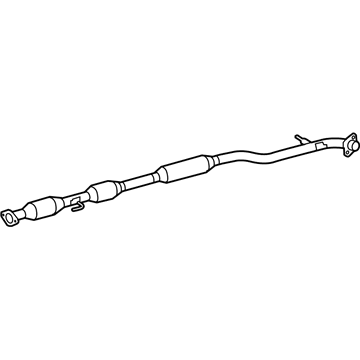

Toyota Venza Intermed Pipe, Center
Part Number: 17420-0V010
$1034.11 MSRP: $1388.07
You Save: $353.96 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe, Rear; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota Venza | Base, LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Front Pipe
Part Number: 17410-0V010
$182.97 MSRP: $239.28
You Save: $56.31 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Crossover Pipe, Front; Exhaust Pipe; Pipe Assembly, Exhaust, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Front Pipe
Part Number: 17410-0P310
$228.54 MSRP: $298.86
You Save: $70.32 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Pipe; Pipe Assembly, Exhaust, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts

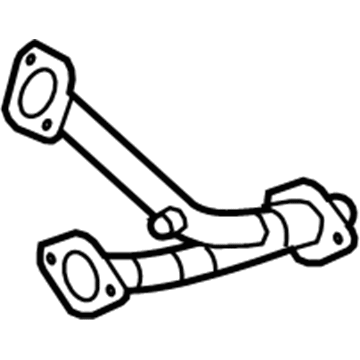

Toyota Venza Front Pipe
Part Number: 17403-0P060
$182.97 MSRP: $239.28
You Save: $56.31 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Sub-Assembly, Exhaust; Exhaust Crossover Pipe; Exhaust Pipe; Exhaust Y Pipe; Connector Pipe; Pipe Sub-Assembly, Exhaust, Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts

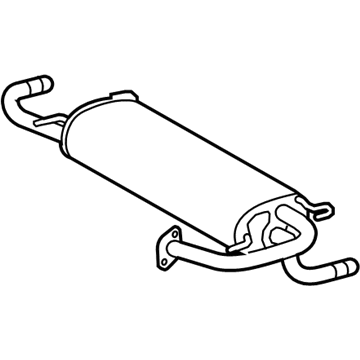

Toyota Venza Muffler & Pipe
Part Number: 17430-25241
$462.76 MSRP: $621.15
You Save: $158.39 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Tail; Exhaust Muffler; Exhaust Pipe; Tail Pipe; Muffler; Pipe Assembly, Exhaust, Tail
- Replaces: 17430-25240
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

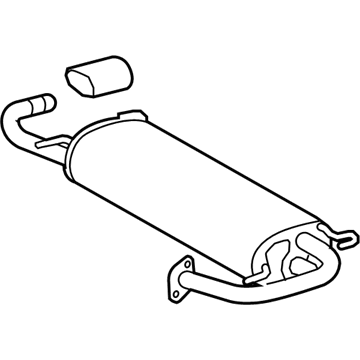

Toyota Venza Muffler
Part Number: 17430-0V012
$563.96 MSRP: $756.99
You Save: $193.03 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust Tail; Exhaust Muffler; Exhaust Muffler Assembly; Pipe Assembly, Exhaust, Tail
- Replaces: 17430-0V011, 17430-0V010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0V251
$859.90 MSRP: $1154.23
You Save: $294.33 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe, Rear; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Replaces: 17420-0V250
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota Venza | LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0V241
$859.90 MSRP: $1154.23
You Save: $294.33 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe, Rear; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Replaces: 17420-0V240
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota Venza | LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0V030
$1034.11 MSRP: $1388.07
You Save: $353.96 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe, Rear; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota Venza | Base, LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0P271
$1006.05 MSRP: $1350.42
You Save: $344.37 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Replaces: 17420-0P270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2015 Toyota Venza | LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0P261
$1006.05 MSRP: $1350.42
You Save: $344.37 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Replaces: 17420-0P260
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2015 Toyota Venza | LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0P210
$1292.61 MSRP: $1735.05
You Save: $442.44 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Venza | Base | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Intermed Pipe, Center
Part Number: 17420-0P200
$1292.61 MSRP: $1735.05
You Save: $442.44 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Venza | Base | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Front Pipe
Part Number: 17410-25670
$768.50 MSRP: $1031.55
You Save: $263.05 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Center Pipe; Pipe Assembly, Exhaust, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

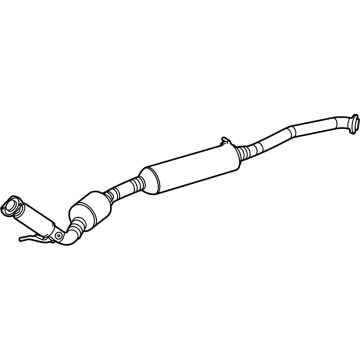

Toyota Venza Front Pipe
Part Number: 17410-25280
$974.11 MSRP: $1307.54
You Save: $333.43 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly, Exhaust; Exhaust Intermediate Pipe, Front; Catalytic Converter, Rear; Catalytic Converter; Exhaust Pipe; Center Pipe; Pipe Assembly, Exhaust, Front
- Manufacturer Note: *114=TOYOTA/PB3/Y
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Muffler
Part Number: 17430-0P170
$603.01 MSRP: $809.42
You Save: $206.41 (26%)
Product Specifications
- Other Name: Pipe Assembly, Exhaust Tail; Exhaust Muffler; Exhaust Muffler Assembly; Pipe Assembly, Exhaust, Tail
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2015 Toyota Venza | Base, LE, Limited, XLE | 6 Cyl 3.5 L GAS

Toyota Venza Exhaust Pipe

If you're thinking about purchasing OEM parts for your Toyota Venza, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Venza Exhaust Pipe at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Venza Exhaust Pipe Parts Questions & Experts Answers

Front Pipe
17403-0P060
Q: How to install the exhaust pipe assembly on Toyota Venza?
A: Before installation of the exhaust pipe assembly the technician must measure compression spring length with a vernier caliper to replace the spring if it is shorter than 41.5 mm (1.64 in.). Fully insert a new gasket into the exhaust manifold converter sub-assembly while using a plastic hammer and wooden block to press it until flush with the surface. Install it with correct direction and avoid reuse and damage. Screw the front exhaust pipe assembly to 2 bolts and 2 compression springs before torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). You must apply a new gasket to the center exhaust pipe assembly followed by its connection to the 2 exhaust pipe supports then tighten 2 bolts to 43 Nm (438 kgf-cm, 32 ft-lbf). To install the tail exhaust pipe assembly check the free length of the compression springs and replace them whenever the measurement falls under 38.5 mm (1.52 in.). Irrespective of safety measures, install another gasket onto the center exhaust pipe assembly while tapping it until it becomes flush. Fasten the 2 bolts together with 2 compression springs to the 4 exhaust pipe supports while torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). Stick the concave surface of tail exhaust pipe baffle sub-assemblies to matching protuberances of the tail exhaust pipe assembly before tapping them uniformly with a plastic hammer. Install the heated Oxygen Sensor and check exhaust gas leaks as the last step of the process.
