How to remove the exhaust manifold on Toyota Venza?

The first step for exhausting the manifold is to wear protective gloves and wait until the exhaust pipe becomes safe to touch by checking if it has cooled down after the engine stops. Commence the procedure by taking out the No. 1 engine under cover together with the No. 2 engine under cover. The first step involves disconnecting the clamp and connector while removing 4 bolts and two compression springs and the front exhaust pipe assembly. The following step requires the removal of two gaskets from both the exhaust manifold converter sub-assembly and center exhaust pipe assembly. You should now uninstall the air fuel ratio sensor which is located at Bank 1 Sensor 1. You should first remove the manifold stay by extracting its bolt and nut together with the stay before proceeding to take apart the No. 2 manifold stay through the same steps. Start by removing the No. 1 exhaust manifold heat insulator through the removal of its 4 bolts and finish by removing the exhaust manifold converter sub-assembly after unscrewing the 5 nuts. You should detach the No. 2 exhaust manifold heat insulator by removing its 2 bolts followed by the removal of the No. 1 manifold converter insulator by unscrewing all 4 bolts.

How to install the exhaust manifold on Toyota Venza?

First install the No. 1 manifold converter insulator by using 4 bolts and torquing them to 12 Nm (122 kgf-cm, 9 ft-lbf). Mount the No. 2 exhaust manifold heat insulator with two bolts that require torquing to 12 Nm (122 kgf-cm, 9 ft-lbf). Place a new gasket on the cylinder head while installing the exhaust manifold converter sub-assembly with 5 nuts which should be tightened according to sequence to reach a torque of 35 Nm (357 kgf-cm, 26 ft-lbf). Install the No. 1 exhaust manifold heat insulator via 4 bolts while torquing them to 12 Nm (122 kgf-cm, 9 ft-lbf). First install the No. 2 manifold stay with a bolt and nut before adding another bolt and nut for the manifold stay with both torques set to 43 Nm (438 kgf-cm, 32 ft-lbf). Follow the installation of Bank 1 Sensor 1 air fuel ratio sensor by proceeding with front exhaust pipe assembly. Measure the free length of the compression spring using a vernier caliper and replace it if the measurement falls below 41.5 mm (1.64 in.). Position a totally new exhaust manifold converter sub-assembly gasket correctly into position through the use of both a plastic hammer and a wooden block to achieve suitable flatness. Use a new gasket to join components of the center exhaust pipe assembly before mounting the front exhaust pipe with 2 compression springs and 4 bolts which need to be torqued to 43 Nm (438 kgf-cm, 32 ft-lbf) and attach the clamp and connector. The inspection for exhaust gas leaks should be performed before you properly position the No. 2 and No. 1 engine under covers.

OEM Toyota Venza Exhaust Manifold

Engine Exhaust Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Exhaust Manifolds found

View related parts

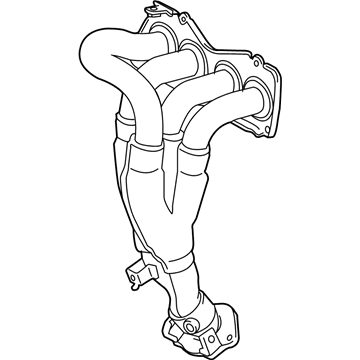

Toyota Venza Exhaust Manifold
Part Number: 17141-25021
$474.31 MSRP: $695.09
You Save: $220.78 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Exhaust; Catalytic Converter
- Manufacturer Note: MARK L:REFER ILLUST.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Exhaust Manifold
Part Number: 25051-0V080
$481.57 MSRP: $600.20
You Save: $118.63 (20%)
ADD TO CART
Product Specifications
- Other Name: Converter Sub-Assembly; Manifold Converter; Converter Sub-Assembly, Exhaust Manifold
- Manufacturer Note: (L),*212
- Replaces: 25051-36030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota Venza | Base, LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Exhaust Manifold
Part Number: 25051-0V270
$394.06 MSRP: $491.14
You Save: $97.08 (20%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Converter Sub-Assembly; Converter Sub-Assembly, Exhaust Manifold
- Manufacturer Note: MARK=0V270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015 Toyota Venza | LE, XLE | 4 Cyl 2.7 L GAS
View related parts
Toyota Venza Exhaust Manifold, Driver Side
Part Number: 17150-0P310
$456.08 MSRP: $668.39
You Save: $212.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly, Exhaust; Manifold Sub-Assembly, Exhaust, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015 Toyota Venza | Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Exhaust Manifold, Driver Side
Part Number: 17150-0P240
$563.97 MSRP: $826.51
You Save: $262.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly, Exhaust; Catalytic Converter with Integrated Exhaust Manifold, Left; Manifold Sub-Assembly, Exhaust, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2015 Toyota Venza | LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Exhaust Manifold, Driver Side
Part Number: 17150-0P040
$607.33 MSRP: $890.04
You Save: $282.71 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly, Exhaust; Catalytic Converter with Integrated Exhaust Manifold, Left; Manifold Converter; Manifold Sub-Assembly, Exhaust, Driver Side
- Manufacturer Note: MARK L0P040
- Position: Driver Side
- Replaces: 17150-31050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Venza | Base | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Exhaust Manifold
Part Number: 17141-25650
$1220.45 MSRP: $1788.59
You Save: $568.14 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Exhaust
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Venza | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Venza Exhaust Manifold, Passenger Side
Part Number: 17140-0P240
$512.10 MSRP: $750.49
You Save: $238.39 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly, Exhaust; Catalytic Converter with Integrated Exhaust Manifold, Right; Manifold Sub-Assembly, Exhaust, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2015 Toyota Venza | LE, Limited, XLE | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Exhaust Manifold, Passenger Side
Part Number: 17140-0P020
$686.44 MSRP: $1005.98
You Save: $319.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly, Exhaust; Catalytic Converter with Integrated Exhaust Manifold, Right; Manifold Converter; Manifold Sub-Assembly, Exhaust, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Venza | Base | 6 Cyl 3.5 L GAS
View related parts
Toyota Venza Exhaust Manifold
Part Number: 25051-0V100
$415.63 MSRP: $518.01
You Save: $102.38 (20%)
Ships in 1-3 Business Days
Product Specifications
- Other Name: Converter Sub-Assembly; Manifold Converter; Converter Sub-Assembly, Exhaust Manifold
- Manufacturer Note: MARK=0V100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2015 Toyota Venza | LE, XLE | 4 Cyl 2.7 L GAS

Toyota Venza Exhaust Manifold

Choose genuine Exhaust Manifold that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Exhaust Manifold for your Toyota Venza? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Venza parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Venza exhaust manifold is a crucial part, which plays an important role in making the vehicle reliable as well as enhancing the car's performance. The Toyota Venza Exhaust Manifold is Tom's automotive delight as it was specifically intended to provide a efficient flow of hot exhaust gases from the engine to the system to help in the optimization of its efficiency and safety. It is made of solid cast iron or stainless steel which makes it to be long lasting withstanding the pressure of the frequent wear, thus, has been used in various models of the Venza manufactured after the year 2008. First, the design of the manifold inhibits intake reversion that affects the airflow and the performance of the automobile's engine while continuously preserving functionality. In a special note, the Toyota Venza Exhaust Manifold applies for both 2.7 L inline 4-cylinder and 3.5 L V6 engines, and compatible trim levels: Standard, LE, XLE, and Limited. These components or functions, for instance the incorporation of enhanced technologies like Yamaha's EXUP system, vary the back pressure in relation to the engine pace thus putting the Toyota Venza in a class of its own in the automotive industry. The Exhaust Manifold should be well maintained and replaced often to maintain the safety and functionality of the vehicle, thus ensuring the Toyota Venza is indeed a reliable crossover SUV. For this reason, the Toyota Venza Exhaust Manifold depicts a perfect integration of engineering and strength to ensure customers drive efficient cars.

Toyota Venza Exhaust Manifold Parts and Q&A

Exhaust Manifold, Passenger Side
17140-0P020
Q: How to remove the exhaust manifold on Toyota Venza?
A:
The first step for exhausting the manifold is to wear protective gloves and wait until the Exhaust Pipe becomes safe to touch by checking if it has cooled down after the engine stops. Commence the procedure by taking out the No. 1 engine under cover together with the No. 2 engine under cover. The first step involves disconnecting the clamp and connector while removing 4 bolts and two compression springs and the front exhaust pipe assembly. The following step requires the removal of two gaskets from both the exhaust manifold converter sub-assembly and center exhaust pipe assembly. You should now uninstall the air fuel ratio sensor which is located at Bank 1 Sensor 1. You should first remove the manifold stay by extracting its bolt and nut together with the stay before proceeding to take apart the No. 2 manifold stay through the same steps. Start by removing the No. 1 exhaust manifold heat insulator through the removal of its 4 bolts and finish by removing the exhaust manifold converter sub-assembly after unscrewing the 5 nuts. You should detach the No. 2 exhaust manifold heat insulator by removing its 2 bolts followed by the removal of the No. 1 manifold converter insulator by unscrewing all 4 bolts.
Exhaust Manifold
25051-0V080
Q: How to install the exhaust manifold on Toyota Venza?
A:
First install the No. 1 manifold converter insulator by using 4 bolts and torquing them to 12 Nm (122 kgf-cm, 9 ft-lbf). Mount the No. 2 exhaust manifold heat insulator with two bolts that require torquing to 12 Nm (122 kgf-cm, 9 ft-lbf). Place a new gasket on the cylinder head while installing the exhaust manifold converter sub-assembly with 5 nuts which should be tightened according to sequence to reach a torque of 35 Nm (357 kgf-cm, 26 ft-lbf). Install the No. 1 exhaust manifold heat insulator via 4 bolts while torquing them to 12 Nm (122 kgf-cm, 9 ft-lbf). First install the No. 2 manifold stay with a bolt and nut before adding another bolt and nut for the manifold stay with both torques set to 43 Nm (438 kgf-cm, 32 ft-lbf). Follow the installation of Bank 1 Sensor 1 air fuel ratio sensor by proceeding with front Exhaust Pipe assembly. Measure the free length of the compression spring using a vernier caliper and replace it if the measurement falls below 41.5 mm (1.64 in.). Position a totally new exhaust manifold converter sub-assembly gasket correctly into position through the use of both a plastic hammer and a wooden block to achieve suitable flatness. Use a new gasket to join components of the center exhaust pipe assembly before mounting the front exhaust pipe with 2 compression springs and 4 bolts which need to be torqued to 43 Nm (438 kgf-cm, 32 ft-lbf) and attach the clamp and connector. The inspection for exhaust gas leaks should be performed before you properly position the No. 2 and No. 1 engine under covers.
