How to install the Air Injection Pump Assembly and related components on Toyota Tundra?

The slot should be inserted over the stud and bracket tab before placing the bracket tab inside the slot. Fasten the assembly by bolting it with 2 pieces then tightening the bolts to 18 Nm (184 kgf-cm, 13 ft-lbf) while tightening the nuts to 12 Nm (122 kgf-cm, 9 ft-lbf). Begin by installing the No. 2 Air Injection System Hose according to provided illustrations while also attaching these connectors with 2 connector clamps. Affix the fender apron seal with two clips and fasten the Front Fender Liner RH by means of nine clips. When attaching the cable to the negative terminal seek attention to systems that need post-reconnection initialization.

How to remove and replace the Air Injection Pump on Toyota Tundra?

Before uninstalling the Air Injection Pump you need to detach the negative battery cable and spend a minimum of ninety seconds with the ignition off for the navigation system to store its memory. The right-hand side front fender liner can be removed through the removal of nine clips. Use a clip remover to remove two clips that enable the detachment of the No. 3 air injection system hose. Afterward, unfold the fender apron seal and disconnect 2 connectors and remove 2 connector clamps before unfastening 2 clamps and 2 bracket clips to remove the hose completely. Detach the bracket clip to take away the No. 2 air injection system hose. Finish the task by taking out 2 bolts and 2 nuts from the air pump assembly.

OEM Toyota Tundra Air Injection Pump

SAI Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Injection Pumps found

View related parts

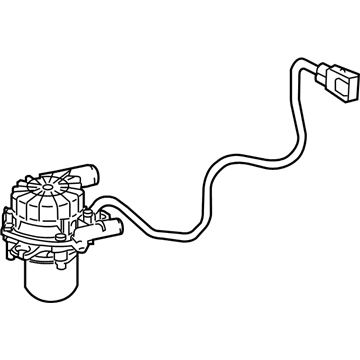

Toyota Tundra Air Pump
Part Number: 17610-0S030
$463.41 MSRP: $679.14
You Save: $215.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Air; Secondary Air Injection Pump; A.I.R. Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Pump Assembly, Air, Driver Side
Part Number: 17610-0S010
$402.46 MSRP: $589.81
You Save: $187.35 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Secondary Air Injection Pump
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2013 Toyota Tundra | Base, Limited, Platinum, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra A.I.R. Pump, Passenger Side
Part Number: 17610-0C010
$427.32 MSRP: $626.23
You Save: $198.91 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Air; Secondary Air Injection Pump, Right; Secondary Air Injection Pump
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Pump Assembly, Air, Driver Side
Part Number: 17600-0F010
$476.80 MSRP: $698.76
You Save: $221.96 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Air W/Bra; Secondary Air Injection Pump
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2009 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Air Pump
Part Number: 17610-0P010
$478.28 MSRP: $700.93
You Save: $222.65 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Air; Secondary Air Injection Pump; A.I.R. Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota Tundra | Base, SR, SR5 | 6 Cyl 4.0 L GAS

Toyota Tundra Air Injection Pump

Choose genuine Air Injection Pump that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Air Injection Pump for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Tundra Air Injection Pump is one of the sub-models of Toyota Tundra and is considered to be one of the premier offerings of the company. About this significant part, it is important for improving the control of emission exhaust through the injection of air in the exhaust to facilitate the completion of dangerous gases. Consequently, the Toyota Tundra part called the Air Injection Pump affords to minimize emissions, thus, having a positive impact on the environment. Compatible with many Tundra models, new and old, the Air Injection Pump has gradually changed with time and the premier technology available to support its operations. This flexibility helps Toyota development maintain high calibre Tundra that conforms to current environmental standards and further remain the go to workhorse. The Air Injection Pump also contributes the efficiency of the car and at the same time takes an important and meaningful function in safety aspect because it helps reducing the toxic fumes emission. Among the numerous advantages of the Toyota Tundra Air Injection Pump, one should define durability and high quality provided by the company's engineers' work. Through Toyota Tundra Air Injection Pump, the company has registered its competence thus acing its position in the full-size pickup segment.

Toyota Tundra Air Injection Pump Parts and Q&A

A.I.R. Pump, Passenger Side
17610-0C010
Q: How to install the Air Injection Pump Assembly and related components on Toyota Tundra?
A:
The slot should be inserted over the stud and bracket tab before placing the bracket tab inside the slot. Fasten the assembly by bolting it with 2 pieces then tightening the bolts to 18 Nm (184 kgf-cm, 13 ft-lbf) while tightening the nuts to 12 Nm (122 kgf-cm, 9 ft-lbf). Begin by installing the No. 2 Air Injection System Hose according to provided illustrations while also attaching these connectors with 2 connector clamps. Affix the fender apron seal with two clips and fasten the Front Fender Liner RH by means of nine clips. When attaching the cable to the negative terminal seek attention to systems that need post-reconnection initialization.
Pump Assembly, Air, Driver Side
17610-0S010
Q: How to remove and replace the Air Injection Pump on Toyota Tundra?
A:
Before uninstalling the Air Injection Pump you need to detach the negative battery cable and spend a minimum of ninety seconds with the ignition off for the navigation system to store its memory. The right-hand side front fender liner can be removed through the removal of nine clips. Use a clip remover to remove two clips that enable the detachment of the No. 3 air injection system hose. Afterward, unfold the fender apron seal and disconnect 2 connectors and remove 2 connector clamps before unfastening 2 clamps and 2 bracket clips to remove the hose completely. Detach the bracket clip to take away the No. 2 air injection system hose. Finish the task by taking out 2 bolts and 2 nuts from the air pump assembly.
