How to service and repair the A/C Clutch on Toyota Tundra?

The repair process for compressor and magnetic clutch (1GR-FE) starts with engine idle along with active A/C for 10 minutes before stopping the engine and removing the battery's negative (-) terminal cable. The first step requires the removal of refrigerant from the refrigeration system and later removal of the engine under cover followed by detachment of the discharge hose through nut and O-ring removal from the discharge hose sub-assembly and tape application for sealing all openings to block moisture and foreign materials. Then disconnect the suction hose by taking off its nut and O-ring from the sub-assembly of the suction hose and close the openings with vinyl tape. The compressor with magnetic clutch should be detached by disconnecting the wire connector then unscrewing all four bolts. Attach the compressor and magnetic clutch using 4 bolts while torquing them to 24 N.m (245 kgf.cm, 18 ft.lbf) before reconnecting the connector for installation. First install the suction hose by applying compressor oil (ND-OIL 8 or equivalent) to new O-ring and fitting surfaces. Then insert the O-ring followed by securing the hose with the nut while torquing it to 10 N.m (100 kgf.cm, 7 in.lbf). The technician should apply compressor oil to new O-rings and fitting surfaces before installing both hoses where the O-ring enables secure connections between the hose and fittings. Install the drive belt then check its function before putting back the engine under cover and restating the negative (-) terminal battery cable. You need to remove all air from the refrigeration system before filling it with refrigerant where you must use 600 plus or minus 50 g (21.16 plus or minus 1.76 oz.) of substance for access and standard cab models while double cab models require 530 plus or minus 50 g (18.69 plus or minus 1.76 oz.). A gas leak detector allows leakage inspection for refrigerant while joint torque needs verification when leakage occurs.

OEM Toyota Tundra A/C Clutch

Air Conditioning Clutch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 A/C Clutches found

View related parts

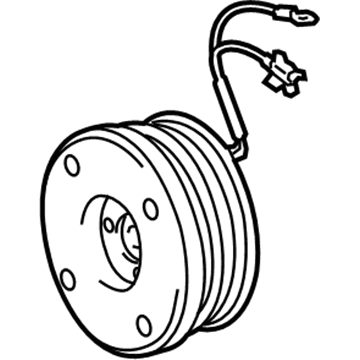

Toyota Tundra Clutch Assembly
Part Number: 88410-0C070
$125.71 MSRP: $177.96
You Save: $52.25 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch; Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

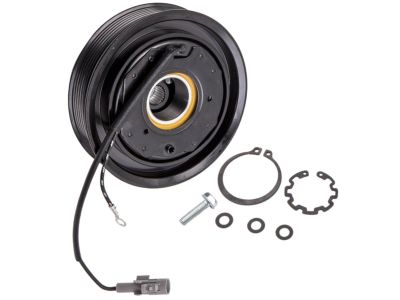

Toyota Tundra Clutch
Part Number: 88410-35430
$214.35 MSRP: $306.04
You Save: $91.69 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2006 Toyota Tundra | Base, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-34040
$144.98 MSRP: $205.24
You Save: $60.26 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Replaces: 88410-30440
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-0C080
$149.80 MSRP: $212.06
You Save: $62.26 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch; Clutch; Clutch Assembly, Magnet
- Manufacturer Note: AIR CONDITIONER-WITHOUT
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2017 Toyota Tundra | 1794 Edition, Base, Limited, Platinum, SR, SR5, TRD Pro | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Clutch
Part Number: 88410-0C010
$111.14 MSRP: $156.01
You Save: $44.87 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Clutch Coil
Part Number: 88411-02030
$138.83 MSRP: $196.53
You Save: $57.70 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Coil; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-2A030, 88411-22310, 88411-0C010, 88411-04010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-6A140
$150.04 MSRP: $212.40
You Save: $62.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Manufacturer Note: AIR CONDITIONER-WITHOUT
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota Tundra | Base, SR, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-0C130
$148.27 MSRP: $209.90
You Save: $61.63 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2021 Toyota Tundra | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Hub
Part Number: 88403-0C010
$131.74 MSRP: $186.50
You Save: $54.76 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch Drive; Hub Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Rotor
Part Number: 88412-0C010
$278.33 MSRP: $397.39
You Save: $119.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-0C150
$467.38 MSRP: $684.96
You Save: $217.58 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch Coil; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Hub Sub-Assembly, Magnet Clutch
Part Number: 88403-06050
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Replaces: 88403-30290
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Compressor Pulley
Part Number: 88412-12150
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Clutch; Rotor; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, SR5 | 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Clutch Assembly
Part Number: 88410-0C090
Product Specifications
- Other Name: A/C Compressor Clutch; Clutch; Clutch Assembly, Magnet
- Manufacturer Note: AIR CONDITIONER-WITHOUT
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Tundra | Base, SR5 | 6 Cyl 4.0 L GAS

Toyota Tundra A/C Clutch

Choose genuine A/C Clutch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM A/C Clutch for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

In the same way that all automobiles have their respective components that every vehicle owner needs to check, the Toyota Tundra A/C Clutch is an important part of the automobile that conveys Toyota's reliability and performance. The A/C Clutch of this Tundra brand is a vital component in the automobile's air conditioning system by effectively translating and transmitting power from the engine to the A/C compressor. In operation the Ac clutch is developed to control the A/C this enable the compressor to run while they are not developed to engage independently of the engine hence they do not put a strain on the engine when they are not in use. This mechanism also helps in improving the performance of Toyota Tundra aside from protecting and improving the functionality of the vehicle. Available for different Tundra variants of the two generations, the A/C Clutch guarantees optimum operation; thus, it is a go-to product for Tundra users. Compared with other automotive products in the market, Toyota Tundra A/C Clutch is quite unique and is characterized by high reliability and relatively low requirement for maintenance as it is quite durable. Also, there is no interruption of the belt while engaging the A/C Clutch; thus, there is a comfort cabin temperature to improve the drive experience. The Toyota Tundra A/C Clutch is a perfect example of Toyota's quality and commitment to providing functional vehicles which are not only good performers but also good climate controllers for their owners' vehicles such as the Tundra.

Toyota Tundra A/C Clutch Parts and Q&A

Clutch
88410-35430
Q: How to service and repair the A/C Clutch on Toyota Tundra?
A:
The repair process for compressor and magnetic clutch (1GR-FE) starts with engine idle along with active A/C for 10 minutes before stopping the engine and removing the battery's negative (-) terminal cable. The first step requires the removal of refrigerant from the refrigeration system and later removal of the engine under cover followed by detachment of the discharge hose through nut and O-ring removal from the discharge hose sub-assembly and tape application for sealing all openings to block moisture and foreign materials. Then disconnect the suction hose by taking off its nut and O-ring from the sub-assembly of the suction hose and close the openings with vinyl tape. The compressor with magnetic clutch should be detached by disconnecting the wire connector then unscrewing all four bolts. Attach the compressor and magnetic clutch using 4 bolts while torquing them to 24 N.m (245 kgf.cm, 18 ft.lbf) before reconnecting the connector for installation. First install the suction hose by applying compressor oil (ND-OIL 8 or equivalent) to new O-ring and fitting surfaces. Then insert the O-ring followed by securing the hose with the nut while torquing it to 10 N.m (100 kgf.cm, 7 in.lbf). The technician should apply compressor oil to new O-rings and fitting surfaces before installing both hoses where the O-ring enables secure connections between the hose and fittings. Install the Drive Belt then check its function before putting back the engine under cover and restating the negative (-) terminal battery cable. You need to remove all air from the refrigeration system before filling it with refrigerant where you must use 600 plus or minus 50 g (21.16 plus or minus 1.76 oz.) of substance for access and standard cab models while double cab models require 530 plus or minus 50 g (18.69 plus or minus 1.76 oz.). A gas leak detector allows leakage inspection for refrigerant while joint torque needs verification when leakage occurs.
