How to remove the front lower ball joint assembly on the LH side on Toyota RAV4?

The procedure for front lower ball joint assembly removal on the LH side starts with taking off the front wheel, moving on to disconnect the front speed sensor LH for 2WD systems then proceeding to remove the front brake cylinder assembly LH and front disc. The next removal step involves taking away the front axle hub nut before disconnecting the front suspension lower No. 1 arm sub-assembly LH and tie rod end sub-assembly LH. First remove the steering knuckle along with its axle hub then proceed to eliminate the front lower ball joint assembly LH using Special Service Tool: 09961-02050, 09960-20010, and 09961-02010. The front axle assembly requires installation into a vise with aluminum plates while avoiding excessive tightening force. Install Special Service Tool: 09960-20010 to the front lower ball joint while checking that the clearance measurement between tool and front axle assembly produces 1 mm (0.0394 in.) result. Both assembly tasks require two identical Special Service Tool: 09960-20010. To start, place the front lower ball joint onto the front axle assembly while using Special Service Tool: 09960-20010 and 09961-02010. Apply grease to both the bolt threads and tool tip and make sure the tool goes in with A and B parallel orientation before attaching a wrench to the specified part while keeping away from the front lower ball joint dust cover.

OEM Toyota RAV4 Ball Joint

Control Arm Joint

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Ball Joints found

View related parts

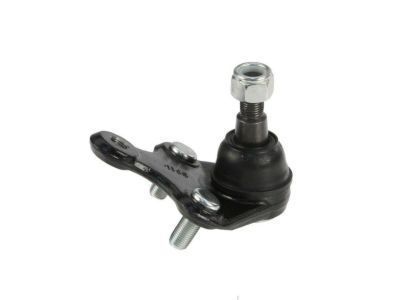

Toyota RAV4 Ball Joint, Lower
Part Number: 43330-09230
$65.52 MSRP: $91.97
You Save: $26.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front; Lower Ball Joint; Front Passenger & Driver Side Assembly; Suspension Ball Joint
- Position: Lower
- Replaces: 43330-09070, 43330-49045
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

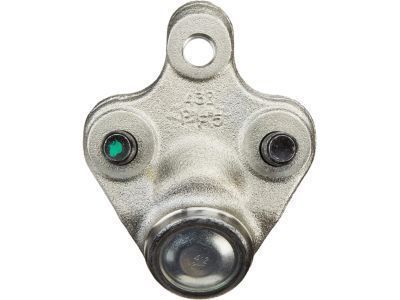

Toyota RAV4 Ball Joint, Lower
Part Number: 43330-09A90
$55.56 MSRP: $77.32
You Save: $21.76 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly Set, Lower; Suspension Ball Joint, Front; Lower Ball Joint; Joint Assembly, Lower Ball, Front Passenger Side; Joint Assembly, Lower Ball, Front Driver Side
- Position: Lower
- Replaces: 43330-49235
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Ball Joint, Lower
Part Number: 43330-09A80
$55.56 MSRP: $77.32
You Save: $21.76 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly Set, Lower; Suspension Ball Joint, Front; Lower Ball Joint; Joint Assembly, Lower Ball, Front Passenger Side; Joint Assembly, Lower Ball, Front Driver Side
- Position: Lower
- Replaces: 43330-49225
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Joint Assembly, Lower Ball, Front Passenger Side
Part Number: 43330-09720
$61.02 MSRP: $85.65
You Save: $24.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Set, Lower Ball; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint; Ball Joint
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2018 Toyota RAV4 | Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Lower Ball Joint
Part Number: 43330-49025
$76.42 MSRP: $107.27
You Save: $30.85 (29%)
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front; Joint Assembly, Lower Ball, Front Passenger Side; Front Driver Side; Suspension Ball Joint.
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS

Toyota RAV4 Ball Joint

If you're thinking about purchasing OEM parts for your Toyota RAV4, our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 Ball Joint at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota RAV4 Ball Joint Parts Questions & Experts Answers

Joint Assembly, Lower Ball, Front Passenger Side
43330-09720
Q: How to remove the front lower ball joint assembly on the LH side on Toyota RAV4?
A: The procedure for front lower ball joint assembly removal on the LH side starts with taking off the front wheel, moving on to disconnect the front Speed Sensor LH for 2WD systems then proceeding to remove the front brake cylinder assembly LH and front disc. The next removal step involves taking away the front axle hub nut before disconnecting the front suspension lower No. 1 arm sub-assembly LH and tie rod end sub-assembly LH. First remove the steering knuckle along with its axle hub then proceed to eliminate the front lower ball joint assembly LH using Special Service Tool: 09961-02050, 09960-20010, and 09961-02010. The front axle assembly requires installation into a vise with aluminum plates while avoiding excessive tightening force. Install Special Service Tool: 09960-20010 to the front lower ball joint while checking that the clearance measurement between tool and front axle assembly produces 1 mm (0.0394 in.) result. Both assembly tasks require two identical Special Service Tool: 09960-20010. To start, place the front lower ball joint onto the front axle assembly while using Special Service Tool: 09960-20010 and 09961-02010. Apply grease to both the bolt threads and tool tip and make sure the tool goes in with A and B parallel orientation before attaching a wrench to the specified part while keeping away from the front lower ball joint dust cover.
