How to service and repair the A/C Compressor Clutch on Toyota RAV4?

Commence compressor clutch service and repair operations by operating the engine at idle and enabling air conditioning mode for 10 minutes before shutting down the power source then removing the negative cable from the battery. First remove the drive belt then drain refrigerant from the cooling system and take away the RH front engine under cover. The system must be protected from moisture and dirt contamination through capping of open fittings after removing two discharge hose bolts. Separate the compressor by disconnecting its connector followed by unscrewing the 3 bolts and nut and stud bolt while maintaining the discharge and suction hose intact. The installation process requires fitting the compressor onto its mounting points by inserting the 3 bolts and nut and stud bolt. First, tighten Bolt A lightly then use your palm to push the rear compressor section downwards while proceeding with full torques of 24.5 Nm (250 kgf-cm, 18 ft-lbf) on Bolt B then nut and bolt C and finally Bolt A. Attach the connector and apply compressor oil to two newly installed O-rings. Place these rings into the hoses before connecting them with the torqued-to-9.8 N.m (100 kg.cm, 87 in.lb) 2 bolts. The installation of a new compressor requires a 100cc (3.5 fl.oz.) addition of ND-OIL 8 or an equivalent compressor oil. After hooking up the hose caps, immediately attach the hoses while avoiding any harm to the discharge and suction hose. After installing the drive belt follow up with negating the battery terminal connection and proceed to purify the refrigeration system using an air pump while charging it with 500 plus or minus 50 g (17.64 plus or minus 1.76 oz.) refrigerant. The technician should utilize a gas leak detector to identify any evidence of refrigerant leakage before checking the joint torque standards and conducting A/C operational examination.

OEM Toyota RAV4 A/C Compressor Clutch

Air Conditioning Clutch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 A/C Compressor Clutches found

View related parts
Toyota RAV4 Hub Sub-Assembly, Magnet Clutch Part Number: 88403-32010
$133.43 MSRP: $188.90
You Save: $55.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Clutch Assembly Part Number: 88410-33150
$175.20 MSRP: $250.16
You Save: $74.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C Compressor Clutch; Clutch & Pulley; Clutch; Clutch Assembly, Magnet
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Clutch & Pulley Part Number: 88410-42080
$231.01 MSRP: $329.83
You Save: $98.82 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.4 L GAS
View related parts

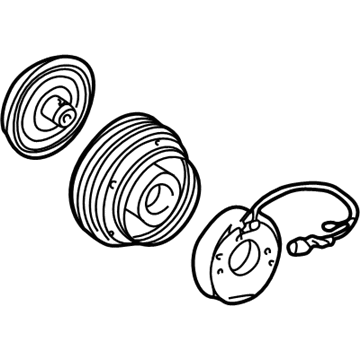

Toyota RAV4 Clutch Part Number: 88410-44010
$603.54 MSRP: $884.50
You Save: $280.96 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

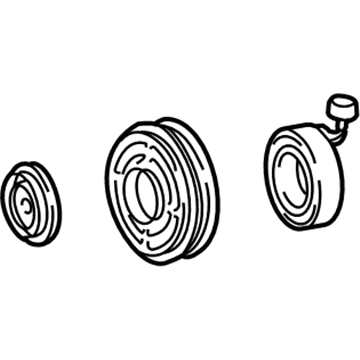

Toyota RAV4 Clutch & Pulley Part Number: 88410-42040
$186.62 MSRP: $266.45
You Save: $79.83 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Replaces: 88410-06080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

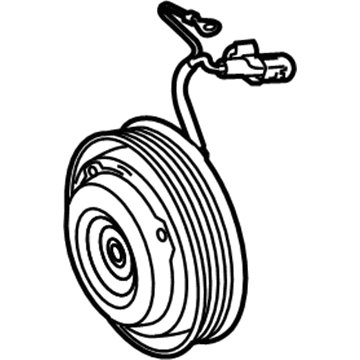

Toyota RAV4 Clutch & Pulley Part Number: 88410-42090
$196.17 MSRP: $280.09
You Save: $83.92 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch; Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts

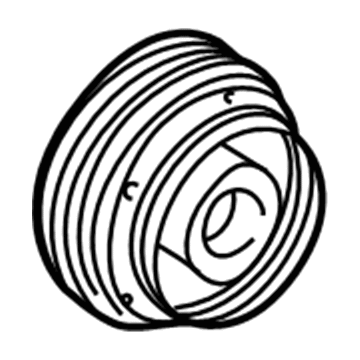

Toyota RAV4 Rotor Part Number: 88412-2A010
$293.03 MSRP: $418.39
You Save: $125.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1997 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

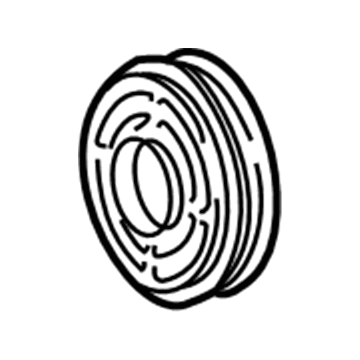

Toyota RAV4 Pulley Part Number: 88412-42010
$327.99 MSRP: $468.29
You Save: $140.30 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Drive; Rotor; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Rotor Part Number: 88412-44010
$330.34 MSRP: $471.64
You Save: $141.30 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor, Magnet Clutch; A/C Compressor Clutch Pulley; Rotor Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Clutch Coil Part Number: 88411-44010
$115.51 MSRP: $162.14
You Save: $46.63 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Coil; Stator; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-06050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Clutch Coil Part Number: 88411-42010
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1997 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Clutch Plate & Hub Assembly Part Number: 88403-12030
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet Clutch; A/C Compressor Clutch Drive; Hub; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1997 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Hub Sub-Assembly, Magnet Clutch Part Number: 88403-06050
Product Specifications
- Other Name: Hub Sub-Assembly, Magnet; A/C Compressor Clutch
- Replaces: 88403-30290
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Clutch Part Number: 88410-42010
Product Specifications
- Other Name: Clutch Assembly, Magnet; A/C Compressor Clutch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1997 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Clutch Coil Part Number: 88411-02030
Product Specifications
- Other Name: Stator, Magnet Clutch; A/C Compressor Clutch Coil; Magnet; Coil; Stator Sub-Assembly, Magnet Clutch; A/C Compressor Clutch
- Replaces: 88411-2A030, 88411-22310, 88411-0C010, 88411-04010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS

Toyota RAV4 A/C Compressor Clutch

Choose genuine A/C Compressor Clutch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM A/C Compressor Clutch for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota RAV4 A/C Compressor Clutch is in charge of delivering rotational energy to the compressor of the air conditioner in case the system is turned on and releasing that load in case of no need in cooling. The Toyota RAV4 cooling system assembly consists of an electronically operated magnetic drum within the pulley that becomes magnetic that pulls the drive plate into contact, clamps the belt drive and lets the compressor pump refrigerant; when power is cut off the A/C Compressor Clutch turns freely, which decreases resistance on the engine. A properly functioning A/C Compressor Clutch ensures that the system does not overstrain and the cabin temperatures remain comfortable, whereas a worn or damaged A/C Compressor Clutch will slip, stick or even break apart under centrifugal pressure. These problems may reduce the cooling efficiency, tear the drive belt, damage the fuel economy and produce heat that deforms the compressor nose or destroys bearings. In case of failure on a Toyota RAV4, the associated system problems must also be considered to help prevent repeated A/C Compressor Clutch damage, and replacement costs can vary depending on the specific application.

Toyota RAV4 A/C Compressor Clutch Parts and Q&A

Hub Sub-Assembly, Magnet Clutch
88403-32010
Q: How to service and repair the A/C Compressor Clutch on Toyota RAV4?
A:
Commence compressor clutch service and repair operations by operating the engine at idle and enabling air conditioning mode for 10 minutes before shutting down the power source then removing the negative cable from the battery. First remove the Drive Belt then drain refrigerant from the cooling system and take away the RH front engine under cover. The system must be protected from moisture and dirt contamination through capping of open fittings after removing two discharge hose bolts. Separate the compressor by disconnecting its connector followed by unscrewing the 3 bolts and nut and stud bolt while maintaining the discharge and suction hose intact. The installation process requires fitting the compressor onto its mounting points by inserting the 3 bolts and nut and stud bolt. First, tighten Bolt A lightly then use your palm to push the rear compressor section downwards while proceeding with full torques of 24.5 Nm (250 kgf-cm, 18 ft-lbf) on Bolt B then nut and bolt C and finally Bolt A. Attach the connector and apply compressor oil to two newly installed O-rings. Place these rings into the hoses before connecting them with the torqued-to-9.8 N.m (100 kg.cm, 87 in.lb) 2 bolts. The installation of a new compressor requires a 100cc (3.5 fl.oz.) addition of ND-OIL 8 or an equivalent compressor oil. After hooking up the hose caps, immediately attach the hoses while avoiding any harm to the discharge and suction hose. After installing the drive belt follow up with negating the battery terminal connection and proceed to purify the refrigeration system using an air pump while charging it with 500 plus or minus 50 g (17.64 plus or minus 1.76 oz.) refrigerant. The technician should utilize a gas leak detector to identify any evidence of refrigerant leakage before checking the joint torque standards and conducting A/C operational examination.
