How to remove the heated oxygen sensor for Bank 1 Sensor 2 on Toyota Prius?

The process to remove the heated oxygen sensor from Bank 1 Sensor 2 starts by taking off the rear No. 2 floor board with a combination of the rear deck floor box and rear No. 3 floor board. The disconnection of the negative battery terminal cable must be followed by a minimum 90-second interval prior to attempting any tasks which prevent Air Bag and seat belt pretensioner activation. As the next step you need to remove the lower center instrument panel finish panel. Begin by using a clip remover on the clip before folding back the front floor carpet to disconnect the sensor connector. The vehicle sensor grommet must be removed before separating the wire harness clamp bracket from the sensor. The removal process demands the use of Special Service Tool: 09224-00010 to separate the sensor.

How to install the Oxygen Sensor for Bank 1 Sensor 1 on Toyota Prius?

When installing the Air Fuel Ratio Sensor for Bank 1 Sensor 1, use Special Service Tool: 09224-00010 according to the necessary torque specification. Torque the sensor to 44 Nm (449 kgf-cm, 32 ft-lbf) with the tool or 40 Nm (408 kgf-cm, 30 ft-lbf) without the tool. The torque application must use a torque wrench that has a 30 cm (11.81 in.) fulcrum length. The wire harness clamp should be secured to the sensor while connecting the sensor connector. The converter installation requires connection of frame wire and No. 1 circuit breaker sensor while also connecting No. 6, No. 1, and No. 2 inverter cooling hoses. The installation procedure includes attaching the inverter cover followed by the front cowl top panel outer and windshield wiper motor and link assembly combined with cowl top ventilator louvers (RH and LH) and hood to cowl top seal before adding the front wiper arms (LH and RH) with their respective cover while completing the process with rear No. 3 floor board and rear deck floor box and rear No. 2 floor board. The procedure requires attachment of the service plug grip followed by connecting the cable to the negative battery terminal then filling inverter coolant before investigating for leaks. After installing the engine under cover (RH and LH), the radiator support opening cover should be installed before performing initialization steps which require specific battery cable procedures when disconnecting and reconnecting the negative (-) terminal.

OEM Toyota Prius Oxygen Sensor

Oxygen O2 Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Oxygen Sensors found

View related parts

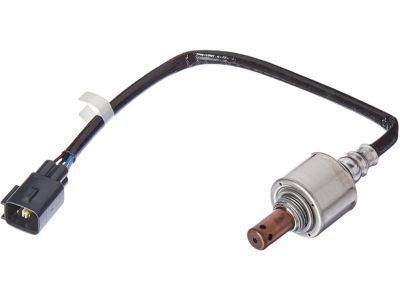

Toyota Prius Oxygen Sensor, Front
Part Number: 89467-02070
$208.52 MSRP: $297.73
You Save: $89.21 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Oxygen Sensor, Front; Air / Fuel Ratio Sensor; Air-Fuel Ratio Sensor; Air/Fuel Sensor; Front Oxygen Sensor; Upper Oxygen Sensor; Sensor, Air Fuel Ratio
- Manufacturer Note: (L)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Prius | Base, Five, Four, One, Persona Series, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts

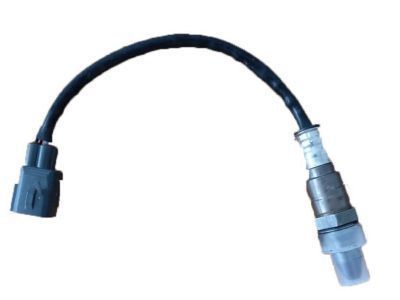

Toyota Prius Oxygen Sensor, Rear
Part Number: 89465-76010
$136.88 MSRP: $193.76
You Save: $56.88 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Rear; Lower Oxygen Sensor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2015 Toyota Prius | Five, Four, One, Persona Series, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts

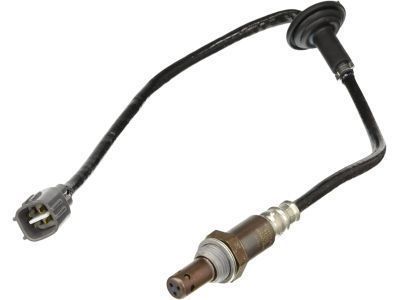

Toyota Prius Oxygen Sensor, Rear
Part Number: 89465-47080
$135.35 MSRP: $191.61
You Save: $56.26 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Rear; Lower Oxygen Sensor
- Manufacturer Note: MEXICO SPEC
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota Prius | Base, Five, Four, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor, Rear
Part Number: 89465-47070
$127.12 MSRP: $179.95
You Save: $52.83 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota Prius | Base, Touring | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor
Part Number: 89467-47030
$198.74 MSRP: $283.75
You Save: $85.01 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Upper Oxygen Sensor; Sensor, Air Fuel Ratio
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2022 Toyota Prius | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor
Part Number: 89467-47010
$175.09 MSRP: $249.98
You Save: $74.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Sensor, Air Fuel Ratio
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota Prius | Base, Touring | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor
Part Number: 89467-28090
$198.97 MSRP: $284.09
You Save: $85.12 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Air / Fuel Ratio Sensor; Air-Fuel Ratio Sensor; Air/Fuel Sensor; Sensor, Air Fuel Ratio
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2011 Toyota Prius | Base | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor, Rear
Part Number: 89465-02430
$133.94 MSRP: $189.60
You Save: $55.66 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Rear; Lower Oxygen Sensor
- Position: Rear
- Replaces: 89465-47090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2022 Toyota Prius | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor
Part Number: 89467-47050
$189.77 MSRP: $270.94
You Save: $81.17 (30%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Lower Oxygen Sensor; Sensor, Air Fuel Ratio
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Prius | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor
Part Number: 89467-47040
$168.72 MSRP: $238.84
You Save: $70.12 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Fuel Rat; Front Oxygen Sensor; Upper Oxygen Sensor; Sensor, Air Fuel Ratio
- Manufacturer Note: ENGINE-M20A-FKS (DS20)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Prius | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor, Rear
Part Number: 89465-47060
$122.89 MSRP: $173.97
You Save: $51.08 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Rear
- Manufacturer Note: REAR
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Prius | Base | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Prius Oxygen Sensor, Front
Part Number: 89465-47050
$117.90 MSRP: $166.33
You Save: $48.43 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Oxygen; Oxygen Sensor, Front
- Manufacturer Note: FRONT
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Prius | Base | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)

Toyota Prius Oxygen Sensor

Choose genuine Oxygen Sensor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Oxygen Sensor for your Toyota Prius? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Prius parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Prius Oxygen Sensor Parts and Q&A

Oxygen Sensor, Rear
89465-47070
Q: How to remove the heated oxygen sensor for Bank 1 Sensor 2 on Toyota Prius?
A:
The process to remove the heated oxygen sensor from Bank 1 Sensor 2 starts by taking off the rear No. 2 floor board with a combination of the rear deck floor box and rear No. 3 floor board. The disconnection of the negative battery terminal cable must be followed by a minimum 90-second interval prior to attempting any tasks which prevent Air Bag and seat belt pretensioner activation. As the next step you need to remove the lower center instrument panel finish panel. Begin by using a clip remover on the clip before folding back the front floor carpet to disconnect the sensor connector. The vehicle sensor grommet must be removed before separating the wire harness clamp bracket from the sensor. The removal process demands the use of Special Service Tool: 09224-00010 to separate the sensor.
Oxygen Sensor
89467-47010
Q: How to install the Oxygen Sensor for Bank 1 Sensor 1 on Toyota Prius?
A:
When installing the Air Fuel Ratio Sensor for Bank 1 Sensor 1, use Special Service Tool: 09224-00010 according to the necessary torque specification. Torque the sensor to 44 Nm (449 kgf-cm, 32 ft-lbf) with the tool or 40 Nm (408 kgf-cm, 30 ft-lbf) without the tool. The torque application must use a torque wrench that has a 30 cm (11.81 in.) fulcrum length. The wire harness clamp should be secured to the sensor while connecting the sensor connector. The converter installation requires connection of frame wire and No. 1 circuit breaker sensor while also connecting No. 6, No. 1, and No. 2 inverter cooling hoses. The installation procedure includes attaching the inverter cover followed by the front cowl top panel outer and windshield Wiper Motor and link assembly combined with cowl top ventilator louvers (RH and LH) and hood to cowl top seal before adding the front wiper arms (LH and RH) with their respective cover while completing the process with rear No. 3 floor board and rear deck floor box and rear No. 2 floor board. The procedure requires attachment of the service plug grip followed by connecting the cable to the negative battery terminal then filling inverter coolant before investigating for leaks. After installing the engine under cover (RH and LH), the radiator support opening cover should be installed before performing initialization steps which require specific battery cable procedures when disconnecting and reconnecting the negative (-) terminal.
