OEM Toyota MR2 Spyder Fan Motor

Toyota MR2 Spyder Fan Motor Parts Questions & Experts Answers

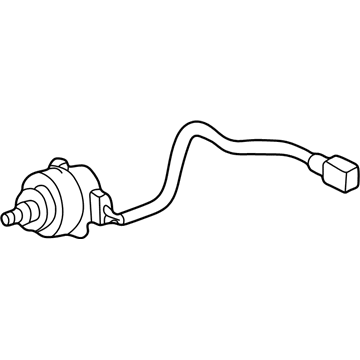

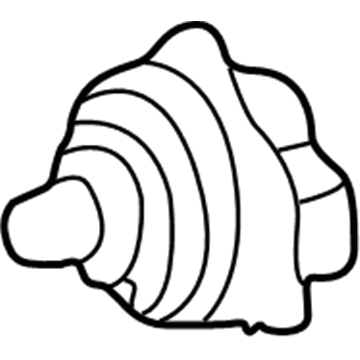

• Fan Motor, Driver Side
  16363-22050
  Q: How to service and repair the Radiator Cooling Fan Motor on Toyota MR2 Spyder?

  A: The Radiator Cooling Fan Motor service process starts by taking off the tool box and luggage compartment trim box cover and then disconnecting the 2 electric cooling fan connectors to remove the 2 bolts, 2 nuts, 2 spear wheel carrier extensions, and finally extracting the 2 bolts and electric cooling fan. Start disassembly by first removing the fan together with the nut followed by disconnecting the wire and connecting holder from the fan shroud then taking out the fan motor by removing its three screws. Reassembly requires the fan motor to be fixed with 3 screws at 2.55 Nm (26 kgf-cm, 23 inch lbs.) while wiring and connecting the holder onto the fan shroud. Place the fan inside the nut while tightening it to 6.18 Nm (63 kgf-cm, 55 inch lbs.). Install the electric cooling fan by tightening its 2 bolts to 5 Nm torque followed by fitting the 2 spear wheel carrier extensions with 2 bolts and 2 nuts at 8 Nm torque then reconnect the 2 electric cooling fan connectors. Install the luggage compartment trim box cover along with the tool box as the last step.
