How to service the spark plugs on Toyota Matrix?

The 2AZ-FE engine service requires the first step to be removing the No. 1 engine cover sub-assembly. To begin the procedure disconnect the four ignition coil connectors followed by removing all four bolts together with the four ignition coils. Finally, remove the 4 spark plugs.

How to install the spark plugs and ignition coils on Toyota Matrix?

The process of installing spark plugs for a 2AZ-FE engine control starts with tightening each of the 4 spark plugs to 19 Nm (194 kgf-cm, 14 ft-lbf). The 4 ignition coils need installation using 4 bolts that require torque of 9.0 Nm (92 kgf-cm, 80 in-lbf). You must install the No. 1 engine cover sub-assembly after connection of all 4 ignition coil connectors.

OEM Toyota Matrix Spark Plug

Ignition Spark Plug

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Spark Plugs found

View related parts

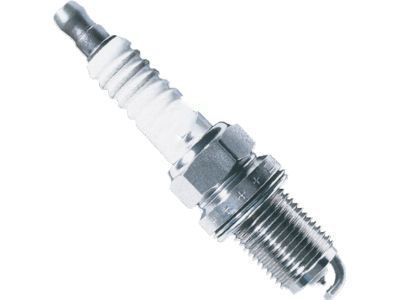

Toyota Matrix Plug, Spark
Part Number: 90919-01275
$13.85 MSRP: $19.28
You Save: $5.43 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spark Plug
- Replaces: 90919-01253
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Matrix | Base | 4 Cyl 1.8 L GAS
View related parts

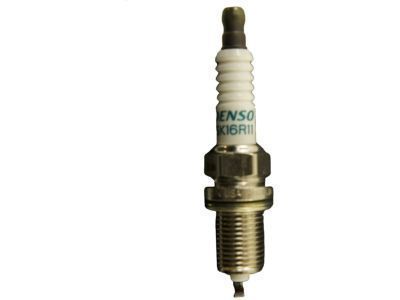

Toyota Matrix Spark Plug
Part Number: 90080-91184
$10.38 MSRP: $14.46
You Save: $4.08 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plug, Spark; High Ignitability; Iridium Long-Life; Double Platinum; Iridium Power; Platinum TT; Iridium TT; Spark Plugs
- Replaces: 90919-01168, 90919-01218, 90919-C1002, 90919-01217, 90080-91185, 90919-01240
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013, 2003-2008 Toyota Matrix | Base, S, XR, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Matrix Spark Plug
Part Number: 90080-91180
$10.86 MSRP: $15.12
You Save: $4.26 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plug, Spark; High Ignitability; Iridium Long-Life; Double Platinum; Iridium Power; Platinum TT; Iridium TT
- Replaces: 90919-01210, 90080-91181, 90919-01178, 90919-T1007, 90919-01237, 90919-01211
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012, 2003-2006 Toyota Matrix | S, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS

Toyota Matrix Spark Plug

Choose genuine Spark Plug that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Spark Plug for your Toyota Matrix? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Matrix parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Also known as the ignition electrode, the Spark Plug found in Toyota Matrix automobiles has the specific task of igniting the fuel/air mixture. However, changes in deposits, foul, erosion or break of the spark plug may be observed over time. The signs of its failure are low fuel economy, difficult start, rough running, often misfires and sluggishness. As a result, one need to visit a qualified mechanic to change the spark plugs if they are worn. Spark plug technology has advanced over the years involving differences in design and material that increase ignitiveness longevity to undergo optimum engine performance.

Toyota Matrix Spark Plug Parts and Q&A

Spark Plug
90080-91180
Q: How to service the spark plugs on Toyota Matrix?
A:
The 2AZ-FE engine service requires the first step to be removing the No. 1 engine cover sub-assembly. To begin the procedure disconnect the four Ignition Coil connectors followed by removing all four bolts together with the four ignition coils. Finally, remove the 4 spark plugs.
Plug, Spark
90919-01275
Q: How to install the spark plugs and ignition coils on Toyota Matrix?
A:
The process of installing spark plugs for a 2AZ-FE engine control starts with tightening each of the 4 spark plugs to 19 Nm (194 kgf-cm, 14 ft-lbf). The 4 Ignition Coils need installation using 4 bolts that require torque of 9.0 Nm (92 kgf-cm, 80 in-lbf). You must install the No. 1 engine cover sub-assembly after connection of all 4 ignition coil connectors.
