OEM Toyota Matrix Crankshaft Seal

  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Crankshaft Seals found

  • Toyota Matrix Crankshaft Seal - 90311-89010

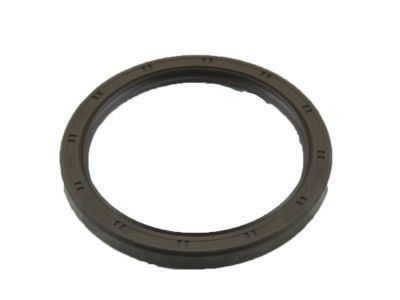

    Toyota Matrix Crankshaft Seal - 90311-89010

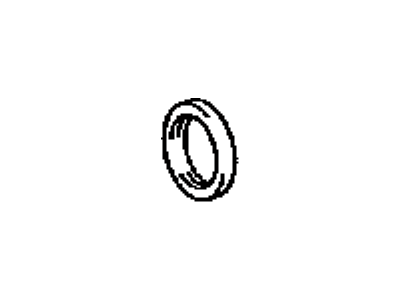

    Toyota Matrix Crankshaft Seal Diagram - 90311-89010
    View related parts

    Toyota Matrix Rear Main Seal

    Part Number: 90311-89010
    $40.26 MSRP: $56.03
    You Save: $15.77 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Crankshaft Pulley Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
    • Manufacturer Note: 2AZ-FE,*195
    • Position: Rear
    • Replaces: 90311-89002, 90311-89001, 90080-31073, 90311-89007, 90311-89003, 90311-89004, 90311-C0001
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2009-2013 Toyota Matrix | S, XRS | 4 Cyl 2.4 L GAS
  • Toyota Matrix Crankshaft Seal - 90311-A0018
    Toyota Matrix Crankshaft Seal - 90311-A0018
    Toyota Matrix Crankshaft Seal Diagram - 90311-A0018
    View related parts

    Toyota Matrix Oil Seal, Front

    Part Number: 90311-A0018
    $11.82 MSRP: $16.45
    You Save: $4.63 (29%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Crank Seal; Front Seal; Front Cover Seal; Seal, Oil(For Timing Chain Or Belt Cover)
    • Position: Front
    • Replaces: 90311-T0024, 90311-38078, 90311-38096, 90311-A0014, 90080-31072, 90311-38080, 90311-38089
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2009-2013 Toyota Matrix | Base, S, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
  • Toyota Matrix Crankshaft Seal - 90311-85010
    Toyota Matrix Crankshaft Seal - 90311-85010
    Toyota Matrix Crankshaft Seal Diagram - 90311-85010
    View related parts

    Toyota Matrix Rear Main Seal

    Part Number: 90311-85010
    $34.76 MSRP: $48.39
    You Save: $13.63 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Engine Crankshaft Seal Kit; Crankshaft Seal Kit; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2003-2006 Toyota Matrix | XRS | 4 Cyl 1.8 L GAS
  • Toyota Matrix Crankshaft Seal - 90311-38098
    Toyota Matrix Crankshaft Seal - 90311-38098
    Toyota Matrix Crankshaft Seal Diagram - 90311-38098
    View related parts

    Toyota Matrix Crankshaft Seal, Front

    Part Number: 90311-38098
    $11.82 MSRP: $16.45
    You Save: $4.63 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
    • Position: Front
    • Replaces: 90311-C0025
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2013 Toyota Matrix | S | 4 Cyl 2.4 L GAS
  • Toyota Matrix Crankshaft Seal - 90080-31049
    Toyota Matrix Crankshaft Seal - 90080-31049
    Toyota Matrix Crankshaft Seal Diagram - 90080-31049
    View related parts

    Toyota Matrix Oil Seal, Front

    Part Number: 90080-31049
    $9.91 MSRP: $13.79
    You Save: $3.88 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Cover Seal; Oil Seal for Timing Chain/Belt.
    • Manufacturer Note: (L)
    • Position: Front
    • Replaces: 90311-38059, 90080-31060
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2003-2008 Toyota Matrix | Base, XR, XRS | 4 Cyl 1.8 L GAS
  • Toyota Matrix Crankshaft Seal - 90311-76003
    Toyota Matrix Crankshaft Seal Diagram - 90311-76003
    View related parts

    Toyota Matrix Rear Main Seal

    Part Number: 90311-76003
    $44.20 MSRP: $61.53
    You Save: $17.33 (29%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Engine Crankshaft Seal; Crankshaft Seal
    • Position: Rear
    • Replaces: 90080-31059, 90311-76001, 90080-31050
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2003-2008 Toyota Matrix | Base, XR | 4 Cyl 1.8 L GAS
  • Toyota Matrix Crankshaft Seal - 90311-A0013
    Toyota Matrix Crankshaft Seal Diagram - 90311-A0013
    View related parts

    Toyota Matrix Rear Main Seal

    Part Number: 90311-A0013
    $49.22 MSRP: $68.51
    You Save: $19.29 (29%)
    Ships in 1 Business Day
    ADD TO CART
    Product Specifications
    • Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
    • Manufacturer Note: (L)
    • Replaces: 90311-76002
    • Warranty: This genuine part is guaranteed by Toyota's factory warranty.
    Fits the following Vehicles:
    • 2009-2013 Toyota Matrix | Base | 4 Cyl 1.8 L GAS

Toyota Matrix Crankshaft Seal

Choose genuine Crankshaft Seal that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Seal for your Toyota Matrix? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Matrix parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Matrix Crankshaft Seal Parts and Q&A

  • Toyota Matrix Crankshaft Seal - 90311-76003 Rear Main Seal Rear Main Seal
    90311-76003
    Q: How to properly install a Crankshaft Seal in both automatic and manual transaxle assemblies on Toyota Matrix?
    A:
    Implementation of the engine rear oil seal demands multi-purpose grease application on the lip of a new oil seal while keeping it foreign-object free. Special Service Tools 09223-15020 09950-70010 and a hammer allow you to tap a new oil seal until its surface becomes even with the rear oil seal retainer edge while maintaining vertical sealing contact and afterward clean off excessive grease from the crankshaft. During drive plate and ring gear sub-assembly installation (for automatic transaxle) use the Special Service Tools 09960-10010 09962-01000 09963-01000 to hold the crankshaft along with thorough elimination of any debris from bolts and bolt holes followed by Toyota Genuine Adhesive 1324 or Three Bond 1324 application to 2 or 3 bolt threads before broad distribution and torque tightening of 88 Nm (897 kgf-cm, 65 ft-lbf) to the specified sequence. The installation process for flywheel sub-assembly on a manual transaxle includes holding the crankshaft with special service tools while cleaning bolts and applying adhesive followed by even bolt torques to 49 Nm (500 kgf-cm, 36 ft-lbf). After marking the bolts paint it is necessary to retighten them at 90 degrees in sequence to maintain 90 degrees paint angle from first positioning. Food service tool 09301-00210 enables proper installation of Clutch Disc assembly before the clutch cover assembly while manual transaxle and automatic transaxle get added last.
  • Toyota Matrix Crankshaft Seal - 90080-31049 Oil Seal, Front Oil Seal, Front
    90080-31049
    Q: How to remove a crankshaft seal on Toyota Matrix?
    A:
    The first step when changing the crankshaft main bearing seal requires the manual transaxle assembly removal for vehicles with manual trasmission or the automatic transaxle assembly removal for vehicles equipped with automatic transmission. The clutch cover assembly must be removed first before proceeding to take out the Clutch Disc assembly in manual transaxle vehicles. Special Service Tools 09960-10010, 09962-01000, and 09963-01000 must be used for manual transaxle vehicles to hold the crankshaft before removing the 8 bolts and flywheel sub-assembly. Special Service Tools 09960-10010, 09962-01000, and 09963-01000 can be used to hold the crankshaft followed by removal of 8 bolts and the drive plate & ring gear sub-assembly of automatic transaxle vehicles. To eliminate the engine rear oil seal you need to utilize a knife to trim its lip before extracting it by using a screwdriver that has tape wrapped around its tip. Visible damage to the crankshaft should be inspected. Smooth any present damage by applying 400-grit sandpaper.
