How to remove the brake proportioning valve assembly on Toyota Matrix?

To detach the brake proportioning valve assembly, utilize Special Service Tool 09023-00101 to disconnect the five brake tubes from the assembly. Afterward, remove the two bolts that secure the proportioning valve assembly to the body.

How to replace the brake proportioning valve assembly on Toyota Matrix?

In order to replace the brake proportioning valve assembly, unscrew the 5 brake tubes and remove the 2 securing bolts. Install the new assembly using two bolts at 5.4 Nm torque, reconnect the tubes at 15.2 Nm, fill the reservoir with brake fluid and bleed the system. Then verify the fluid level.

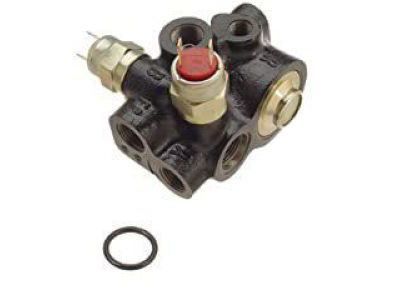

OEM Toyota Matrix Brake Proportioning Valve

Proportioning Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Brake Proportioning Valves found

View related parts

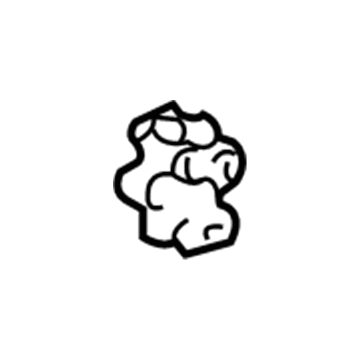

Toyota Matrix Proportioner Valve
Part Number: 47150-16050
$317.80 MSRP: $453.75
You Save: $135.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Proportioning; Pressure Metering Valve; Valve
- Manufacturer Note: W(14 INCHES DISC WHEEL)
- Replaces: 47150-02020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | Base, XR, XRS | 4 Cyl 1.8 L GAS
View related parts
Toyota Matrix Regulator Valve
Part Number: 47150-01030
Product Specifications
- Other Name: Valve Assembly, Proportioning; Brake Proportioning Valve; Pressure Metering Valve; Valve
- Manufacturer Note: *86
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2004 Toyota Matrix | Base, XR, XRS | 4 Cyl 1.8 L GAS

Toyota Matrix Brake Proportioning Valve

If you're thinking about purchasing OEM parts for your Toyota Matrix, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Matrix Brake Proportioning Valve at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Matrix Brake Proportioning Valve Parts and Q&A

Proportioner Valve
47150-16050
Q: How to remove the brake proportioning valve assembly on Toyota Matrix?
A: To detach the brake proportioning valve assembly, utilize Special Service Tool 09023-00101 to disconnect the five brake tubes from the assembly. Afterward, remove the two bolts that secure the proportioning valve assembly to the body.
Regulator Valve
47150-01030
Q: How to replace the brake proportioning valve assembly on Toyota Matrix?
A: In order to replace the brake proportioning valve assembly, unscrew the 5 brake tubes and remove the 2 securing bolts. Install the new assembly using two bolts at 5.4 Nm torque, reconnect the tubes at 15.2 Nm, fill the reservoir with brake fluid and bleed the system. Then verify the fluid level.
