How to Remove the Blend Door Actuator on Toyota Highlander?

A technician should begin replacing the Air Inlet Control Servo Motor by first recovering refrigerant from the system and steering the vehicle with its front wheels facing forward. First detach the front left wheel then wait for 90 seconds with no power at the negative battery terminal to stop Air Bags before cable removal. Begin by taking out the blades, front wiper arms from both sides and then proceed to separate the windshield wiper motor with links and the cowl top outer panel sub-assembly and ventilator louver sub-assembly. Detach the outlet and inlet connections of the heater water hose along with the cooler refrigerant liquid pipe A and the No. 1 cooler refrigerant suction pipe. Both the lower No. 3 and No. 2 steering wheel covers and steering wheel assembly need extraction along with steering pad, steering column cover, turn signal switch assembly with spiral cable sub-assembly, instrument cluster finish panel assembly, combination meter assembly, center instrument panel register assembly and center instrument cluster finish panel assembly (for both with and without Smart Key System). The service technician should detach the heater control and accessory assembly (for both manual and automatic air conditioning systems) in addition to the radio receiver assembly with bracket (for without navigation system) and navigation receiver assembly with bracket (for with navigation system) and front door scuff plates along with cowl side trim sub-assemblies and lower instrument panel finish panel sub-assemblies and lower instrument panel sub-assembly. The technicians will detach the upper console panel sub-assembly, console box duct (for without rear air conditioning system), lower rear console box, console box assembly (for both with and without rear air conditioning system), front console box inserts, engine switch (for with Smart Key System), front door opening trim Weather Strips, front pillar garnishes, instrument panel speaker panel sub-assemblies, and front speaker assemblies (for both left and right sides). The instrument panel wire assembly needs to be disconnected for removing the instrument panel safety pad assemblies (for both pole and glass antenna types) and the brake pedal return spring and stop light switch assembly and brake master cylinder push rod clevis. Also separate the brake pedal support sub-assembly. The technician should first detach the driver side knee Air Bag assembly and the No. 1 air duct sub-assembly and after that separate the steering intermediate shaft sub-assembly and finally remove the steering column assembly. The service continues by disconnecting the instrument panel junction block assembly and removing the power steering ECU assembly along with certification ECU (for with Smart Key System), air conditioning amplifier assembly, rear No. 1 and No. 3 air ducts, No. 1 console box duct (for without rear air conditioning system) and center heater to register duct followed by removal of the No. 1 and No. 2 instrument panel brace sub-assemblies as well as instrument panel reinforcement assembly with air conditioning unit (for both with and without PTC heater). Complete your task by unfastening the 3 screws which will detach the air conditioning unit along with the blower assembly along with the air inlet servo motor sub-assembly.

How to Install a Blend Door Actuator on Toyota Highlander?

Begin the rear air outlet control servo motor sub-assembly installation by fixing the component with two screws using the reference point while connecting the appropriate connector. Next, install the rear cooling unit assembly, rear No. 5 air duct, No. 1 cooler air duct, cooler plate, roof side inner garnish assembly RH, deck trim side panel assembly RH, front deck side trim cover RH, No. 1 luggage compartment trim hook, rope hook assembly (for RH side), rear combination light service cover RH, side trim cover RH (for manual air conditioning system), rear room temperature sensor (for automatic air conditioning system), deck side trim RH, deck side trim cover RH, rear seat side garnish cap, rear floor finish plate, rear No. 2 seat assembly, connect rear seat lap type belt assembly LH, connect rear seat lap type belt assembly RH, install rear No. 2 seat inner belt assembly, install rear mat, install deck floor board assembly, install deck side trim box LH, install rear seat side cover LH, install deck side trim box RH, install jack carrier assembly, install jack assembly, install jack carrier cushion, install jack carrier support, install rear seat side cover RH, install tonneau cover assembly (w/ tonneau cover), install No. 2 deck board sub-assembly, install No. 3 deck board sub-assembly, install deck board assembly, install rear door opening trim Weather Strip RH, install rear door scuff plate RH, connect cooler refrigerant liquid pipe C, connect cooler refrigerant suction hose, connect rear heater inlet water hose, connect rear heater outlet water hose, charge with refrigerant, add engine coolant (for 1AR-FE), add engine coolant (for 2GR-FE), inspect for coolant leak (for 1AR-FE), inspect for coolant leak (for 2GR-FE), warm up engine, and inspect for refrigerant leak.

OEM Toyota Highlander Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

24 Blend Door Actuators found

View related parts

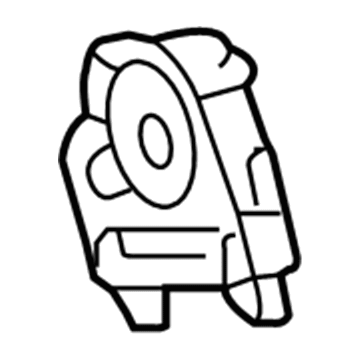

Toyota Highlander Door Actuator
Part Number: 87106-0E010
$235.20 MSRP: $335.81
You Save: $100.61 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Floor Mode Door Actuator; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Servo
- Replaces: 87106-48070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts

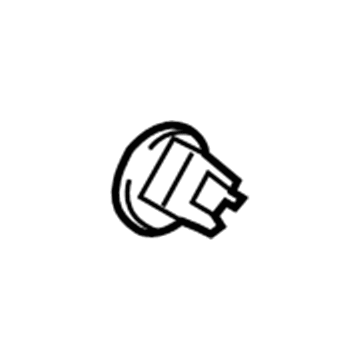

Toyota Highlander Motor
Part Number: 87106-07081
$159.08 MSRP: $225.20
You Save: $66.12 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Servo; Servo Sub-Assembly, Damper(For Airmix)
- Manufacturer Note: NO.2
- Replaces: 87106-07080, 87106-41040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts

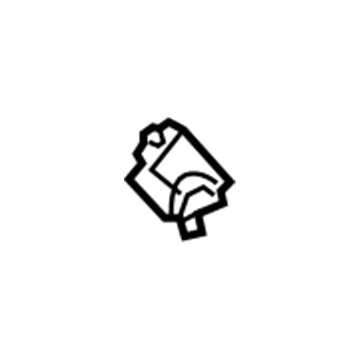

Toyota Highlander Damper Servo Sub-Assembly, Air Conditioner Radiator
Part Number: 87106-0E110
$255.24 MSRP: $364.43
You Save: $109.19 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Heater Blend Door Actuator
- Manufacturer Note: AUDIO-6PEAKER & 8INCH DISPLAY & XM
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

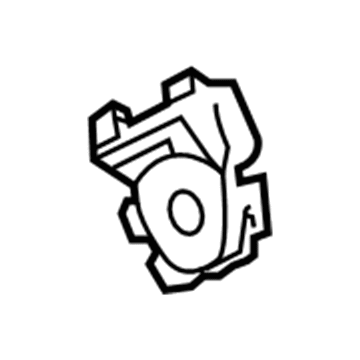

Toyota Highlander Servo, Passenger Side
Part Number: 87106-0E140
$261.06 MSRP: $372.74
You Save: $111.68 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet, Front; Blend, Right; Defrost Mode; Heater Blend Actuator; Damper Servo Sub-Assembly, Air Conditioner Radiator
- Position: Passenger Side
- Replaces: 87106-07110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2019 Toyota Highlander | Base, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

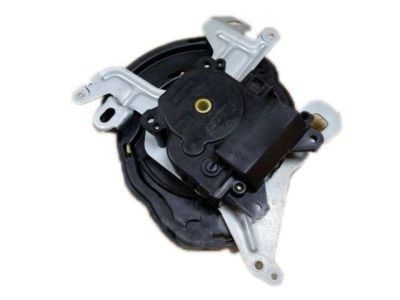

Toyota Highlander Servo Sub-Assembly, Damper(For Mode)
Part Number: 87106-06250
$291.24 MSRP: $415.83
You Save: $124.59 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Heater Blend Door Actuator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota Highlander | Base, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo Sub-Assembly, Damper(For Recirculation & Fresh), Front
Part Number: 87106-07140
$148.04 MSRP: $209.57
You Save: $61.53 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; Recirculation; Blower; HVAC Heater Blend Door Actuator
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2019 Toyota Highlander | Base, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Actuator, Driver Side
Part Number: 87106-07120
$148.04 MSRP: $209.57
You Save: $61.53 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet/Blend Door Actuator, Front/Left; Servo; Damper Servo Sub-Assembly, Air Conditioner Radiator; Servo Sub-Assembly, Damper(For Airmix)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2016 Toyota Highlander | Base, Hybrid Limited, LE, LE Plus, Limited, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo Sub-Assembly, Damper(For Recirculation)
Part Number: 87106-33270
$131.47 MSRP: $186.11
You Save: $54.64 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Heater Blend Door Actuator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Door Actuator
Part Number: 87106-0E040
$182.31 MSRP: $260.29
You Save: $77.98 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet Door Actuator; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Servo
- Replaces: 87106-48100, 87106-48160
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Door Actuator
Part Number: 87106-0E160
$119.60 MSRP: $169.32
You Save: $49.72 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Defrost Mode Door Actuator, Rear; HVAC Blend Door Actuator; Temperature Door Actuator; Servo; Rear Cooling Unit Damper Servo Sub-Assembly.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid Platinum, Hybrid XLE, L, LE, LE Plus, Limited, Limited Platinum, Platinum, SE, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Door Actuator, Passenger Side
Part Number: 87106-06420
$148.63 MSRP: $210.39
You Save: $61.76 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet Door Actuator, Front Right, Right; HVAC Heater Blend Door Actuator; Temperature Door Actuator; Actuator; Servo; Damper Servo Sub-Assembly, Air Conditioner Radiator
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Door Actuator
Part Number: 87106-53020
$163.68 MSRP: $231.71
You Save: $68.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Adjustment Control Motor; HVAC Heater Blend Door Actuator; Servo; Servo Sub-Assembly, Damper(For Recirculation)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Damper Servo Sub-Assembly, Air Conditioner Radiator
Part Number: 87106-0E100
$166.02 MSRP: $235.01
You Save: $68.99 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Heater Blend Door Actuator
- Position: Passenger Side
- Replaces: 87106-48170
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Highlander | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, L, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Servo, Front
Part Number: 87106-33250
$311.28 MSRP: $444.43
You Save: $133.15 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet, Defrost Mode, Heater Blend Door Actuators; Servo Sub-Assembly, Damper(For Mode)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo Sub-Assembly, Damper(For Mode), Front
Part Number: 87106-33290
$292.75 MSRP: $417.98
You Save: $125.23 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Heater Blend Door Actuator
- Manufacturer Note: FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2010 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo, Rear
Part Number: 87106-28170
$131.47 MSRP: $186.11
You Save: $54.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Air Inlet Door Actuator, Rear; HVAC Heater Blend Door Actuator; Servo Sub-Assembly, Damper(For Airmix Rear)
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Actuator, Front
Part Number: 87106-33260
$131.47 MSRP: $186.11
You Save: $54.64 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Blend Door Actuator, Front; HVAC Heater Blend Door Actuator; Servo; Servo Sub-Assembly, Damper(For Airmix)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo Sub-Assembly, Damper(For Mode Rear)
Part Number: 87106-28180
$131.47 MSRP: $186.11
You Save: $54.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; Servo Sub-Assembly, Damper(For Airmix); HVAC Heater Blend Door Actuator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo
Part Number: 87106-0C120
$131.47 MSRP: $186.11
You Save: $54.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Floor Mode, Air Inlet, Blend Door Actuators, Rear; Heater Blend Door Actuator; Damper Servo Sub-Assembly, Rear Cooling Unit; Airmix and Mode Rear options available.
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2015 Toyota Highlander | Base, Hybrid Limited, LE, LE Plus, Limited, Plus, SE, Sport, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Servo
Part Number: 87106-48040
Product Specifications
- Other Name: Servo Sub-Assembly, Damper; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Servo Sub-Assembly, Damper(For Mode)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS

| Page 1 of 2 |Next >

1-20 of 24 Results

Toyota Highlander Blend Door Actuator

Choose genuine Blend Door Actuator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Blend Door Actuator for your Toyota Highlander? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Highlander parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Inside the Toyota Highlander vehicles the blend door actuator functions as a vital HVAC component while maintaining its reputation for reliability along with excellent performance. The electric motor precisely controls ventilation through different air channels which adjust hot and cold air mix for ideal cabin temperature regulation. The Toyota Highlander Blend Door Actuator avoids unnecessary passage of heated air to cabin space which results in enhanced comfort alongside improved vehicle efficiency. The actuator works with different Highlander vehicle models that offer both five-seat and seven-seat configurations to preserve the vehicle safety features and overall operational effectiveness. The Toyota Highlander offers different trim levels of products where each version receives a Blend Door Actuator specific for precise operational needs. The Toyota Highlander Blend Door Actuator sets itself apart from its market peers through exceptional engineering combined with long-lasting components which decrease operational failures that would result in air temperature or airflow control problems. The Toyota car Blend Door Actuator has gained excellent industry recognition because it improves driving experiences while boosting the vehicle's performance and fuel efficiency thus becoming crucial for the automaker model drivers.

Toyota Highlander Blend Door Actuator Parts and Q&A

Actuator, Front
87106-33260
Q: How to Remove the Blend Door Actuator on Toyota Highlander?
A:
A technician should begin replacing the Air Inlet Control Servo Motor by first recovering refrigerant from the system and steering the vehicle with its front wheels facing forward. First detach the front left wheel then wait for 90 seconds with no power at the negative battery terminal to stop Air Bags before cable removal. Begin by taking out the blades, front wiper arms from both sides and then proceed to separate the windshield Wiper Motor with links and the cowl top outer panel sub-assembly and ventilator louver sub-assembly. Detach the outlet and inlet connections of the heater water hose along with the cooler refrigerant liquid pipe A and the No. 1 cooler refrigerant suction pipe. Both the lower No. 3 and No. 2 Steering Wheel covers and steering wheel assembly need extraction along with steering pad, steering column cover, turn signal switch assembly with spiral cable sub-assembly, instrument cluster finish panel assembly, combination meter assembly, center instrument panel register assembly and center instrument cluster finish panel assembly (for both with and without Smart Key System). The service technician should detach the heater control and accessory assembly (for both manual and automatic air conditioning systems) in addition to the radio receiver assembly with bracket (for without navigation system) and navigation receiver assembly with bracket (for with navigation system) and front door scuff plates along with cowl side trim sub-assemblies and lower instrument panel finish panel sub-assemblies and lower instrument panel sub-assembly. The technicians will detach the upper console panel sub-assembly, console box duct (for without rear air conditioning system), lower rear console box, console box assembly (for both with and without rear air conditioning system), front console box inserts, engine switch (for with Smart Key System), front door opening trim Weather Strips, front pillar garnishes, instrument panel speaker panel sub-assemblies, and front speaker assemblies (for both left and right sides). The instrument panel wire assembly needs to be disconnected for removing the instrument panel safety pad assemblies (for both pole and glass antenna types) and the brake pedal return spring and stop light switch assembly and brake master cylinder push rod clevis. Also separate the brake pedal support sub-assembly. The technician should first detach the driver side knee Air Bag assembly and the No. 1 air duct sub-assembly and after that separate the steering intermediate shaft sub-assembly and finally remove the steering column assembly. The service continues by disconnecting the instrument panel junction block assembly and removing the power steering ECU assembly along with certification ECU (for with Smart Key System), air conditioning amplifier assembly, rear No. 1 and No. 3 air ducts, No. 1 console box duct (for without rear air conditioning system) and center heater to register duct followed by removal of the No. 1 and No. 2 instrument panel brace sub-assemblies as well as instrument panel reinforcement assembly with air conditioning unit (for both with and without PTC heater). Complete your task by unfastening the 3 screws which will detach the air conditioning unit along with the blower assembly along with the air inlet servo motor sub-assembly.
Servo Sub-Assembly, Damper(For Recirculation)
87106-33270
Q: How to Install a Blend Door Actuator on Toyota Highlander?
A:
Begin the rear air outlet control servo motor sub-assembly installation by fixing the component with two screws using the reference point while connecting the appropriate connector. Next, install the rear cooling unit assembly, rear No. 5 air duct, No. 1 cooler air duct, cooler plate, roof side inner garnish assembly RH, deck trim side panel assembly RH, front deck side trim cover RH, No. 1 luggage compartment trim hook, rope hook assembly (for RH side), rear combination light service cover RH, side trim cover RH (for manual air conditioning system), rear room temperature sensor (for automatic air conditioning system), deck side trim RH, deck side trim cover RH, rear seat side garnish cap, rear floor finish plate, rear No. 2 seat assembly, connect rear seat lap type belt assembly LH, connect rear seat lap type belt assembly RH, install rear No. 2 seat inner belt assembly, install rear mat, install deck floor board assembly, install deck side trim box LH, install rear seat side cover LH, install deck side trim box RH, install jack carrier assembly, install jack assembly, install jack carrier cushion, install jack carrier support, install rear seat side cover RH, install tonneau cover assembly (w/ tonneau cover), install No. 2 deck board sub-assembly, install No. 3 deck board sub-assembly, install deck board assembly, install rear door opening trim Weather Strip RH, install rear door scuff plate RH, connect cooler refrigerant liquid pipe C, connect cooler refrigerant suction hose, connect rear heater inlet water hose, connect rear heater outlet water hose, charge with refrigerant, add engine coolant (for 1AR-FE), add engine coolant (for 2GR-FE), inspect for coolant leak (for 1AR-FE), inspect for coolant leak (for 2GR-FE), warm up engine, and inspect for refrigerant leak.

Related Toyota Highlander Parts

Browse Toyota Highlander Blend Door Actuator by Years

2023 2022 2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001
