How to service and repair the Brake Master Cylinder on Toyota Echo?

The first task to service or repair the Brake Master Cylinder involves unconnecting the level warning switch connector and extracting fluid through a syringe while avoiding contact between brake fluid and painted surfaces. Service of the M/T models begins by disconnecting the clutch hose from the reservoir before using Special Service Tool: 09023-00100 to detach the 2 or 3 brake lines from the master cylinder using a torque of 15 Nm (155 kgf-cm, 11 ft. lbs.). Begin by unfastening the master cylinder through the process of removing the 2 mounting nuts followed by pulling out the master cylinder together with the gasket while using a torque of 13 Nm (130 kgf-cm, 9 ft. lbs.). First uninstall the strainer and cap from the reservoir, remove both grommets and the reservoir and eventually extract the stopper from the reservoir. When installing the system, follow the reverse order of removal then adjust the brake booster push rod length followed by brake fluid addition to the reservoir then perform brake system bleeding and verify for leaks and finally inspect the brake pedal.

OEM Toyota Echo Brake Master Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Brake Master Cylinders found

View related parts

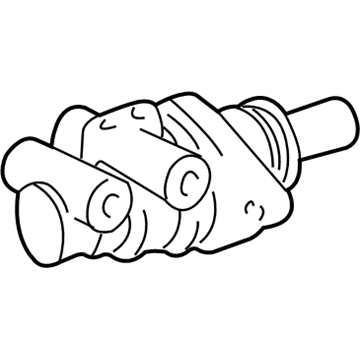

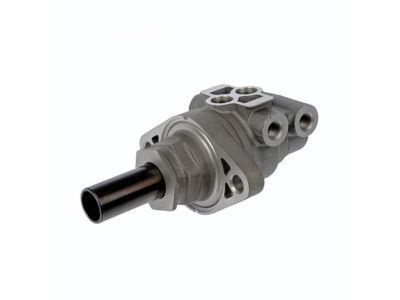

Toyota Echo Master Cylinder
Part Number: 47207-52021
$222.39 MSRP: $317.52
You Save: $95.13 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Sub-Assembly, Brake Stroke Simulator; Brake Master Cylinder; Brake Reservoir; Cylinder Sub-Assembly, Brake Master Less Reservoir Tank
- Manufacturer Note: W/O(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Master Cylinder
Part Number: 47207-52011
$176.12 MSRP: $249.32
You Save: $73.20 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Sub-Assembly, Brake Stroke Simulator; Brake Master Cylinder; Brake Reservoir; Cylinder Sub-Assembly, Brake Master Less Reservoir Tank
- Manufacturer Note: W(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Master Cylinder
Part Number: 47207-52022
$287.39 MSRP: $410.33
You Save: $122.94 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Sub-Assembly, Brake Stroke Simulator; Brake Master Cylinder; Brake Reservoir; Cylinder Sub-Assembly, Brake Master Less Reservoir Tank
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Master Cylinder
Part Number: 47207-52012
$222.39 MSRP: $317.52
You Save: $95.13 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Sub-Assembly, Brake Stroke Simulator; Brake Master Cylinder; Brake Reservoir; Cylinder Sub-Assembly, Brake Master Less Reservoir Tank
- Manufacturer Note: W(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS

Toyota Echo Brake Master Cylinder

Choose genuine Brake Master Cylinder that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Brake Master Cylinder for your Toyota Echo? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Echo parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Echo Brake Master Cylinder Parts and Q&A

Master Cylinder
47207-52021
Q: How to service and repair the Brake Master Cylinder on Toyota Echo?
A:
The first task to service or repair the Brake Master Cylinder involves unconnecting the level warning switch connector and extracting fluid through a syringe while avoiding contact between brake fluid and painted surfaces. Service of the M/T models begins by disconnecting the clutch hose from the reservoir before using Special Service Tool: 09023-00100 to detach the 2 or 3 Brake Lines from the master cylinder using a torque of 15 Nm (155 kgf-cm, 11 ft. lbs.). Begin by unfastening the master cylinder through the process of removing the 2 mounting nuts followed by pulling out the master cylinder together with the gasket while using a torque of 13 Nm (130 kgf-cm, 9 ft. lbs.). First uninstall the strainer and cap from the reservoir, remove both grommets and the reservoir and eventually extract the stopper from the reservoir. When installing the system, follow the reverse order of removal then adjust the brake booster push rod length followed by brake fluid addition to the reservoir then perform brake system bleeding and verify for leaks and finally inspect the brake pedal.
