How to properly install a Crankshaft Seal for both manual and automatic transaxles on Toyota Corolla?

Engine installation of the rear oil seal requires multi-purpose grease application to the new oil seal lip while keeping it free from any foreign matter. Install the new oil seal into position using Special Service Tool 09223-15020 09950-70010 along with a hammer until the seal surface reaches the same level as the rear oil seal retainer edge by aiming the tapping motion vertically. Finish by wiping off all excess grease from the crankshaft. Holding the crankshaft with Special Service Tool: 09960-10010 09962-01000 09963-01000 install the drive plate and ring gear sub-assembly by cleaning the 8 bolts and bolt holes then applying aftermarket adhesive Toyota Genuine Adhesive 1324. Three Bond 1324 or equivalent to 2 or 3 threads of the 8 bolts followed by universal bolt installation to a torque of 88 Nm (897 kgf-cm, 65 ft-lbf). Installation of the manual transaxle's flywheel sub-assembly requires holding the crankshaft with identical special service tools while cleaning bolts and applying adhesive before tightening the eight bolts to 49 Nm (500 kgf-cm, 36 ft-lbf) with paint marks to indicate 90 degrees alignment from the original position in the specified tightening sequence. Use Special Service Tool: 09301-00210 to install the clutch disc assembly and then install the clutch cover assembly before placing both the manual transaxle assembly for the manual transaxle and the automatic transaxle assembly for the automatic transaxle.

How to remove a crankshaft seal on Toyota Corolla?

The procedure for crankshaft main bearing seal removal requires first disassembling the manual transaxle assembly in manual transaxle vehicles and the automatic transaxle assembly in automatic transaxle vehicles. The first step for manual transaxle vehicles demands removing the clutch cover assembly followed by the clutch disc assembly. The crankshaft treatment requires Special Service Tool: 09960-10010 09962-01000 09963-01000 to support the crankshaft before the removal of 8 bolts and flywheel. For automatic transaxle vehicles use Special Service Tool: 09960-10010 09962-01000 09963-01000 to retain the crankshaft before unlatching the 8 bolts and drive plate & ring gear. The engine rear oil seal removal process requires first cutting the oil seal lip with a knife followed by using a tape-wrapped screwdriver to pry out the oil seal from its position. Inspection of the crankshaft for signs of damage should be followed by using 400-grit sandpaper to smooth the surface only if damage is present.

OEM Toyota Corolla Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Crankshaft Seals found

View related parts

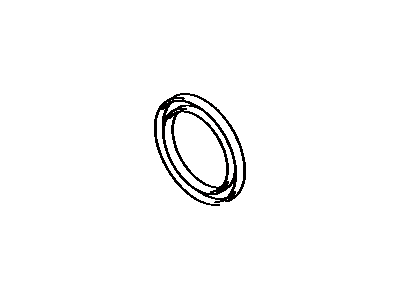

Toyota Corolla Oil Seal
Part Number: 90311-35040
$12.77 MSRP: $17.79
You Save: $5.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Camshaft; Timing Cover; Multi-Purpose; Crankshaft; Camshaft; Front Crank Seal; Seal; Seal(For Crankshaft)
- Replaces: 90080-31066, 90311-35013, 90311-35008, 90311-35022, 90311-35003, 90311-35025, 90080-31013
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1997 Toyota Corolla | Base, CE, DLX, DLX All Trac, DX, FX, FX16, FX16 GTS, GTS, LE, Sport DLX, Sport GTS, Sport SR5, SR5, SR5 All Trac | 4 Cyl 1.6 L GAS, 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Oil Seal, Front
Part Number: 90080-31022
$11.46 MSRP: $15.95
You Save: $4.49 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Front Crank Seal; Case Seal; Front Cover Seal; Damper & Pulley Oil Seal; Seal; Seal(For Crankshaft); Crankshaft Seal
- Manufacturer Note: (L)
- Position: Front
- Replaces: 90311-42015, 90311-42026, 90311-42001, 90311-42003
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Corolla | DLX | 4 Cyl 1.8 L DIESEL
View related parts
Toyota Corolla Oil Seal, Front
Part Number: 90311-A0018
$11.82 MSRP: $16.45
You Save: $4.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Crank Seal; Front Seal; Front Cover Seal; Seal, Oil(For Timing Chain Or Belt Cover)
- Position: Front
- Replaces: 90311-T0024, 90311-38078, 90311-38096, 90311-A0014, 90080-31072, 90311-38080, 90311-38089
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2023 Toyota Corolla | 50th Anniversary Special Edition, Base, Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-89010
$40.26 MSRP: $56.03
You Save: $15.77 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Crankshaft Pulley Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Manufacturer Note: 2AZ-FE,*195
- Position: Rear
- Replaces: 90311-89002, 90311-89001, 90080-31073, 90311-89007, 90311-89003, 90311-89004, 90311-C0001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2010 Toyota Corolla | XRS | 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-85010
$34.76 MSRP: $48.39
You Save: $13.63 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Engine Crankshaft Seal Kit; Crankshaft Seal Kit; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2006 Toyota Corolla | XRS | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-70007
$38.95 MSRP: $54.21
You Save: $15.26 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal; Crankshaft Seal; Seal, Engine Rear Oil
- Manufacturer Note: (J)
- Replaces: 90311-70001, 90311-70003, 90080-31039, 90311-70075, 90311-70004, 90311-70105, 90311-70120
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1997 Toyota Corolla | Base, CE, DLX, DLX All Trac, DX, FX, FX16, FX16 GTS, GTS, LE, Sport DLX, Sport GTS, Sport SR5, SR5, SR5 All Trac | 4 Cyl 1.6 L GAS, 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Oil Seal, Front
Part Number: 90080-31049
$9.91 MSRP: $13.79
You Save: $3.88 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Cover Seal; Oil Seal for Timing Chain/Belt.
- Manufacturer Note: (L)
- Position: Front
- Replaces: 90311-38059, 90080-31060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2010 Toyota Corolla | Base, CE, LE, S, VE, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-A0013
$49.22 MSRP: $68.51
You Save: $19.29 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Manufacturer Note: (L)
- Replaces: 90311-76002
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Corolla | Base, L, LE, S, XLE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-90008
$31.30 MSRP: $43.57
You Save: $12.27 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal; Multi-Purpose Seal; Crankshaft Seal; Oil Seal
- Replaces: 90311-90005, 90311-90003, 90311-90002
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Corolla | DLX | 4 Cyl 1.8 L DIESEL
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-76003
$44.20 MSRP: $61.53
You Save: $17.33 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90080-31059, 90311-76001, 90080-31050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2008 Toyota Corolla | CE, LE, S, VE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-A0035
$40.26 MSRP: $56.03
You Save: $15.77 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Rear Seal; Seal, Engine Rear Oil; Crankshaft Seal
- Position: Rear
- Replaces: 90311-90010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota Corolla | LE, SE, SE Apex, SE Nightshade, XSE, XSE Apex | 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla Crankshaft Seal, Front
Part Number: 90311-A0033
$13.61 MSRP: $18.95
You Save: $5.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Timing Cover Seal; Front Crank Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Position: Front
- Replaces: 90311-40044
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2024 Toyota Corolla | LE, Nightshade, SE, SE Apex, SE Nightshade, XSE, XSE Apex | 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-A0017
$58.54 MSRP: $81.49
You Save: $22.95 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Rear Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90311-78002
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2022 Toyota Corolla | 50th Anniversary Special Edition, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XSE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Rear Main Seal
Part Number: 90311-78008
$44.44 MSRP: $61.85
You Save: $17.41 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Rear Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Manufacturer Note: *119
- Position: Rear
- Replaces: 90311-76004
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Corolla | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS

Toyota Corolla Crankshaft Seal

Choose genuine Crankshaft Seal that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Seal for your Toyota Corolla? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Corolla parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Corolla Crankshaft Seal Parts and Q&A

Oil Seal, Front
90080-31049
Q: How to properly install a Crankshaft Seal for both manual and automatic transaxles on Toyota Corolla?
A:
Engine installation of the rear oil seal requires multi-purpose grease application to the new oil seal lip while keeping it free from any foreign matter. Install the new oil seal into position using Special Service Tool 09223-15020 09950-70010 along with a hammer until the seal surface reaches the same level as the rear oil seal retainer edge by aiming the tapping motion vertically. Finish by wiping off all excess grease from the crankshaft. Holding the crankshaft with Special Service Tool: 09960-10010 09962-01000 09963-01000 install the drive plate and ring gear sub-assembly by cleaning the 8 bolts and bolt holes then applying aftermarket adhesive Toyota Genuine Adhesive 1324. Three Bond 1324 or equivalent to 2 or 3 threads of the 8 bolts followed by universal bolt installation to a torque of 88 Nm (897 kgf-cm, 65 ft-lbf). Installation of the manual transaxle's flywheel sub-assembly requires holding the crankshaft with identical special service tools while cleaning bolts and applying adhesive before tightening the eight bolts to 49 Nm (500 kgf-cm, 36 ft-lbf) with paint marks to indicate 90 degrees alignment from the original position in the specified tightening sequence. Use Special Service Tool: 09301-00210 to install the Clutch Disc assembly and then install the clutch cover assembly before placing both the manual transaxle assembly for the manual transaxle and the automatic transaxle assembly for the automatic transaxle.
Rear Main Seal
90311-76003
Q: How to remove a crankshaft seal on Toyota Corolla?
A:
The procedure for crankshaft main bearing seal removal requires first disassembling the manual transaxle assembly in manual transaxle vehicles and the automatic transaxle assembly in automatic transaxle vehicles. The first step for manual transaxle vehicles demands removing the clutch cover assembly followed by the Clutch Disc assembly. The crankshaft treatment requires Special Service Tool: 09960-10010 09962-01000 09963-01000 to support the crankshaft before the removal of 8 bolts and flywheel. For automatic transaxle vehicles use Special Service Tool: 09960-10010 09962-01000 09963-01000 to retain the crankshaft before unlatching the 8 bolts and drive plate & ring gear. The engine rear oil seal removal process requires first cutting the oil seal lip with a knife followed by using a tape-wrapped screwdriver to pry out the oil seal from its position. Inspection of the crankshaft for signs of damage should be followed by using 400-grit sandpaper to smooth the surface only if damage is present.
