How to remove the Vacuum Brake Booster on Toyota Corolla?

The Vacuum Brake Booster removal process starts with draining brake fluid while immediately cleaning painted surfaces touched by fluid. Start by removing the air cleaner cap sub-assembly followed by the air cleaner case sub-assembly after extracting the air cleaner element as well as the 3 bolts. Now separate the brake master cylinder sub-assembly alone then detach the brake master cylinder push rod clevis. Discontinue the process of removal by removing the front wheel on the left-hand side. The essential tool for disconnecting the front brake tube No. 5 is Special Service Tool: 09023-00101 which also allows you to slide the clip out from the vacuum hose connected to the brake booster assembly. Untangle and relocate both brake tubes that are attached by the clamp. First take off four nuts and clevis connecting the push rod before pulling out the brake booster assembly off the car. To finish disconnect the brake booster gasket and check valve assembly with grommet from the brake booster assembly.

How to install the vacuum brake booster on Toyota Corolla?

The first step to install the vacuum brake booster starts with partially tightening the brake master cylinder push rod clevis by attaching the lock nut to the brake booster assembly and clevis before the brake pedal height adjustment and tight full lock nut afterwards. After placing the new brake booster gasket onto the brake booster assembly it should be connected to the body using four nuts tightened to 13 Nm (132 kgf-cm, 10 ft-lbf). During this process the brake and fuel lines must not be damaged and the clamps should be engaged to secure the brake lines. The installation requires a 10 mm union nut wrench to secure the No. 5 front brake tube where the body grommet must be engaged for a torque of 15 Nm (155 kgf-cm, 11 ft-lbf) without the wrench or 14 Nm (143 kgf-cm, 10 ft-lbf) with the wrench while keeping the torque wrench at 250 mm (9.84 in.) and parallel to the union nut wrench. New check valve grommets must first be installed on the brake booster assembly before the vacuum check valve assembly. First slide the clip after connecting the vacuum hose and then attach the brake master cylinder push rod clevis followed by installing the brake pedal return spring and the front wheel LH with a torque of 103 Nm (1050 kgf-cm, 76 ft-lbf). After installing the brake master cylinder sub-assembly the technician must connect the clutch tube for manual transaxle and fill the reservoir with brake fluid and perform a bleeding process on the clutch line and brake master cylinder and brake line and brake actuator (w/ VSC). Check for brake fluid leakage before inspecting the fluid reserve and the height of the brake pedal and its free movement and total extension distance. Finally, install the suspension tower damper assembly (w/ Front Strut Bar), outer cowl top panel (for TMC Made and except TMC Made), windshield wiper motor and link assembly, cowl top ventilator louver LH, center No. 1 cowl top ventilator louver, hood to cowl top seal, front wiper arm and blade assembly RH and LH, front wiper arm head cap, air cleaner case (for 2ZR-FE and 2AZ-FE), air cleaner cap sub-assembly (for 2ZR-FE and 2AZ-FE), and No. 2 cylinder head cover (for 2ZR-FE) and No. 1 engine cover sub-assembly (for 2AZ-FE).

OEM Toyota Corolla Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

24 Brake Boosters found

View related parts

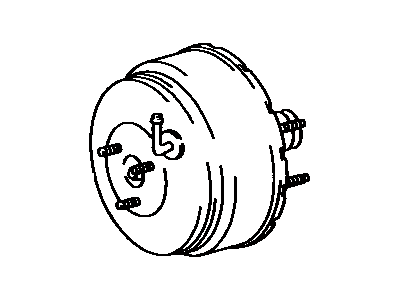

Toyota Corolla Power Booster
Part Number: 44610-12G00
$797.21 MSRP: $1168.33
You Save: $371.12 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Brake Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Corolla | Base, L, LE, S | 4 Cyl 1.8 L GAS
View related parts

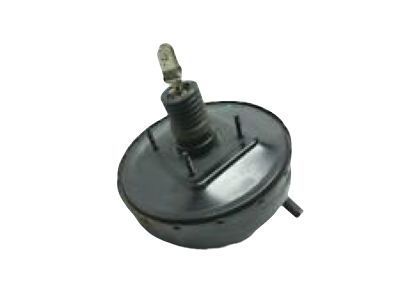

Toyota Corolla Brake Booster
Part Number: 47210-12591
$1030.34 MSRP: $1509.98
You Save: $479.64 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Brake; Booster Assembly; Brake Booster Assembly, W/Master Cylinder
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Corolla | Hybrid LE, Hybrid SE, Hybrid XLE, LE, SE, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS
View related parts

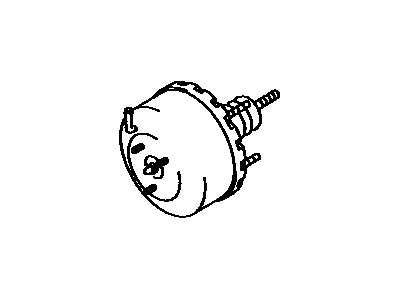

Toyota Corolla Brake Booster
Part Number: 44610-02020
$607.11 MSRP: $889.72
You Save: $282.61 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Manufacturer Note: (L)
- Replaces: 44610-1E590
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2002 Toyota Corolla | CE, LE, S, VE | 4 Cyl 1.8 L GAS
View related parts

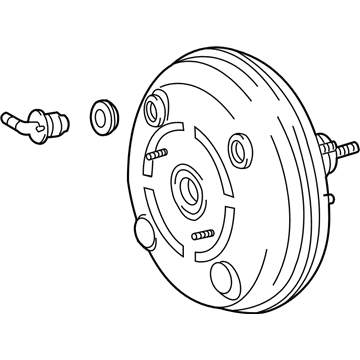

Toyota Corolla Brake Booster
Part Number: 44610-02030
$632.00 MSRP: $926.21
You Save: $294.21 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Manufacturer Note: W(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2002 Toyota Corolla | CE, LE, S, VE | 4 Cyl 1.8 L GAS
View related parts

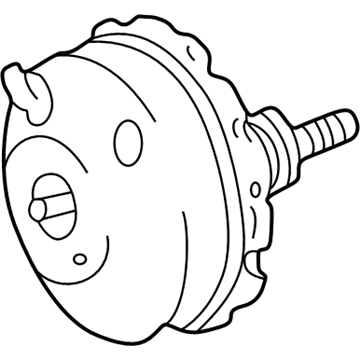

Toyota Corolla Brake Booster
Part Number: 44610-02210
$670.66 MSRP: $982.86
You Save: $312.20 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Corolla | CE, LE, S, XRS | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-02451
$630.59 MSRP: $924.15
You Save: $293.56 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Manufacturer Note: MEXICO SPEC
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009 Toyota Corolla | Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Power Booster
Part Number: 44610-12D21
$652.05 MSRP: $955.59
You Save: $303.54 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Brake Booster
- Replaces: 44610-12D20
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009 Toyota Corolla | Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-02840
$562.19 MSRP: $823.89
You Save: $261.70 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Corolla | 50th Anniversary Special Edition, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XSE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Power Booster
Part Number: 44610-02450
$689.02 MSRP: $1009.77
You Save: $320.75 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Brake Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009 Toyota Corolla | Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-02630
$574.19 MSRP: $841.48
You Save: $267.29 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Power Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Corolla | 50th Anniversary Special Edition, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XSE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Power Booster
Part Number: 44610-12A81
$641.94 MSRP: $940.78
You Save: $298.84 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Brake Booster
- Manufacturer Note: VSC-WITH(W/CUT OFF SWITCH)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010 Toyota Corolla | Base, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Power Steering Pump
Part Number: 44610-10050
Product Specifications
- Other Name: Booster Assembly, Brake; Brake Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1987 Toyota Corolla | Sport SR5 | 4 Cyl 1.6 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-12520
Product Specifications
- Other Name: Booster Assembly, Brake
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1987 Toyota Corolla | Base, DLX, FX, FX16, FX16 GTS, LE, LE Limited, Sport DLX | 4 Cyl 1.6 L GAS, 4 Cyl 1.8 L DIESEL
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-12740
Product Specifications
- Other Name: Booster Assembly, Brake
- Manufacturer Note: MASTER CYLINDER GASKET:2 HOLES
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Corolla | DLX, DLX All Trac, FX, FX16, FX16 GTS, GTS, LE, SR5, SR5 All Trac | 4 Cyl 1.6 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-12750
Product Specifications
- Other Name: Booster Assembly, Brake
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1992 Toyota Corolla | Base, DLX, DLX All Trac, LE | 4 Cyl 1.6 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-16070
Product Specifications
- Other Name: Booster Assembly, Brake
- Manufacturer Note: JKC
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1990 Toyota Corolla | Base, DLX, DLX All Trac, FX, FX16, FX16 GTS, GTS, LE, SR5, SR5 All Trac | 4 Cyl 1.6 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-17020
Product Specifications
- Other Name: Booster Assembly, Brake
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1987 Toyota Corolla | Sport DLX, Sport GTS, Sport SR5 | 4 Cyl 1.6 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-1A500
Product Specifications
- Other Name: Booster Assembly, Brake
- Manufacturer Note: (J)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1997 Toyota Corolla | Base, CE, DX, LE | 4 Cyl 1.6 L GAS, 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-1E210
Product Specifications
- Other Name: Booster Assembly, Brake; Power Booster
- Manufacturer Note: W(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-1999 Toyota Corolla | CE, LE, VE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla Brake Booster
Part Number: 44610-1A560
Product Specifications
- Other Name: Booster Assembly, Brake
- Manufacturer Note: W(ABS)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1997 Toyota Corolla | Base, CE, DX, LE | 4 Cyl 1.6 L GAS, 4 Cyl 1.8 L GAS

| Page 1 of 2 |Next >

1-20 of 24 Results

Toyota Corolla Brake Booster

Choose genuine Brake Booster that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Brake Booster for your Toyota Corolla? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Corolla parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Corolla Brake Booster is a very important part that minimizes the amount of force required to engage the brakes of this car. This way the vacuum chamber of the brake booster increases the amount of force which is applied by the driver on the brake pedal, and thus the braking is more efficient. There are two types of boosters used in Corolla vehicles: vacuum operated boosters AND hydraulic boosters. In vacuum boosters, the principle used is engine vacuum and pressure and the drum type while hydraulic boosters make use of fluid pressure bringing in the familiar push rod type. The vacuum power boosters despite their effectiveness may sometimes develop a fault that will need repairing or replacing. Furthermore, performance brake boosters and power brake conversion kits are offered to the client, who desires to enhance the braking project significantly and bring more ease and luxury into a car.

Toyota Corolla Brake Booster Parts and Q&A

Brake Booster
44610-02210
Q: How to remove the Vacuum Brake Booster on Toyota Corolla?
A:
The Vacuum Brake Booster removal process starts with draining brake fluid while immediately cleaning painted surfaces touched by fluid. Start by removing the air cleaner cap sub-assembly followed by the air cleaner case sub-assembly after extracting the air cleaner element as well as the 3 bolts. Now separate the Brake Master Cylinder sub-assembly alone then detach the brake master cylinder push rod clevis. Discontinue the process of removal by removing the front wheel on the left-hand side. The essential tool for disconnecting the front brake tube No. 5 is Special Service Tool: 09023-00101 which also allows you to slide the clip out from the vacuum hose connected to the brake booster assembly. Untangle and relocate both brake tubes that are attached by the clamp. First take off four nuts and clevis connecting the push rod before pulling out the brake booster assembly off the car. To finish disconnect the brake booster gasket and check valve assembly with grommet from the brake booster assembly.
Power Booster
44610-12D21
Q: How to install the vacuum brake booster on Toyota Corolla?
A:
The first step to install the vacuum brake booster starts with partially tightening the Brake Master Cylinder push rod clevis by attaching the lock nut to the brake booster assembly and clevis before the brake pedal height adjustment and tight full lock nut afterwards. After placing the new brake booster gasket onto the brake booster assembly it should be connected to the body using four nuts tightened to 13 Nm (132 kgf-cm, 10 ft-lbf). During this process the brake and fuel lines must not be damaged and the clamps should be engaged to secure the Brake Lines. The installation requires a 10 mm union nut wrench to secure the No. 5 front brake tube where the body grommet must be engaged for a torque of 15 Nm (155 kgf-cm, 11 ft-lbf) without the wrench or 14 Nm (143 kgf-cm, 10 ft-lbf) with the wrench while keeping the torque wrench at 250 mm (9.84 in.) and parallel to the union nut wrench. New check valve grommets must first be installed on the brake booster assembly before the vacuum check valve assembly. First slide the clip after connecting the vacuum hose and then attach the brake master cylinder push rod clevis followed by installing the brake pedal return spring and the front wheel LH with a torque of 103 Nm (1050 kgf-cm, 76 ft-lbf). After installing the brake master cylinder sub-assembly the technician must connect the clutch tube for manual transaxle and fill the reservoir with brake fluid and perform a bleeding process on the clutch line and brake master cylinder and brake line and brake actuator (w/ VSC). Check for brake fluid leakage before inspecting the fluid reserve and the height of the brake pedal and its free movement and total extension distance. Finally, install the suspension tower damper assembly (w/ Front Strut Bar), outer cowl top panel (for TMC Made and except TMC Made), windshield Wiper Motor and link assembly, cowl top ventilator louver LH, center No. 1 cowl top ventilator louver, hood to cowl top seal, front wiper arm and blade assembly RH and LH, front wiper arm head cap, air cleaner case (for 2ZR-FE and 2AZ-FE), air cleaner cap sub-assembly (for 2ZR-FE and 2AZ-FE), and No. 2 cylinder head cover (for 2ZR-FE) and No. 1 engine cover sub-assembly (for 2AZ-FE).
