How to remove the Brake Light Switch on Toyota Camry?

The removal process of Brake Light Switch begins by removing the front door scuff plate followed by removing the cowl side trim sub-assembly. Detach the lower instrument panel finish panel LH as the first step before proceeding to remove the No. 1 instrument panel sub-assembly. The first procedure is to remove the lower instrument panel finish panel by disconnecting the Smart Key System; alternatively follow the same steps without removing the Smart Key System devices. To access the combination meter you should first uninstall the instrument cluster finish No. 1 panel before proceeding. In the last step disconnect the stop light switch assembly connector from the switch assembly, rotate the switch assembly counterclockwise, then extract it from its position.

How to Properly Install a Brake Light Switch on Toyota Camry?

The installation process for stop light switch requires users to insert the assembly until it reaches the cushion then use backing support to stop the pedal from entry. Use a quarter clockwise turn to bolt the stop light switch assembly at 1.5 Nm torque maximum before joining the connector to that assembly. Verification should be performed post-installation on the rod's position. Secure the combination meter and then position all components such as instrument cluster finish panel No. 1 along with lower instrument panel finish panels (with/without Smart Key System), No. 1 instrument panel sub-assembly, lower instrument panel finish panel LH, cowl side trim sub-assembly, and front door scuff plate to their correct positions with proper alignment.

OEM Toyota Camry Brake Light Switch

Brake Lamp Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Brake Light Switches found

View related parts

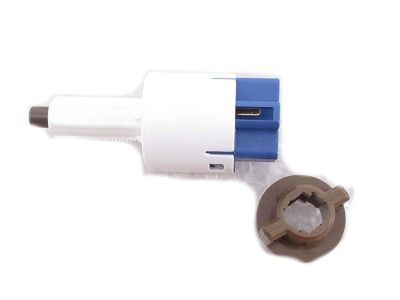

Toyota Camry Stoplamp Switch
Part Number: 84340-42010
$34.88 MSRP: $48.55
You Save: $13.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch; Stoplight Switch
- Replaces: 84340-32090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-2001 Toyota Camry | CE, DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Switch Assembly, Stop Lamp
Part Number: 84340-69075
$43.61 MSRP: $60.69
You Save: $17.08 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake Light Switch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Camry | Base, Hybrid, LE, SE, XLE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-69025
$43.25 MSRP: $60.20
You Save: $16.95 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch; Stoplight Switch
- Manufacturer Note: W(CRUISE CONTROL)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Camry | Hybrid | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Camry Switch Assembly, Stop Lamp
Part Number: 84340-69015
$60.54 MSRP: $84.98
You Save: $24.44 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Brake Light Switch
- Replaces: 84340-09010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Camry | Base, CE, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-49085
$34.64 MSRP: $48.22
You Save: $13.58 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2019 Toyota Camry | LE | 4 Cyl 2.5 L GAS
View related parts
Toyota Camry Switch Assembly, Stop Lamp
Part Number: 84340-49075
$34.64 MSRP: $48.22
You Save: $13.58 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake Light Switch
- Manufacturer Note: PRE-COLLISION SYSTEM-WITH
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2019 Toyota Camry | LE, SE | 4 Cyl 2.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-30030
$43.25 MSRP: $60.20
You Save: $16.95 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch; Stoplight Switch
- Manufacturer Note: MATSUSHITA
- Replaces: 84340-30040, 84340-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-09310
$16.73 MSRP: $23.29
You Save: $6.56 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch; Stoplight Switch
- Replaces: 84340-09040, 84340-09070, 84340-79015, 84340-09041, 84340-19026, 84340-19025
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2017 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, Special Edition, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Switch Assembly, Stop Lamp
Part Number: 84340-09291
$37.03 MSRP: $51.54
You Save: $14.51 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake Light Switch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Switch Assembly, Stop Lamp
Part Number: 84340-06010
$85.78 MSRP: $120.42
You Save: $34.64 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake Light Switch
- Replaces: 84340-32110, 84340-42020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-2006 Toyota Camry | Base, CE, DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-09300
$32.37 MSRP: $45.06
You Save: $12.69 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2020 Toyota Camry | L, LE | 4 Cyl 2.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-09280
$32.37 MSRP: $45.06
You Save: $12.69 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch
- Manufacturer Note: PRE-COLLISION SYSTEM-WITH
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2020 Toyota Camry | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-22100
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch
- Replaces: 84340-22110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Stoplamp Switch
Part Number: 84340-20030
Product Specifications
- Other Name: Switch Assembly, Stop Lamp; Brake Light Switch
- Manufacturer Note: W/*CRC
- Replaces: 84340-20020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984 Toyota Camry | DLX, LE | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L GAS

Toyota Camry Brake Light Switch

Choose genuine Brake Light Switch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Brake Light Switch for your Toyota Camry? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Camry parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Camry Brake Light Switch is an important part of the Toyota car that is used to actuate the brake light bulb whenever the break pedal is depressed in order to inform drivers on the road that a vehicle is slowing down or stopping. It is an important feature of transporting people and goods on the roads since it gives those at the back of the vehicle information of the movements being made. It is true that there could be Type or style difference of Brake Light Switch installed in different model of Camry or in different period of time, but function is function no matter what type or style it is.

Toyota Camry Brake Light Switch Parts and Q&A

Switch Assembly, Stop Lamp
84340-69015
Q: How to remove the Brake Light Switch on Toyota Camry?
A:
The removal process of Brake Light Switch begins by removing the front door scuff plate followed by removing the cowl side trim sub-assembly. Detach the lower instrument panel finish panel LH as the first step before proceeding to remove the No. 1 instrument panel sub-assembly. The first procedure is to remove the lower instrument panel finish panel by disconnecting the Smart Key System; alternatively follow the same steps without removing the Smart Key System devices. To access the combination meter you should first uninstall the instrument cluster finish No. 1 panel before proceeding. In the last step disconnect the stop light switch assembly connector from the switch assembly, rotate the switch assembly counterclockwise, then extract it from its position.
Switch Assembly, Stop Lamp
84340-69075
Q: How to Properly Install a Brake Light Switch on Toyota Camry?
A:
The installation process for stop light switch requires users to insert the assembly until it reaches the cushion then use backing support to stop the pedal from entry. Use a quarter clockwise turn to bolt the stop light switch assembly at 1.5 Nm torque maximum before joining the connector to that assembly. Verification should be performed post-installation on the rod's position. Secure the combination meter and then position all components such as instrument cluster finish panel No. 1 along with lower instrument panel finish panels (with/without Smart Key System), No. 1 instrument panel sub-assembly, lower instrument panel finish panel LH, cowl side trim sub-assembly, and front door scuff plate to their correct positions with proper alignment.
