How to install the steering angle sensor on Toyota Avalon?

The installation of the steering angle sensor begins with attaching it to the spiral cable through secure claw engagement which must avoid damaging the components. The next procedure requires an inspection of the spiral cable followed by a positioning of the front wheels in a straight ahead direction. Position the spiral cable correctly after its installation. Build the steering wheel assembly before putting in the steering pad and conduct a steering pad inspection. Install the cable to the negative battery terminal after the cable connection following a two-second cable disconnect period while maintaining straight-ahead wheel position. The last step includes a check of the SRS warning light to ensure operational integrity.

How to perform steering angle sensor zero point calibration on Toyota Avalon?

Steering angle sensor zero point calibration should be performed at times when replacing steering angle sensors or ECUs or when adjusting front wheel alignment of the steering wheel center point because of suspension, axle or steering part removal and installation or replacement. To start the process connect terminals Ts and E1 or Ts and CG using the Special Service Tools DLC1:09843-18020; DLC3: 09843-18040. You should put the ignition switch to ON position but avoid engine startup. A calibration will be performed on the vehicle only when the steering wheel off center angle remains within 3 degrees of this position. Additional tie rod adjustments are needed for angles that exceed this threshold. You must place the gear selector into position P before continuing to keep the VSC OFF button pushed and pressing the brake pedal once to twice while maintaining this action for two seconds. Preserve your hold on the VSC OFF switch after the VSC buzzer produces repeated beeps through its repeated sounding until the switch beep sequence ends before letting go of the switch. The completion of this operation can be confirmed by the VSC buzzer which emits continued sounds for another three seconds. A malfunction of the steering angle sensor could exist if the VSC buzzer fails to sound during proper execution of the procedure.

OEM Toyota Avalon Steering Angle Sensor

Steering Column Angle Position Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Steering Angle Sensors found

View related parts

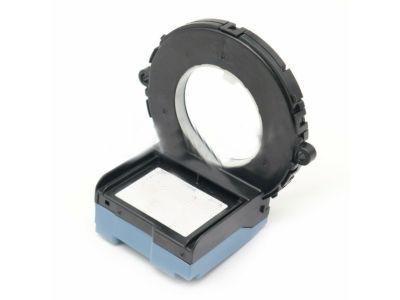

Toyota Avalon Position Sensor
Part Number: 8924B-06040
$344.83 MSRP: $492.34
You Save: $147.51 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering W/Lo; Steering Wheel Position Sensor; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor; Steering Sensor Assembly; Sensor, Steering
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

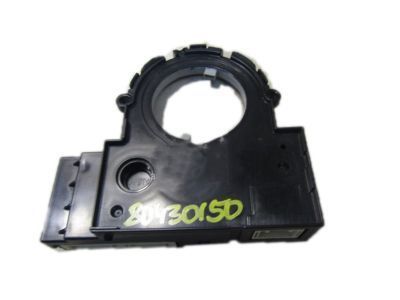

Toyota Avalon Sensor
Part Number: 89245-07011
$431.63 MSRP: $632.55
You Save: $200.92 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering; Steering Wheel Position Sensor
- Replaces: 89245-07010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2002 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS
View related parts

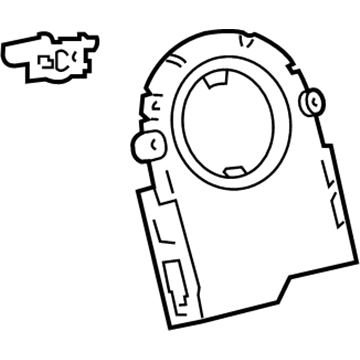

Toyota Avalon Angle Sensor
Part Number: 89245-07020
$373.63 MSRP: $547.56
You Save: $173.93 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering; Steering Wheel Position Sensor; Steering Wheel Speed Sensor; Steering Angle Sensor; Steering Sensor Assembly; Sensor
- Replaces: 89245-30080, 89245-48020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2012 Toyota Avalon | Base, Limited, Touring, XL, XLS | 6 Cyl 3.5 L GAS
View related parts

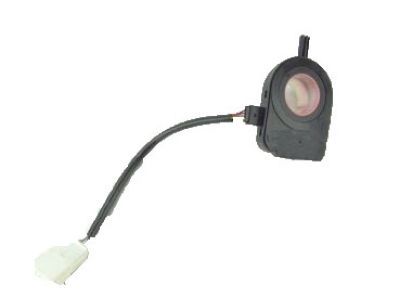

Toyota Avalon Sensor, Steering
Part Number: 8924B-50050
$404.28 MSRP: $592.48
You Save: $188.20 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering W/Lo; Steering Wheel Speed Sensor; Steering Angle Sensor
- Replaces: 8924B-33040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XLE, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

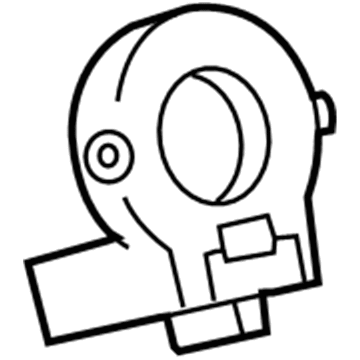

Toyota Avalon Angle Sensor
Part Number: 8924B-06010
$362.85 MSRP: $531.76
You Save: $168.91 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering W/Lo; Steering Wheel Position Sensor; Steering Wheel Speed Sensor; Steering Angle Sensor; Steering Sensor Assembly; Sensor, Steering
- Replaces: 89245-09030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota Avalon | Hybrid Limited, Hybrid XLE, Hybrid XLE Plus, Hybrid XLE Premium, Hybrid XLE Touring, Limited, Touring, XLE, XLE Plus, XLE Premium, XLE Touring, XLE Touring SE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

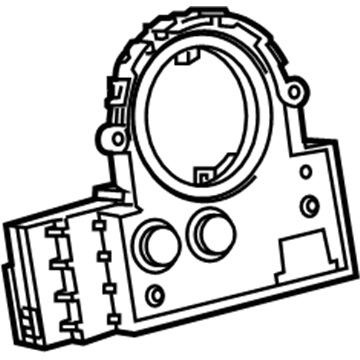

Toyota Avalon Sensor
Part Number: 89245-05010
Product Specifications
- Other Name: Sensor, Steering; Steering Wheel Position Sensor
- Manufacturer Note: W(VSC)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0 L GAS

Toyota Avalon Steering Angle Sensor

Choose genuine Steering Angle Sensor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Steering Angle Sensor for your Toyota Avalon? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Avalon Steering Angle Sensor is a complex part that improves and directs the car's motion, and as a result, gains a positive response from buyers in the auto industry. This sensor sends information of the position of the steering wheel at a particular time which is significant for the ESC and for timely braking in case of skidding or other influences hindering control of the vehicle during a turn. Selective for all the generations of Toyota Avalon, Steering Angle Sensor synchronizes with yaw and ABS wheel speed sensors to enhance sturdiness and driving performance. The Toyota Avalon Steering Angle Sensor is an advanced technology which calculates the rate of the steering wheel rotation, thus making fine adjustments in the power steering assistance leading to an improvement in response to steering as well as road feel. This integration does not just addresses comfort but also heightens performance putting the Toyota Avalon as one of the prime when it comes to full-size sedans. The Toyota Avalon has been for many years being valued for its features especially on safety aspects where it received a boost by featuring in the IIHS Top Safety Pick, which provides a firm background on the significance of the Steering Angle Sensor to the integrity of every automobile. The Toyota Avalon Steering Angle Sensor is one of the accents in the global automotive market because of its capacity to adjust the features of the car steering; it vividly describes what Toyota is seeking to be associated with - quality and innovation. All in all, the Toyota Avalon Steering Angle Sensor is a good tool for those drivers who want to drive a safe, long-lasting, and performing car.

Toyota Avalon Steering Angle Sensor Parts and Q&A

Angle Sensor
89245-07020
Q: How to install the steering angle sensor on Toyota Avalon?
A:
The installation of the steering angle sensor begins with attaching it to the spiral cable through secure claw engagement which must avoid damaging the components. The next procedure requires an inspection of the spiral cable followed by a positioning of the front wheels in a straight ahead direction. Position the spiral cable correctly after its installation. Build the Steering Wheel assembly before putting in the steering pad and conduct a steering pad inspection. Install the cable to the negative battery terminal after the cable connection following a two-second cable disconnect period while maintaining straight-ahead wheel position. The last step includes a check of the SRS warning light to ensure operational integrity.
Sensor
89245-07011
Q: How to perform steering angle sensor zero point calibration on Toyota Avalon?
A:
Steering angle sensor zero point calibration should be performed at times when replacing steering angle sensors or ECUs or when adjusting front wheel alignment of the Steering Wheel center point because of suspension, axle or steering part removal and installation or replacement. To start the process connect terminals Ts and E1 or Ts and CG using the Special Service Tools DLC1:09843-18020; DLC3: 09843-18040. You should put the ignition switch to ON position but avoid engine startup. A calibration will be performed on the vehicle only when the steering wheel off center angle remains within 3 degrees of this position. Additional tie rod adjustments are needed for angles that exceed this threshold. You must place the gear selector into position P before continuing to keep the VSC OFF button pushed and pressing the brake pedal once to twice while maintaining this action for two seconds. Preserve your hold on the VSC OFF switch after the VSC buzzer produces repeated beeps through its repeated sounding until the switch beep sequence ends before letting go of the switch. The completion of this operation can be confirmed by the VSC buzzer which emits continued sounds for another three seconds. A malfunction of the steering angle sensor could exist if the VSC buzzer fails to sound during proper execution of the procedure.
