How to install the rear spoiler on Toyota 4Runner?

Install the rear spoiler by striking waterproof rivets of diameter 4 mm through an air or hand riveter with a nose piece into the body panel to secure the 2 rear spoiler clips No. 1 on the back door panel. Position the rivets perpendicular to prevent mandrel bending during installation. Use two bolts to mount the center stop light assembly by torquing them to 2.5 Nm (25 kgf-cm, 22 in-lbf). Connect the center stop light connector followed by installing the spoiler through 2 bolts attached to 2 grommets while tightening them to 7.0 Nm (71 kgf-cm, 62 in-lbf).

How to replace the rear spoiler on Toyota 4Runner?

A replacement of the rear spoiler starts by removing 2 grommets and 2 bolts followed by removing the spoiler along with disconnecting the center stop lamp connector. Start by removing the center stop lamp assembly through removing its two securing bolts. The drill tip used for cutting rear spoiler clip No.1 must be smaller than Dia 4 mm (0.16 in.) while tape coverage should extend 5 mm (0.20 in.) to depth to avoid damaging the drill. Put the drill tip delicately on the rivet to cut its flanges while removing the rivet but handle both processes cautiously because the newly cut rivet will remain hot. Take away the 2 spoiler clips which are attached to the back door panel. The proper installation of rear spoiler clip No.1 requires an air riveter or hand riveter with a nose piece to strike waterproof Dia 4 mm rivets perpendicularly at the body panel to prevent mandrel bending. After installing the center stop lamp assembly with its two bolts tighten them until reaching 2.5 N.m of torque (25 kgf.cm or 22 in.lbf). You should connect the center stop lamp connector while also installing the spoiler with 2 bolts and 2 grommets before torquing to 7.0 N.m (71 kgf.cm, 62 in.lbf).

OEM Toyota 4Runner Spoiler

Spoiler Wing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Spoilers found

View related parts

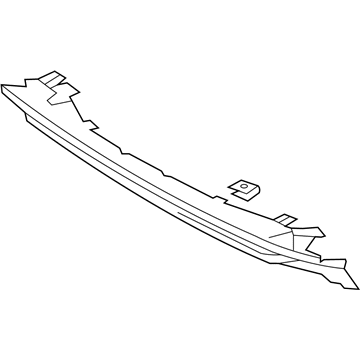

Toyota 4Runner Cover, Rear
Part Number: 76893-35051
$57.71 MSRP: $80.33
You Save: $22.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Rear Spoiler, N; Center High Mount Stop Light Bezel, Rear; Cover, Rear Spoiler
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2023 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 6 Cyl 4.0 L GAS
View related parts

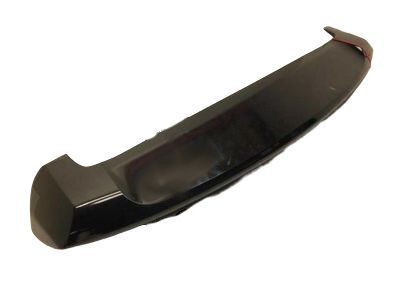

Toyota 4Runner Spoiler, Rear
Part Number: 76085-35903
$286.58 MSRP: $409.17
You Save: $122.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spoiler Sub-Assembly, Rear L/Pa; Spoiler, Rear; Spoiler Sub-Assembly, Rear
- Manufacturer Note: PAINT REQ.
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2023 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS
View related parts

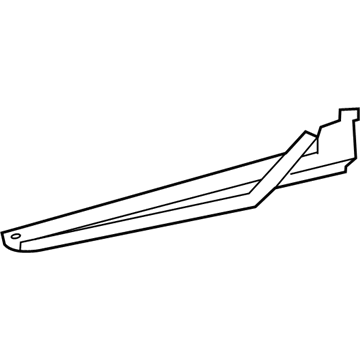

Toyota 4Runner Front Spoiler
Part Number: PZ321-35004
$981.11 MSRP: $1437.82
You Save: $456.71 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spoiler Sub-Assembly, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2021 Toyota 4Runner | Nightshade | 6 Cyl 4.0 L GAS
View related parts

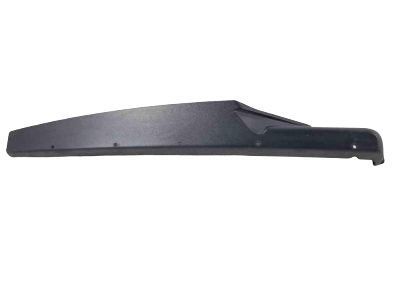

Toyota 4Runner Cover
Part Number: 76893-35050
$46.51 MSRP: $64.73
You Save: $18.22 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Center High Mount Stop Light Bezel, Rear; Cover, Rear Spoiler
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2011 Toyota 4Runner | Limited, SR5, Trail | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS
View related parts

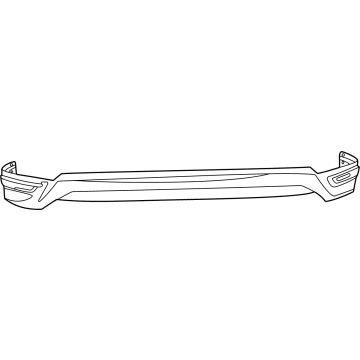

Toyota 4Runner Spoiler Center, Front
Part Number: 53285-35060
$223.32 MSRP: $318.84
You Save: $95.52 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Duct, Cool Air Intake; Spoiler, Front; Spoiler Sub-Assembly, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota 4Runner | Limited, SR5 | 4 Cyl 2.7 L GAS, 6 Cyl 4.0 L GAS
View related parts

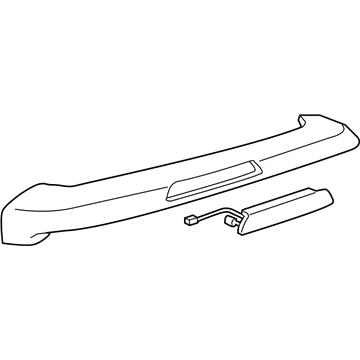

Toyota 4Runner Spoiler Assembly, Rear
Part Number: 76085-35904
Product Specifications
- Other Name: Spoiler Sub-Assembly, Rear; Spoiler, Rear
- Position: Rear
- Replaces: 76085-35070-E0, 76085-35070-F0, 76085-35070-J0, 76085-35070-J1, 76085-35070-B2, 76085-35070-J2, 76085-35070-A1, 76085-35070-B1, 76085-35050-C0, 76085-35050-A1, 76085-35070-J3
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, Sport, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota 4Runner Spoiler Assembly, Dark Green, Rear
Part Number: 76085-35050-G0
Product Specifications
- Other Name: Spoiler Sub-Assembly, Rear; Spoiler, Rear
- Manufacturer Note: REAR SPOILER-WITH,DK.GREEN MC.,6Q7
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2005 Toyota 4Runner | Limited, Sport, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota 4Runner Spoiler Assembly, Red, Rear
Part Number: 76085-35050-D0
Product Specifications
- Other Name: Spoiler Sub-Assembly, Rear; Spoiler, Rear
- Manufacturer Note: REAR SPOILER-WITH,RED M.M.,3P1
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2005 Toyota 4Runner | Limited, Sport, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS

Toyota 4Runner Spoiler

Choose genuine Spoiler that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Spoiler for your Toyota 4Runner? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota 4Runner parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota 4Runner Spoiler Parts and Q&A

Spoiler Assembly, Rear
76085-35904
Q: How to install the rear spoiler on Toyota 4Runner?
A:
Install the rear spoiler by striking waterproof rivets of diameter 4 mm through an air or hand riveter with a nose piece into the body panel to secure the 2 rear spoiler clips No. 1 on the back door panel. Position the rivets perpendicular to prevent mandrel bending during installation. Use two bolts to mount the center stop light assembly by torquing them to 2.5 Nm (25 kgf-cm, 22 in-lbf). Connect the center stop light connector followed by installing the spoiler through 2 bolts attached to 2 grommets while tightening them to 7.0 Nm (71 kgf-cm, 62 in-lbf).
Spoiler Assembly, Dark Green, Rear
76085-35050-G0
Q: How to replace the rear spoiler on Toyota 4Runner?
A:
A replacement of the rear spoiler starts by removing 2 grommets and 2 bolts followed by removing the spoiler along with disconnecting the center stop lamp connector. Start by removing the center stop lamp assembly through removing its two securing bolts. The drill tip used for cutting rear spoiler clip No.1 must be smaller than Dia 4 mm (0.16 in.) while tape coverage should extend 5 mm (0.20 in.) to depth to avoid damaging the drill. Put the drill tip delicately on the rivet to cut its flanges while removing the rivet but handle both processes cautiously because the newly cut rivet will remain hot. Take away the 2 spoiler clips which are attached to the back door panel. The proper installation of rear spoiler clip No.1 requires an air riveter or hand riveter with a nose piece to strike waterproof Dia 4 mm rivets perpendicularly at the body panel to prevent mandrel bending. After installing the center stop lamp assembly with its two bolts tighten them until reaching 2.5 N.m of torque (25 kgf.cm or 22 in.lbf). You should connect the center stop lamp connector while also installing the spoiler with 2 bolts and 2 grommets before torquing to 7.0 N.m (71 kgf.cm, 62 in.lbf).
