How to remove and replace the Power Steering Pump on Toyota 4Runner?

Beginner the procedure for replacing a power steering vane pump by draining all power steering fluid. You must start by removing the belt tensioner clockwise to release the vane pump V belt. Then move to remove the air cleaner assembly. The first step involves disconnecting the oil reservoir to pump hose No. 1 by removing its two clips followed by removing the two vacuum hoses and then removing the last clip which disconnects the hose. Then you should divide the pressure feed tube assembly by first unscrewing the union bolt and replacing the gasket to disconnect the pressure feed tube. The removal process ends with the vane pump assembly when all two bolts and nut come out followed by using a "torx" socket (E10) to remove the stud bolt.

How to install a Power Steering Pump on Toyota 4Runner?

The vane pump assembly requires a "torx" socket (E10) to install the stud bolt for securing the pump to the components and should be tightened to 22 Nm (224 kgf-cm, 16 ft-lbf). Follow up with installation of the 2 bolts and nut while torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). First loosen vane pump V belt tension through counterclockwise motion of the belt tensioner before securing the vane pump bolt. Use a new gasket to join the pressure feed tube assembly with a union bolt at its ends before torquing it to 50 Nm (510 kgf-cm, 37 ft-lbf). Install the oil reservoir onto pump hose No. 1 through hose clamping with one clip and double-hose securing using two clips. Follow the procedure to fit the new air cleaner system. Add power steering fluid and perform power steering fluid bleeding after the installation process. The final step should include an examination for power steering fluid leaks.

OEM Toyota 4Runner Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Power Steering Pumps found

View related parts

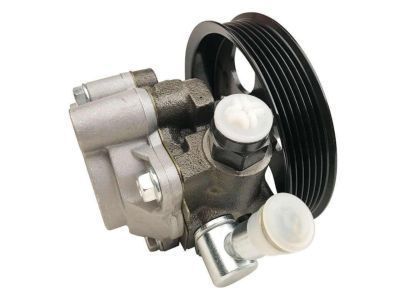

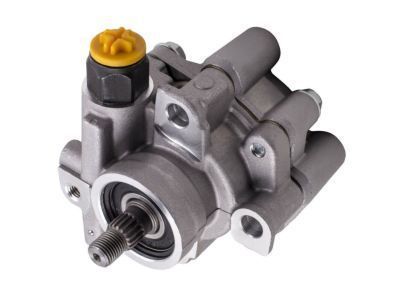

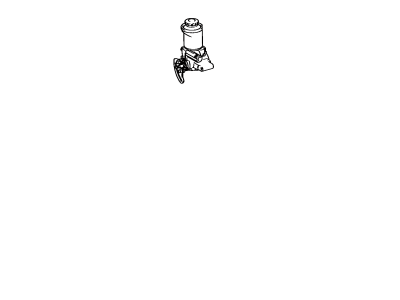

Toyota 4Runner Power Steering Pump
Part Number: 44320-35610
$287.16 MSRP: $410.00
You Save: $122.84 (30%)
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane; Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, Sport, SR5 | 8 Cyl 4.7 L GAS
View related parts

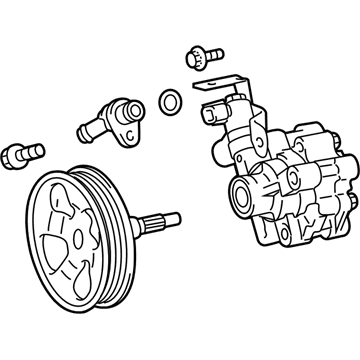

Toyota 4Runner Power Steering Pump
Part Number: 44320-35490
$347.39 MSRP: $495.99
You Save: $148.60 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2002 Toyota 4Runner | Base, Limited, SR5 | 6 Cyl 3.4 L GAS
View related parts

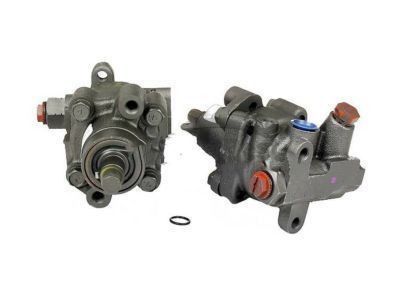

Toyota 4Runner Power Steering Pump
Part Number: 44310-35660
$341.06 MSRP: $499.82
You Save: $158.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Vane; Pump
- Replaces: 44310-35650
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, Sport, SR5 | 6 Cyl 4.0 L GAS
View related parts

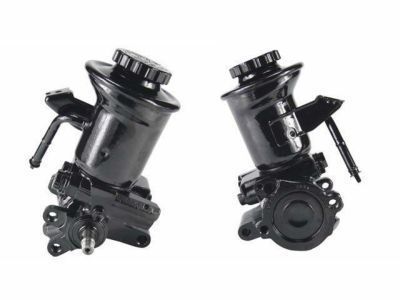

Toyota 4Runner Power Steering Pump
Part Number: 44310-60563
$317.22 MSRP: $452.91
You Save: $135.69 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Vane
- Replaces: 44310-60560, 44310-60561, 44310-60562
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010 Toyota 4Runner | SR5 | 4 Cyl 2.7 L GAS
View related parts

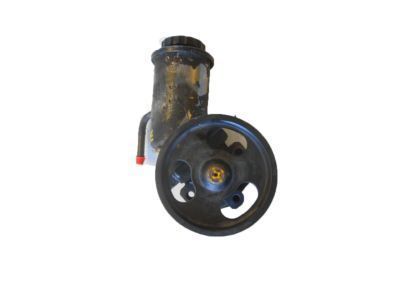

Toyota 4Runner Power Steering Pump
Part Number: 44310-60542
$313.14 MSRP: $447.09
You Save: $133.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Vane
- Replaces: 44310-60540, 44310-60541
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2023 Toyota 4Runner | 40th Anniversary Edition, Limited, Nightshade, SR5, SR5 Premium, Trail, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Venture | 6 Cyl 4.0 L GAS
View related parts

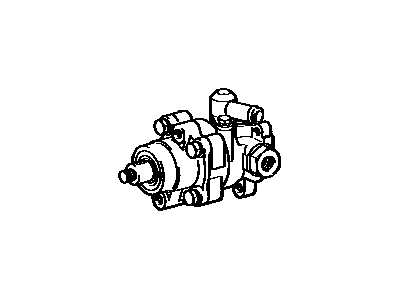

Toyota 4Runner Power Steering Pump
Part Number: 44320-35480
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota 4Runner | Base | 4 Cyl 2.7 L GAS
View related parts

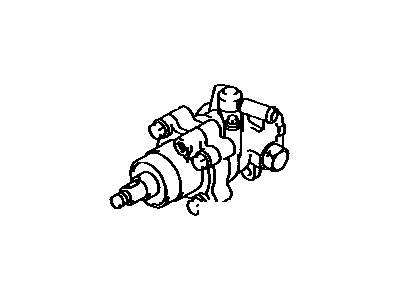

Toyota 4Runner Power Steering Pump
Part Number: 44320-35430
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1995 Toyota 4Runner | SR5 | 6 Cyl 3.0 L GAS
View related parts

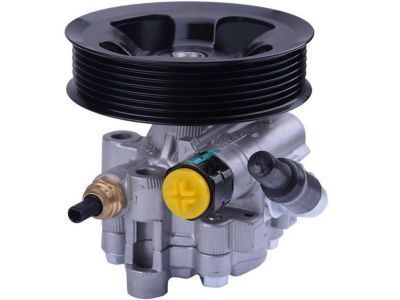

Toyota 4Runner Power Steering Pump
Part Number: 44320-35241
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Replaces: 44320-35240
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1989-1995 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35411
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Replaces: 44320-35410
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991 Toyota 4Runner | SR5 | 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35401
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Replaces: 44320-35400
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1989-1991 Toyota 4Runner | DLX, SR5 | 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35370
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Manufacturer Note: COLD SPEC
- Replaces: 44320-35350, 44320-35351, 44320-35270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990 Toyota 4Runner | SR5 | 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35361
Product Specifications
- Other Name: Pump Assembly, L/Pulley
- Replaces: 44320-35220, 44320-35222, 44320-35221
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota 4Runner | DLX, SR5 | 6 Cyl 3.0 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35140
Product Specifications
- Other Name: Pump Assembly, Vane L/Pu; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1990 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35120
Product Specifications
- Other Name: Pump Assembly, L/Pulley; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1988 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS
View related parts
Toyota 4Runner Power Steering Pump
Part Number: 44320-35022
Product Specifications
- Other Name: Pump Assembly, Vane L/Pu; Pump Assembly, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1987 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4 L GAS

Toyota 4Runner Power Steering Pump

Choose genuine Power Steering Pump that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Power Steering Pump for your Toyota 4Runner? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota 4Runner parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota 4Runner Power Steering Pump Parts and Q&A

Power Steering Pump
44320-35610
Q: How to remove and replace the Power Steering Pump on Toyota 4Runner?
A:
Beginner the procedure for replacing a power steering vane pump by draining all power steering fluid. You must start by removing the belt tensioner clockwise to release the vane pump V belt. Then move to remove the air cleaner assembly. The first step involves disconnecting the oil reservoir to pump hose No. 1 by removing its two clips followed by removing the two vacuum hoses and then removing the last clip which disconnects the hose. Then you should divide the pressure feed tube assembly by first unscrewing the union bolt and replacing the gasket to disconnect the pressure feed tube. The removal process ends with the vane pump assembly when all two bolts and nut come out followed by using a "torx" socket (E10) to remove the stud bolt.
Power Steering Pump
44310-35660
Q: How to install a Power Steering Pump on Toyota 4Runner?
A:
The vane pump assembly requires a "torx" socket (E10) to install the stud bolt for securing the pump to the components and should be tightened to 22 Nm (224 kgf-cm, 16 ft-lbf). Follow up with installation of the 2 bolts and nut while torquing them to 43 Nm (438 kgf-cm, 32 ft-lbf). First loosen vane pump V belt tension through counterclockwise motion of the belt tensioner before securing the vane pump bolt. Use a new gasket to join the pressure feed tube assembly with a union bolt at its ends before torquing it to 50 Nm (510 kgf-cm, 37 ft-lbf). Install the oil reservoir onto pump hose No. 1 through hose clamping with one clip and double-hose securing using two clips. Follow the procedure to fit the new air cleaner system. Add power steering fluid and perform power steering fluid bleeding after the installation process. The final step should include an examination for power steering fluid leaks.
