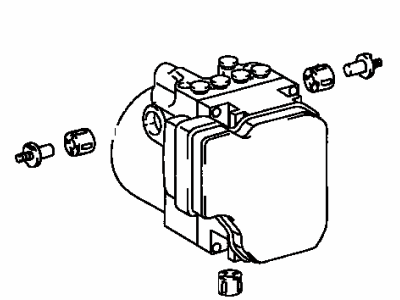

OEM 2004 Toyota RAV4 ABS Control Module

2004 Toyota RAV4 ABS Control Module Parts Questions & Experts Answers

• Q: How to Service and Repair the ABS Control Module on 2004 Toyota RAV4?

  A: You must start service and repair of the Hydraulic Control Assembly for Antilock Brakes by draining brake fluid before immediately washing off any painted surface that comes in contact with fluid. Special Service Tool: 09023-00100(s) helps disconnect brake lines when unattaching 6 brake tubes from the actuator with bracket at the specified torque rate of 15 Nm (155 kgf-cm, 11 ft. lbs.). Tags and memos for line reconnection should be used before disconnecting brake tubes. Remove the VSC actuator assembly by lifting the lock lever, disconnecting the actuator connector, removing the 2 bolts and nut and actuator from the actuator with bracket while ensuring 19 Nm (194 kgf-cm, 14 ft. lbs.) torque and being cautious of brake tubes. Use a torque tool to loosen the two nuts and actuator off the actuator bracket to 5.4 Nm (55 kgf-cm, 48 in. lbs.). Concurrently detach both cushion bolts and cushions. Implement the reverse removal procedure and verify the reservoir fluid level and inspect for leaks before performing a brake actuator test with a hand-held device.
