Toyota 85214-44140

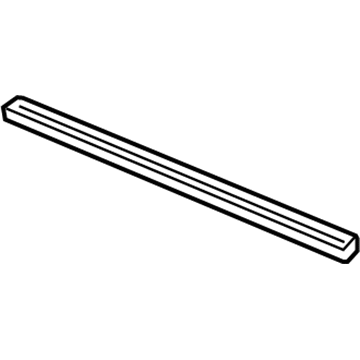

Rubber, Wiper, Driver Side

Start the front wiper rubber service by taking out the front wiper blade LH from the front wiper arm LH while protecting against front wiper arm bending that may harm the windshield surface. Remove the wiper rubber LH from the front wiper blade LH to begin followed by detachment of both wiper rubber backing plates affixed to the wiper rubber LH. Start by placing the correct orientation of the two wiper rubber backing plates onto the wiper rubber LH before mounting them. Install the wiper rubber LH while positioning the head section toward the arm axle and then attach the front wiper blade LH to this front wiper arm LH.

Yes, the same procedures apply to the RH side.

Attach the 2 wiper rubber backing plates to the wiper rubber LH, ensuring they are oriented correctly.

Yes, the same procedures apply to the RH side.

Install the front wiper blade LH onto the front wiper arm LH.

Position the wiper rubber LH so that the head part (the longer side) faces the arm axle side.

Insert the rear wiper rubber from the front end of the rear wiper blade to the rear end through the second claw, ensuring it protrudes from the rear end stopper after passing through the rear end side claw.

Next, take out the wiper rubber from the front wiper blade.

Slide the rear wiper rubber through the front end claw after pushing it through the rear end side claw until it sticks out from the rear end stopper.

Install the wiper rubber to the claw of the wiper blade as indicated.

First, attach the 2 packing plates to the rubber, ensuring they are facing the proper direction.

First, install the No. 1 and No. 2 rear wiper rubber backing plates in the correct direction. Insert the rear wiper rubber from the front end of the rear wiper blade to the rear end through the second claw, allowing it to stick out from the rear end stopper after pushing it through the rear end side claw, then slide the rubber through the front end claw.

Push the wiper blade straight toward the right side of the vehicle to secure it to the wiper arm.

Engage the claw to secure the wiper blade.

Pull the end of the wiper rubber protruding from the blade stopper, avoiding any forceful pulling that could deform the backing plates or damage the blade claw; pushing the rubber from the end toward the middle of the rear wiper blade can facilitate easier removal.

Engage the claw to install the wiper blade.

Finally, remove the 2 wiper rubber backing plates from the wiper rubber.

Pull the rear wiper blade straight away from the wiper arm toward the left side of the vehicle, taking care not to bend the rear wiper arm, as this could damage the windshield surface.
