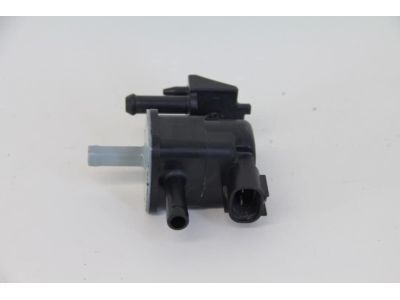

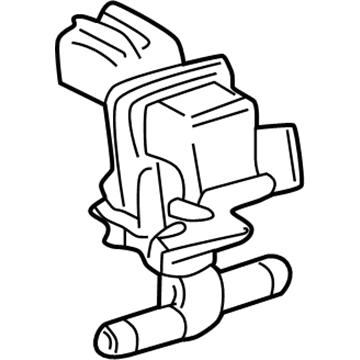

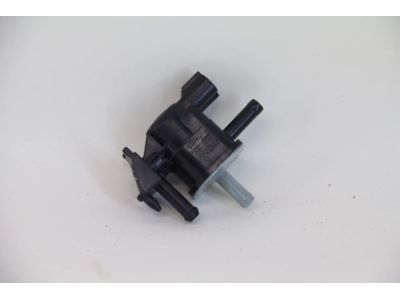

Toyota 90910-TC001
Purge Solenoid, Driver Side

You must begin the Canister Purge Valve service procedure by disconnecting the negative battery terminal cable before waiting for 90 seconds to steer clear of Air Bag pretensioning. Service of the Canister Purge Valve begins with the removal of the air cleaner cap through MAF meter connector separation and purge VSV connector along with two wire harness clamps detached from the air cleaner cap and two purge line hoses and the purge line hose released from its hose clamp. Unlock the two clamps which attach the air cleaner cap to the air cleaner case then loosen the hose clamp before removing the air cleaner cap. Remove the screw along with the purge VSV from the engine unit. Start by installing the purge VSV through its screw for installation. The air cleaner cap installation requires reattaching it with secured hose clamp and locking the two case clamps followed by hose connection between purge line and clamp before joining both purge line hoses. Wrap up air cleaner cap connections with wire harness clamps. To complete the procedure attach the purge VSV connector along with the MAF meter connector and reconnect the negative battery cable followed by system initialization steps because certain features need this reset after removing and reinstalling the cable from the battery.

The first step to service and repair the Canister Purge Valve of the 2ZR-FE emission control system requires removal of the No. 2 cylinder head cover. Begin by disconnecting the duty vacuum switching valve connector as well as the wire harness clamp and unfasten the two hoses before removing the duty vacuum switching valve but keep it away from falling while disassembling it. The service and repair of the Canister Purge Valve requires the removal of its retaining screw.

Installation of the Canister Purge Valve begins with attaching it using the screw followed by hose connection to the valve. The installation of the Canister Purge Valve connector and wire harness clamp occurs as the next step. You should install the No. 2 cylinder head cover last for the installation process.

Before assembly the Canister Purge Valve needs to be attached using a screw that should apply force equal to 3.4 Nm (35 kgf-cm, 30 in-lbf). You must join the vacuum tubes and wire harness clamp to the Canister Purge Valve connection point. The next step involves installing the No. 2 cylinder head cover after finishing the installation steps.

Before repairing the Canister Purge Valve of the 2ZR-FE emission control system start by taking off the No. 2 cylinder head cover. The service requires detachment of the duty vacuum switching valve connector and both vacuum hoses and wire harness clamp. The last step requires unwinding the screw which attaches the duty vacuum switching valve.

The first step to install the Canister Purge Valve for 2AZ-FE emission control system involves attaching the vacuum switching valve to the air cleaner hose. Begin by attaching the vacuum switching valve to the hose of the air cleaner. Then complete the connection of the 2 purge line hoses with the valve before clamping down the wire harness. The vacuum switching valve connector needs final installation.

Disconnect the duty vacuum switching valve connector and wire harness clamp.

Install the purge VSV with the screw.

Disconnect the duty vacuum switching valve connector and wire harness clamp.

Secure it with the screw.

Remove the vacuum switching valve.
